Compact twilight switch basic 8A EE701

EAN-Nr.
3250612257010
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

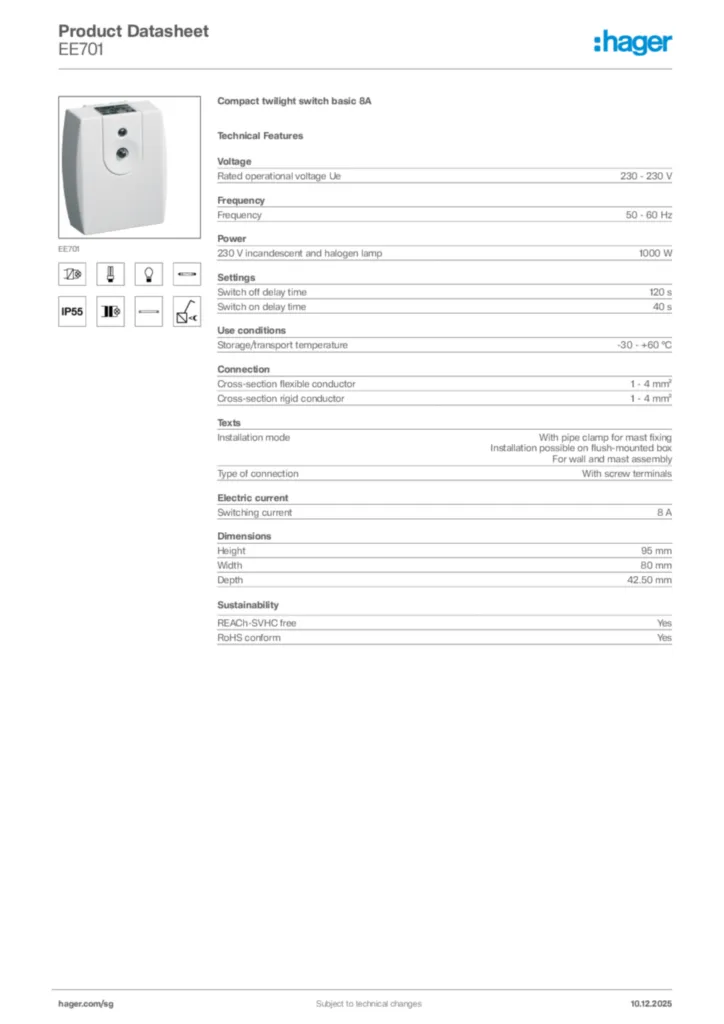

Compact twilight switch basic 8A

EE701

  • Technical characteristics
  • Environmental value
  • Documentations
  • More products

Technical characteristics

Voltage
  • Rated oper­a­tional voltage Ue
    230 - 230 V
Frequency
  • Frequency
    50 - 60 Hz
Power
  • 230 V incan­des­cent and halogen lamp
    1000 W
Settings
  • Switch off delay time
    120 s
  • Switch on delay time
    40 s
Use condi­tions
  • Stor­age/trans­port temper­ature
    -30 - +60 °C
Connec­tion
  • Cross-sec­tion flex­ible conductor
    1 - 4 mm²
  • Cross-sec­tion rigid conductor
    1 - 4 mm²
Texts
  • Install­a­tion mode
    With pipe clamp for mast fixing, Install­a­tion possible on flush-­mounted box, For wall and mast assembly
  • Type of connec­tion
    With screw terminals
Elec­tric current
  • Switching current
    8 A
Dimen­sions
  • Height
    95 mm
  • Width
    80 mm
  • Depth
    42,50 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration EE701
PDF
Hager RoHS report EE701
PDF
Compact twilight switch enhanced 16A
PDF
388,00 kB

Downloads

  • Image EE701  | Hager

    Product Image EE701

  • Installation manual

    Image Installation manual en-GB, fr-FR, de-DE, nl-NL 2017-03-16  | Hager

    Installation manual en-GB, fr-FR, de-DE, nl-NL 2017-03-16

    PDF
    2,36 MB
  • Declaration of conformity

    Image Declaration  | Hager

    Declaration

    Declaration of conformity International 2020-03-06

    PDF
    106,74 kB
    Image Declaration of conformity International 2023-02-13  | Hager

    Declaration of conformity International 2023-02-13

    PDF
    312,31 kB
