RCBO Electronic 2M 1P+N 6kA C-40A 30mA AC AD640B

Only available for export countries

Technical characteristics
Environmental value
Documentations
More products

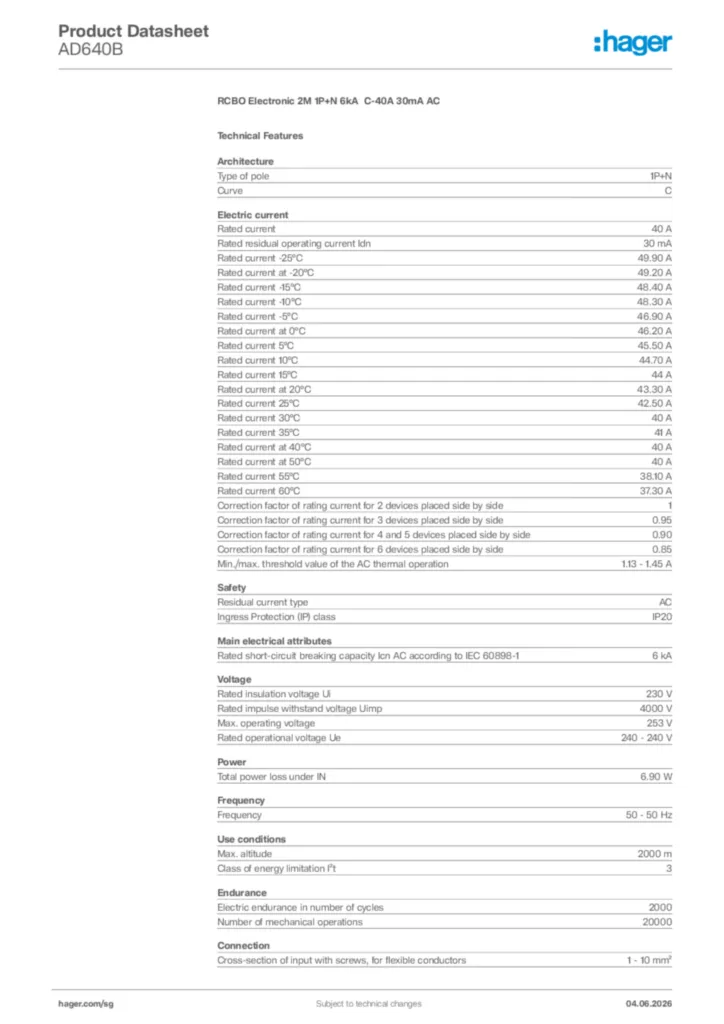

Download the sheet

Technical characteristics

Type of pole

1P+N
Curve

C

Rated current

40 A
Rated residual operating current Idn

30 mA
Rated current -25°C

49,90 A
Rated current at -20°C

49,20 A
Rated current -15°C

48,40 A
Rated current -10°C

48,30 A
Rated current -5°C

46,90 A
Rated current at 0°C

46,20 A
Rated current 5°C

45,50 A
Rated current 10°C

44,70 A
Rated current 15°C

44 A
Rated current at 20°C

43,30 A
Rated current 25°C

42,50 A
Rated current 30°C

40 A
Rated current 35°C

41 A
Rated current at 40°C

40 A
Rated current at 50°C

40 A
Rated current 55°C

38,10 A
Rated current 60°C

37,30 A
Correction factor of rating current for 2 devices placed side by side

1
Correction factor of rating current for 3 devices placed side by side

0,95
Correction factor of rating current for 4 and 5 devices placed side by side

0,90
Correction factor of rating current for 6 devices placed side by side

0,85
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Residual current type

AC
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

230 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

253 V
Rated operational voltage Ue

240 - 240 V

Total power loss under IN

6,90 W

Frequency

50 - 50 Hz

Max. altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-25 - 70 °C

Electric endurance in number of cycles

2000
Number of mechanical operations

20000

Cross-section of input with screws, for flexible conductors

1 - 10 mm²
Cross-section of input with screws, for massive conductors

1 - 16 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section of output with screws, for massive conductors

1 - 25 mm²

Nominal tightening torque

1,90 - 1,90 Nm

Number of modules

2

Height

84 mm
Width

35 mm
Depth

68 mm
