vector,IP65,8-10M,UV-stabil,DC/AC,with knockouts VE110H
EAN
3250616453081
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Functions
-
With a pipe-in leadYes
Configuration
-
Number of modules10
Main electrical features
-
Nominal voltage400 V
Voltage
-
Rated operational voltage in DC1000 V DC
Electric current
-
Rated current63 A
Dimensions
-
Depth of installed product114 mm
-
Internal depth114 mm
-
Height of installed product210 mm
-
Width of installed product237 mm
-
Width in division units10
-
Thickness of sidewall material2.5 mm
Cover, door
-
Identification od protection index65
-
InterlockableNo
-
Number of keylock of the door0
-
Cover typeClosed (plain)
-
Door lockingwithout
-
Door leavesingle
-
Cover typeDoor
-
Transparent cover or doorYes
Materials
-
Colourlight grey
-
RAL colourRAL 7035 - Light grey
-
Materialplastic
-
Type of surface treatmentuntreated
Installation, mounting
-
Suitable for outdoor useYes
Connection
-
Number of conduit inlets6
Settings
-
Enclosure typeDistributor empty cabinet
Equipment
-
Number of rows1
-
Quantity of section in width1
-
Quantity of rails1
-
Can be accessorizedYes
-
Number of openings for flange plates20
-
Extension possibleNo
-
Earthing terminal blockYes
-
Neutral terminal blockYes
-
Signal passing doorYes
Safety
-
IK protection code against mecanical impactsIK07
-
Protection classisol.class II
-
Glow wire testaccording EN 60695-2-11: 850°C
-
REACH conformNo
-
RoHS conformYes
Use conditions
-
Operating temperature-25…40 °C
Downloads
-
Product image
-
ProductNotice
Instruction manuals for VE110H
PDF4 MB -
User brochure
Weatherproof range brochure
PDF1004 KB -

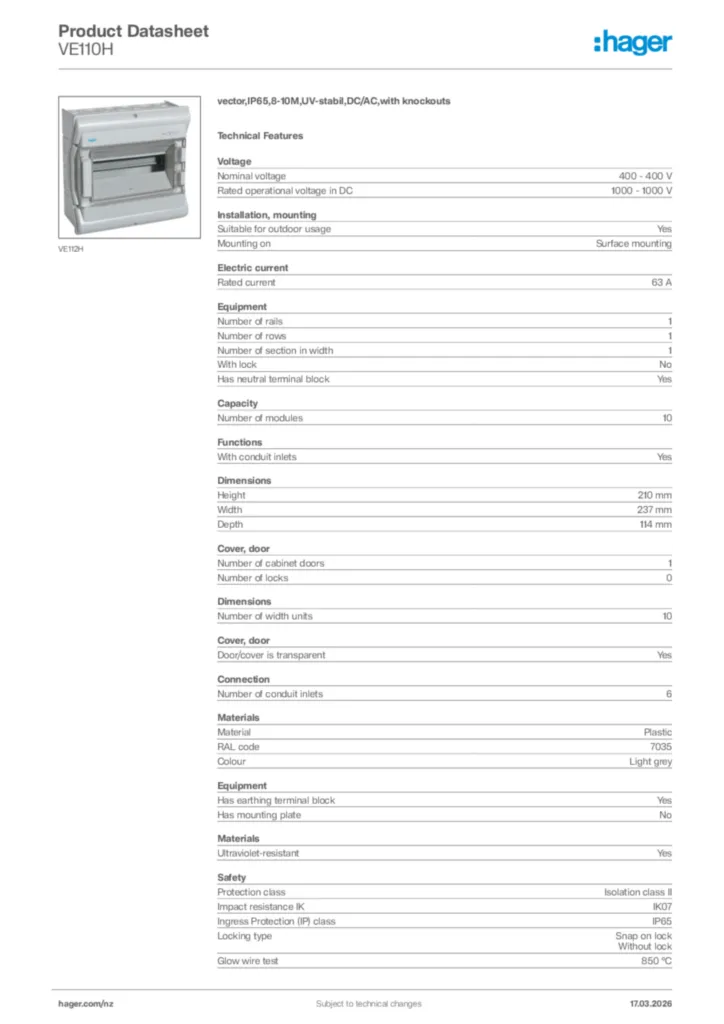

ProductDataSheet
