vector,IP65,12M,UV-stabil,DC/AC,with knockouts VE112H
EAN
3250616454088
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Functions
-
With a pipe-in leadYes
Configuration
-
Number of modules12
Main electrical features
-
Nominal voltage400 V
Voltage
-
Rated operational voltage in DC1000 V DC
Electric current
-
Rated current63 A
Dimensions
-
Depth of installed product151 mm
-
Internal depth151 mm
-
Height of installed product302 mm
-
Width of installed product310 mm
-
Width in division units12
-
Thickness of sidewall material2.5 mm
Cover, door
-
Identification od protection index65
-
InterlockableNo
-
Number of keylock of the door0
-
Cover typeClosed (plain)
-
Door lockingwithout
-
Door leavesingle
-
Cover typeDoor
-
Transparent cover or doorYes
Materials
-
Colourlight grey
-
RAL colourRAL 7035 - Light grey
-
Materialplastic
-
Type of surface treatmentuntreated
Installation, mounting
-
Suitable for outdoor useYes
Connection
-
Number of conduit inlets12
Settings
-
Enclosure typeDistributor empty cabinet
Equipment
-
Number of rows1
-
Quantity of section in width1
-
Quantity of rails1
-
Can be accessorizedYes
-
Number of openings for flange plates46
-
Extension possibleNo
-
Earthing terminal blockYes
-
Neutral terminal blockYes
-
Signal passing doorYes
Safety
-
IK protection code against mecanical impactsIK08
-
Protection classisol.class II
-
Glow wire testaccording EN 60695-2-11: 850°C
-
REACH conformNo
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature-25…40 °C
Downloads
-
Product image
-
ProductNotice
Instruction manuals for VE112H
PDF4 MB -
User brochure
Weatherproof range brochure
PDF1004 KB -

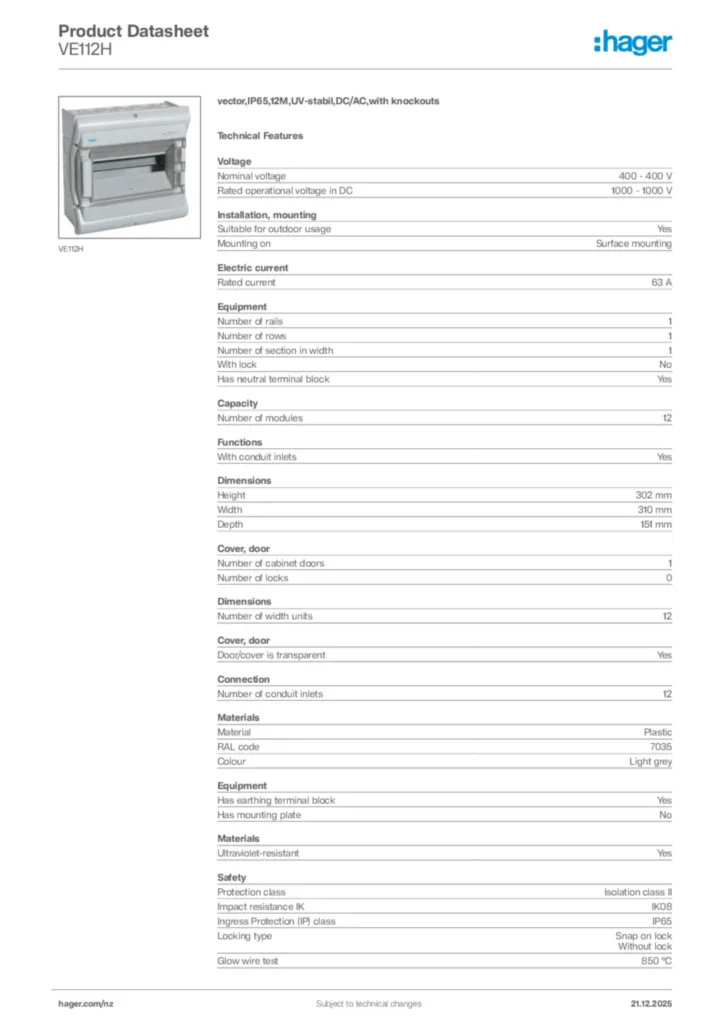

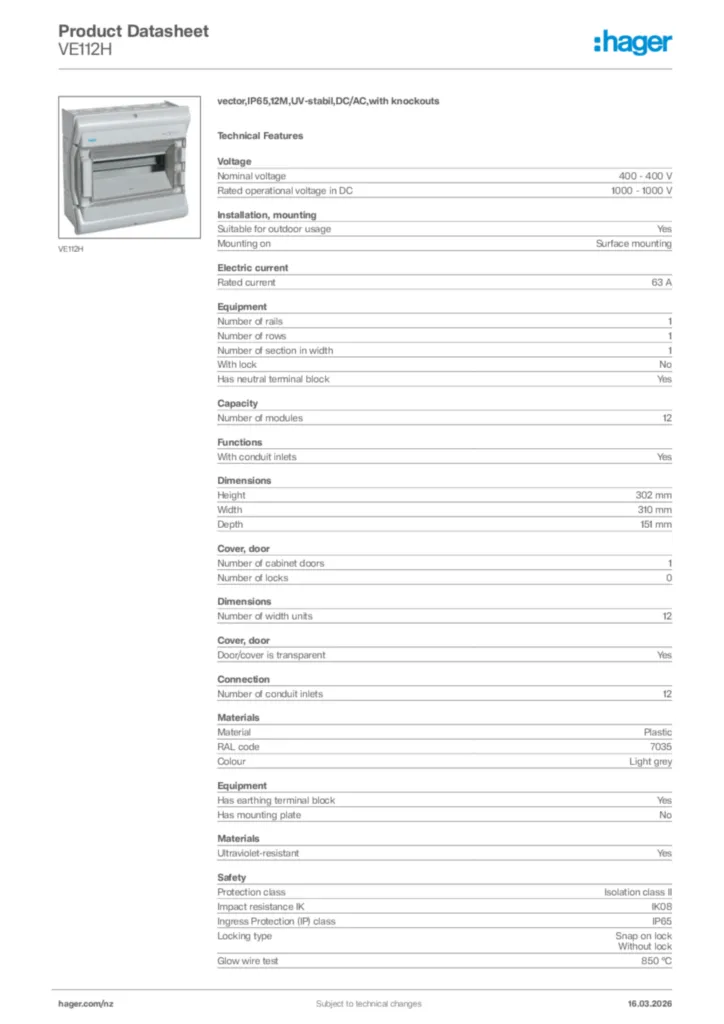

ProductDataSheet
