    • SPA412A
    EAN
    3250615664129
    Packaging
    1 Piece
    • Surge Protec­tion Devices (SPDs)

    SPD 4P monobloc 12.5kA class 1 with light indicator TT SPA412A

    Similar products :

    SPA412
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    SPD 4P monobloc 12.5kA class 1 with light indicator TT

    SPA412A

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Capa­city
    • Number of modules
      8
    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 230 V
    • Continuous oper­ating voltage Uc according to IEC 61643-1
      255 V
    • Voltage protec­tion level Up according to IEC 61643-1
      2,50 kV
    • Voltage protec­tion level Up N-PE IEC 61643-11
      2500 V
    • Voltage protec­tion level Up L-N (PEN)
      2,5 kV
    Elec­tric current
    • Max. over­cur­rent protec­tion device, parallel connec­tion (fuse)
      315 A
    • Max. over­cur­rent protec­tion device, series connec­tion (fuse)
      125 A
    • Follow current inter­rupting rating
      0,1 kA
    Dimen­sions
    • Height
      90 mm
    • Width
      144 mm
    • Depth
      68 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    • Protec­tion class
      Isol­a­tion class I
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 60 °C
    • Air humidity protec­tion
      5 - 95%
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Max. alti­tude
      2000 m
    Mater­ials
    • Product colour
      Light grey
    • RAL code
      7035
    • Material
      Ther­mo­plastic
    Network config­ur­a­tion
    • Network type
      TT, TN
    • Network TN
      Yes
    • Network TN-C
      No
    • Network DC
      No
    • Network IT
      No
    • Network TT
      Yes
    • Network TN-C-S
      No
    • Network TN-S
      No
    Equip­ment
    • With remote signalling contact
      No
    Connec­tion
    • Cross-sec­tion for rigid conductor, for protective conductor
      1,5 - 35 mm²
    • Cross-sec­tion for flex­ible conductor, for protective conductor
      1,5 - 50 mm²
    • Cross-sec­tion flex­ible conductor
      1.5 - 35 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 50 mm²
    • Number of connec­tions
      1
    Stand­ards
    • Require­ment class IEC 61643
      T1
    Frequency
    • Frequency
      50 - 60 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque
      3,60 - 3,60 Nm
    • Suit­able for indoor usage
      Yes
    Archi­tec­ture
    • Type of pole
      3P+N
    • Neutral posi­tion
      Left
    Connectivity
    • Mounting type
      DIN rail
    • Type of connec­tion
      Screw connec­tion
    Controls and indic­ators
    • With indic­ator lamp
      Yes
    Func­tions
    • Discon­nector indic­a­tion
      Optical
    Fuse
    • Fuse char­ac­ter­istics
      gG
    Internal use only
    • Number of half modules of 17,5 mm
      16
    Specific iden­ti­ficaton attrib­utes for Protec­tion
    • Filter Type product
      SPD

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    Halogen free Yes

    Certifications and documents

    REACH declaration SPA412A
    PDF
    Hager RoHS report SPA412A
    PDF

    Downloads

    • Product image

      Image SPA412A | Hager New Zealand

      Product Image SPA412A

    • Product datasheet

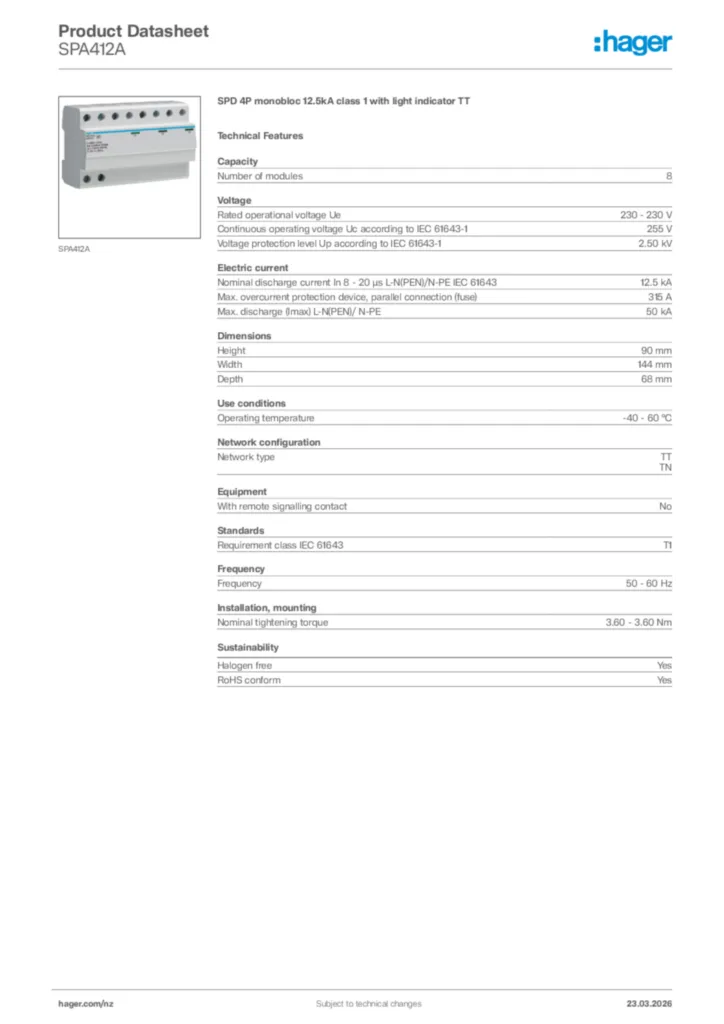

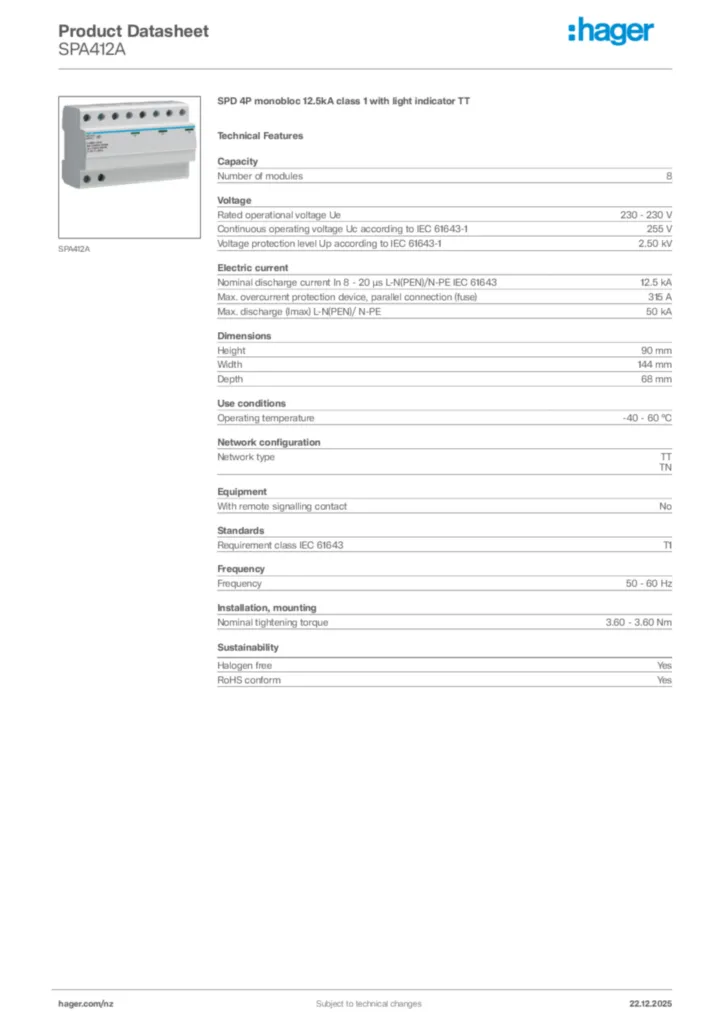

      Image Hager Product data sheet SPA412A | Hager New Zealand

      Hager Product data sheet SPA412A

      SPD 4P monobloc 12.5kA class 1 with light indicator TT

      PDF

    • Declaration of conformity

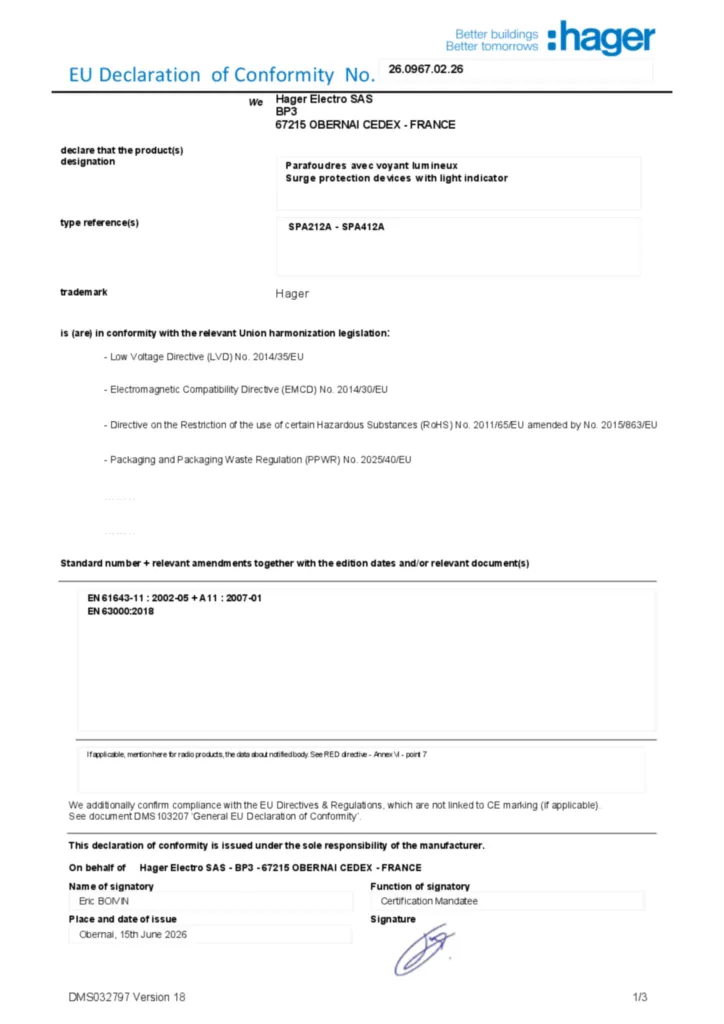

      Image Declaration of conformity en-US 2026-07-14 | Hager New Zealand

      Declaration of conformity en-US 2026-07-14

      PDF
      257,32 kB
