1-pole, 40A Modular Switch with Red Toggle SBR140
EAN
3250615510358
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliary device for distribution board devices 1 products available -
Phase separation functions 1 products available -
Locking interlocking functions 1 products available -
Terminal cover 1 products available

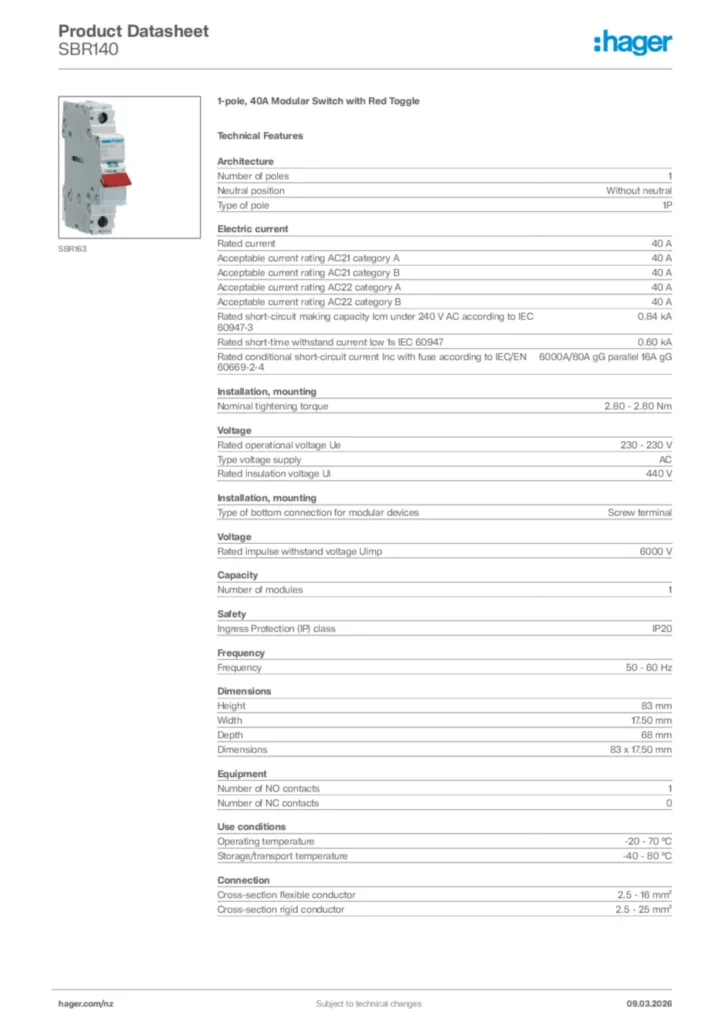

Technical properties
Architecture
-
Number of poles1
-
Neutral positionWithout neutral
-
Type of pole1P
Electric current
-
Rated current40 A
-
Breaking capacity 400 V AC23A846 A
-
Rated conditional short-circuit current Icc with gl-gG fuses0,60 kA
-
Acceptable current rating AC21 category A40 A
-
Acceptable current rating AC21 category B40 A
-
Acceptable current rating AC22 category A40 A
-
Acceptable current rating AC22 category B40 A
-
Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-30,84 kA
-
Rated short-time withstand current Icw 1s IEC 609470,60 kA
Installation, mounting
-
Nominal tightening torque2,80 - 2,80 Nm
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui440 V
-
Rated impulse withstand voltage Uimp6000 V
Capacity
-
Number of modules1
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Height83 mm
-
Width17,50 mm
-
Depth68 mm
Equipment
-
Number of NO contacts1
-
Number of NC contacts0
Use conditions
-
Operating temperature-20 - 70 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor2.5 - 16 mm²
-
Cross-section rigid conductor2.5 - 25 mm²
Endurance
-
Number of mechanical operations60000
-
Electrical durability at nominal load in AC21 in operating cycles5000
-
Electrical durability at nominal load in AC22 in operating cycles5000
Power
-
Total power loss under IN1,10 W
-
Power loss per pole at In1,10 W
Connectivity
-
Top connection alignment for modular devicesAligned terminal
