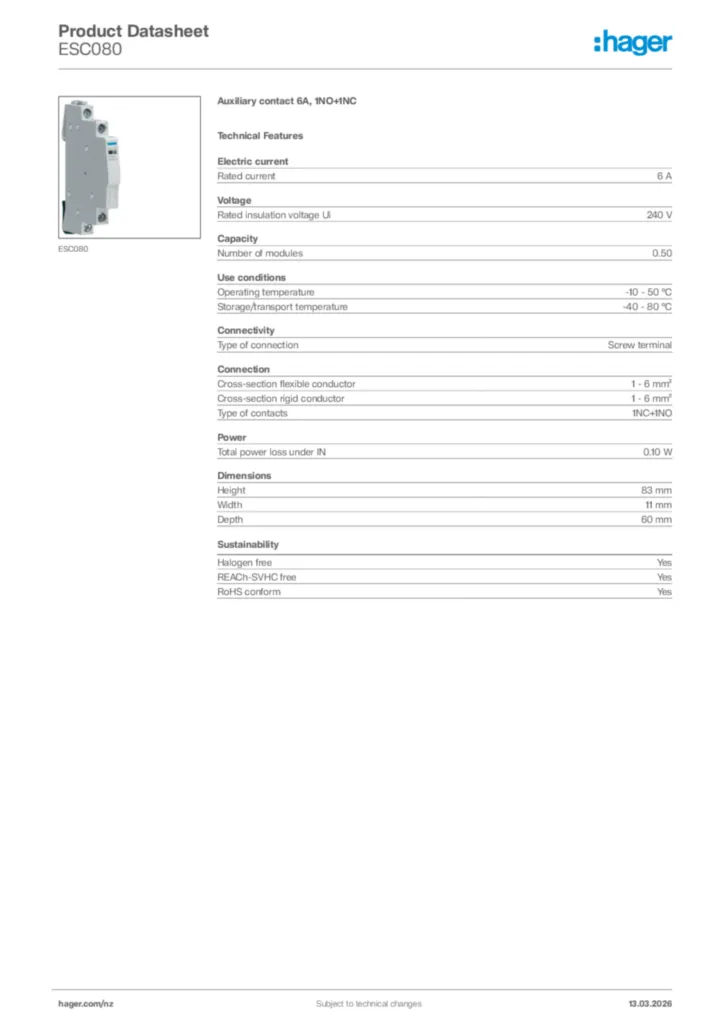

Auxiliary contact 6A, 1NO+1NC ESC080
EAN
3250612401895
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Configuration
-
Number of modules0.5
Main electrical features
-
Rated operational voltage Ue230 V
Voltage
-
Rated insulation voltage240 V
-
Rated impulse withstand voltage4 kV
Electric current
-
Acceptable current rating with AC16 A
-
Rated current6 A
Dimensions
-
Depth of installed product60 mm
-
Height of installed product83 mm
-
Width of installed product11 mm
Power
-
Total power loss under IN0.1 W
Endurance
-
Electric endurance in number of cycles30000
-
Number of mechanical operations1000000
Connection
-
Connection cross-sect. flexible conductor1 / 6mm²
-
Connection cross-sect. rigid cable1 / 6mm²
-
Number of contacts2
-
Type of contacts1NC+1NO
-
Type of connectionwith screw
-
Connection cross-section of the control cable solid1 / 10 mm²
Safety
-
Protection classisol.class II
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeYes
Use conditions
-
Operating temperature-10…50 °C
-
Storage/transport temperature-40…80 °C
