IP66 63A 3P SW NEUTRAL ISOLATOR JG463IN
EAN
3250617509787
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Number of poles4
-
Type of pole3P+N
Electric current
-
Rated current63 A
-
Acceptable current rating AC2163 A
-
Acceptable current rating AC21 category A63 A
-
Rated short-time withstand current Icw IEC 609470,75 kA
-
Acceptable current rating AC22 category A63 A
-
Acceptable current rating AC23 category A63 A
Voltage
-
Rated operational voltage Ue380 - 440 V
-
Rated insulation voltage Ui440 V
Installation, mounting
-
Nominal tightening torque2,50 - 2,50 Nm
Dimensions
-
Height170 mm
-
Width84 mm
-
Depth87 mm
Power
-
Rated operational power under 400 V AC AC2331200 W
Safety
-
Ingress Protection (IP) classIP66
Use conditions
-
Operating temperature-5 - 40 °C
Connection
-
Cross-section rigid conductor10 - 16 mm²
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

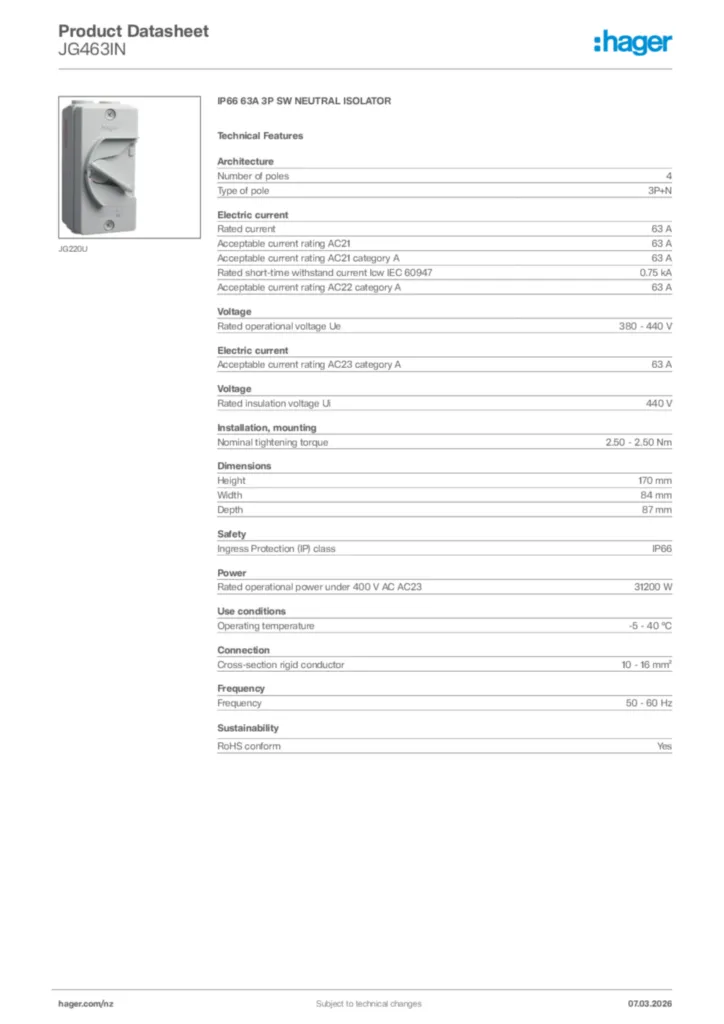

Hager Product data sheet JG463IN
