IP66 20A 2P ISOLATOR JG220IN
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Number of poles2
-
Type of pole1P+N
Electric current
-
Rated current20 A
-
Acceptable current rating AC2120 A
-
Acceptable current rating AC21 category A20 A
-
Rated short-time withstand current Icw IEC 609470,24 kA
-
Acceptable current rating AC22 category A20 A
-
Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-30,24 kA
-
Acceptable current rating AC23 category A20 A
-
Rated short-time withstand current Icw t=1 S 220 - 240 V AC according to IEC 60947 - 30,24 kA
Voltage
-
Rated operational voltage Ue250 - 250 V
-
Rated insulation voltage Ui440 V
Installation, mounting
-
Nominal tightening torque2 - 2 Nm
Dimensions
-
Height170 mm
-
Width84 mm
-
Depth87 mm
Power
-
Rated operational power under 400 V AC AC233300 W
Safety
-
Ingress Protection (IP) classIP66
Use conditions
-
Operating temperature-5 - 40 °C
Connection
-
Cross-section rigid conductor2.5 - 4 mm²
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

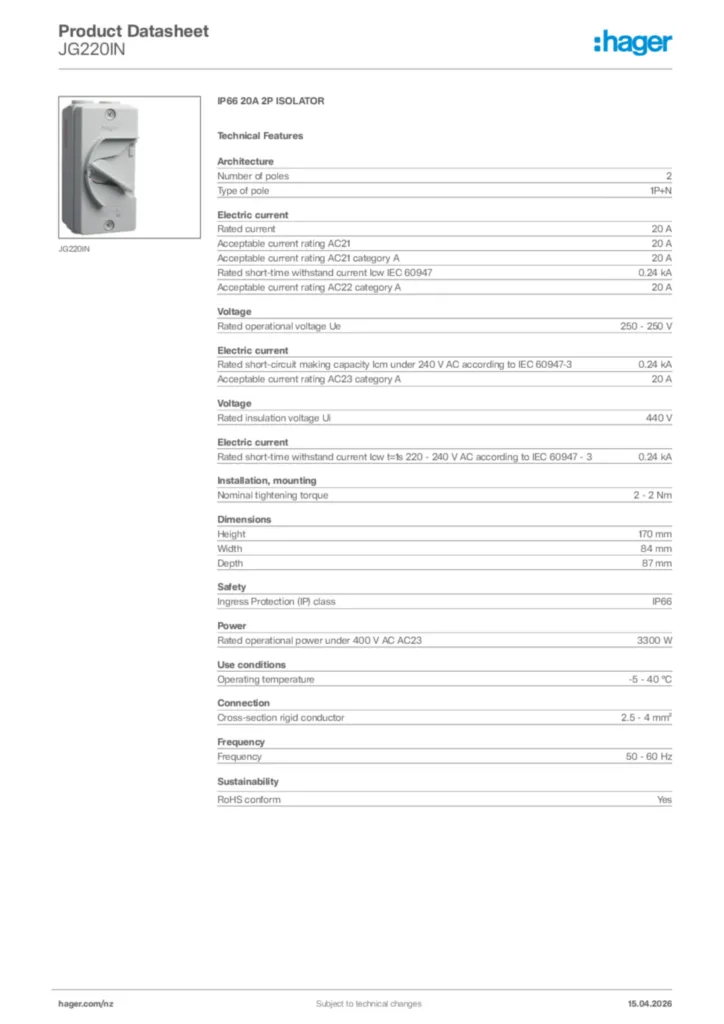

Product datasheet
Hager Product data sheet JG220IN
IP66 20A 2P ISOLATOR
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2021-08-25
PDF492,64 kB
