3 Pole

IP66 40A 3P ISOLATOR JG340IN

EAN

3250617509749

Packaging

1 Piece

Technical properties
Documentations
More products

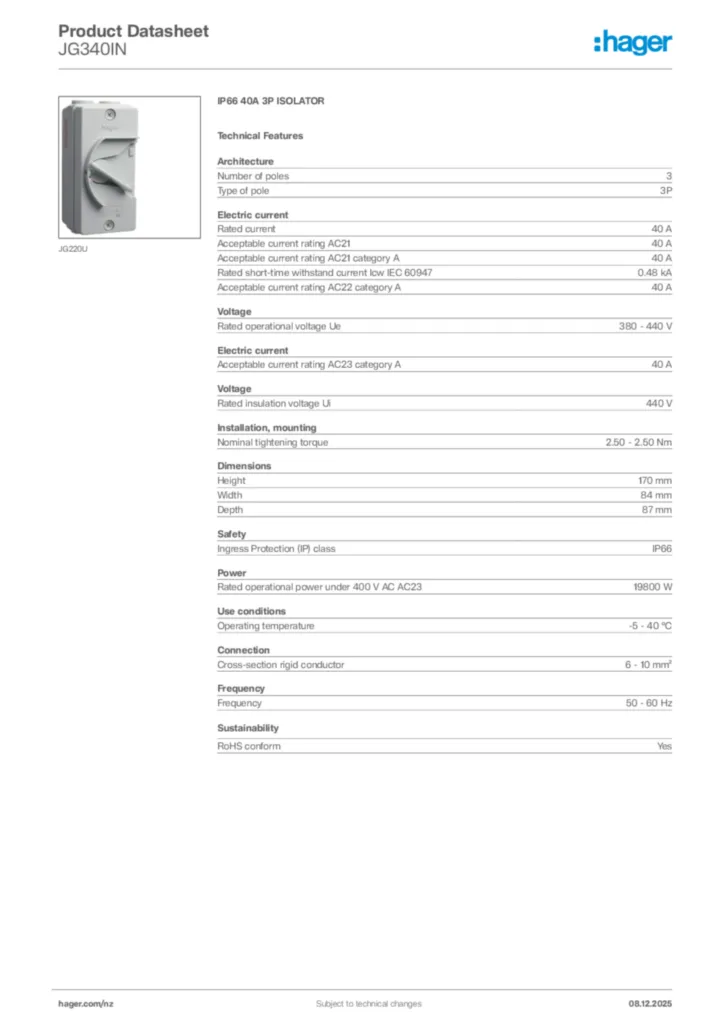

Download the data sheet

Technical properties

Type of order

Short thumb-grip
Number of poles

3 P
Type of case

in housing

Reversing switch

No
Version as main switch

Yes
Version as emergency stop installation

No
Version as safety switch

Yes
Version as maintenance-/service switch

Yes

Motor drive integrated

No

Rated operational voltage Ue

380 / 440 V

Rated insulation voltage

440 V
Rated impulse withstand voltage

4000 V

Acceptable current rating with AC22 category A

40 A
Rated current

40 A
Rated short-time withstand current Icw

480 A
Rated short-time withstand current Icw t=1s 380-415 V AC according IEC 60947-3

480 A
Rated operational current in AC21 category A

40 A
Rated operational current in AC21

40 A
Rated operational current in AC23 category A

40 A

Depth of installed product

87 mm
Height of installed product

170 mm
Width of installed product

84 mm

Frequency

50 to 60 Hz

Interlockable

Yes

Toggle colour

Grey

Tightening torque

2,5Nm
Suitable for front mounting center

No
Suitable for front mounting

No
Suitable for ground mounting

Yes

Connection cross-sect. rigid cable

6 / 10 mm²

Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as normally open contact

0
Number of auxiliary contacts as change-over contact

0
Motor drive optional

No

Standard text

IEC 60947-3
European directive WEEE

concerned

REACH conform

Yes
RoHS conform

Yes
