IP66 20A 3P ISOLATOR JG320IN
EAN
3250617509725
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Type of orderShort thumb-grip
-
Number of poles3 P
-
Type of casein housing
Functions
-
Reversing switchNo
-
Version as main switchYes
-
Version as emergency stop installationNo
-
Version as safety switchYes
-
Version as maintenance-/service switchYes
Controls and indicators
-
Motor drive integratedNo
Main electrical features
-
Rated operational voltage Ue380 / 440 V
Voltage
-
Rated insulation voltage440 V
-
Rated impulse withstand voltage4000 V
Electric current
-
Acceptable current rating with AC22 category A20 A
-
Rated current20 A
-
Rated short-time withstand current Icw240 A
-
Rated short-time withstand current Icw t=1s 380-415 V AC according IEC 60947-3240 A
-
Rated operational current in AC21 category A20 A
-
Rated operational current in AC2120 A
-
Rated operational current in AC23 category A20 A
Dimensions
-
Depth of installed product87 mm
-
Height of installed product170 mm
-
Width of installed product84 mm
Frequency
-
Frequency50 to 60 Hz
Cover, door
-
InterlockableYes
Materials
-
Toggle colourGrey
Installation, mounting
-
Tightening torque2Nm
-
Suitable for front mounting centerNo
-
Suitable for front mountingNo
-
Suitable for ground mountingYes
Connection
-
Connection cross-sect. rigid cable2.5 / 4 mm²
Equipment
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive optionalNo
Standards
-
Standard textIEC 60947-3
Safety
-
REACH conformYes
-
RoHS conformYes
Downloads
-
Product image
-
ProductNotice
User instructions for JGxxxIN
PDF955 KB -
User brochure
Make the Switch Brochure
PDF1 MB
Weatherproof range brochure
PDF1004 KB -

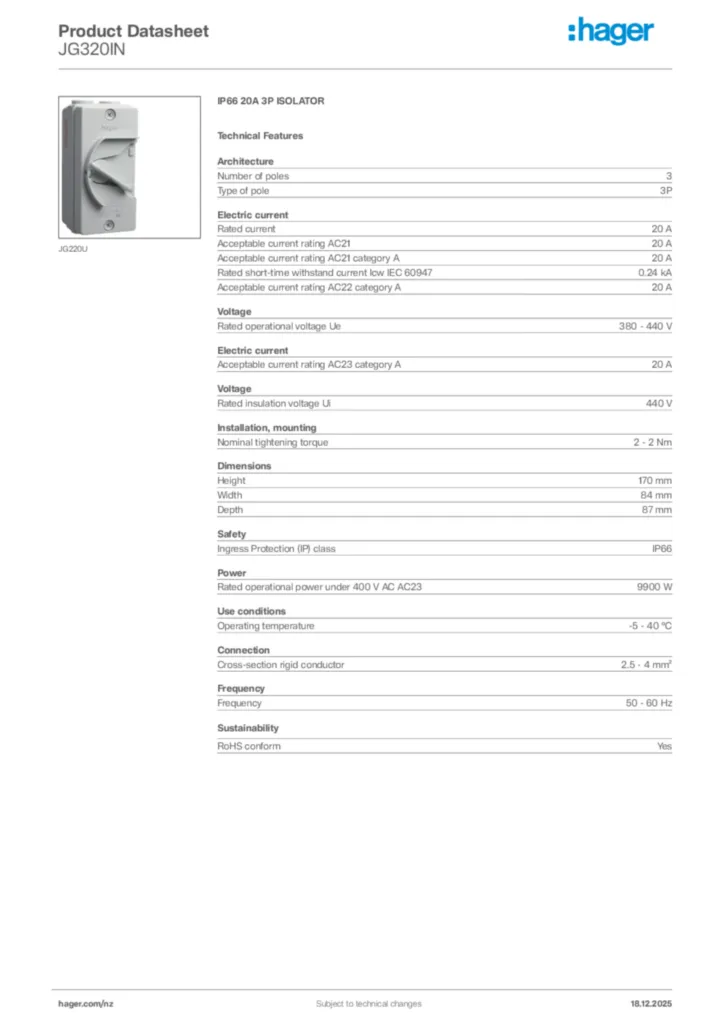

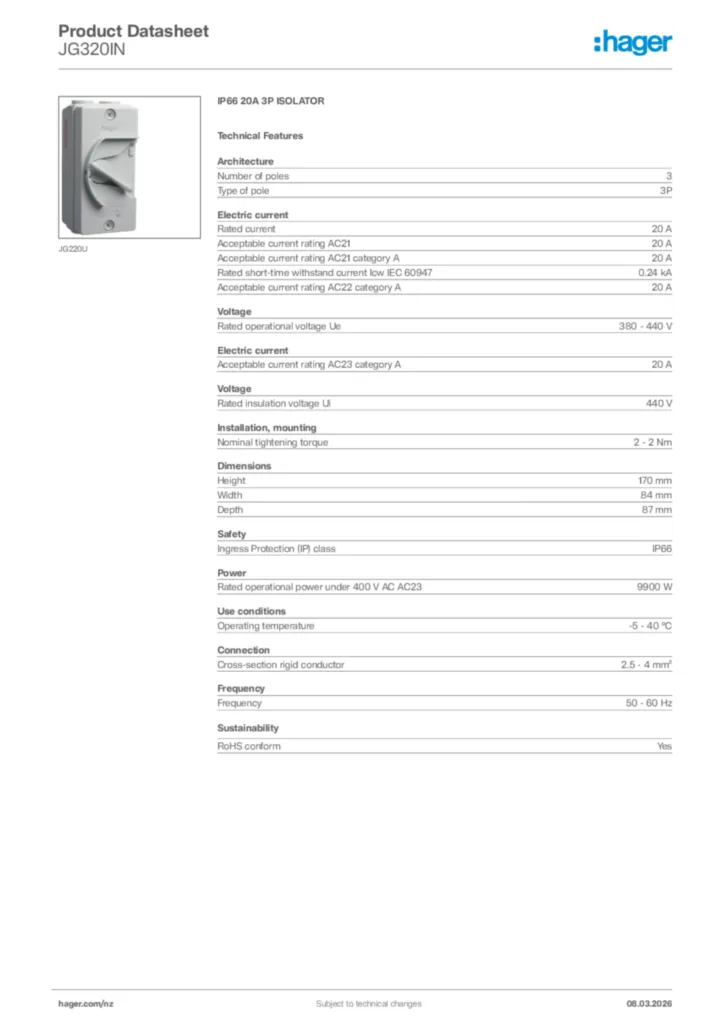

ProductDataSheet
