Contactor 63A, 4NO, 230V~50Hz ESC463
EAN
3250612401321
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Type of orderNot applicable
-
Number of poles4 P
Configuration
-
Number of modules3
Main electrical features
-
Rated operational voltage Ue400 V
-
Frequency50 Hz
Voltage
-
Rated insulation voltage440 V
-
DC control voltage0 V
-
Command voltage AC230 V
-
Rated impulse withstand voltage4 kV
Electric current
-
Rated current63 A
-
Thermal rated current outside of housings63 A
-
Acceptable current load with AC7 category A63 A
-
Acceptable current load with AC7 category B32 A
Dimensions
-
Depth of installed product60 mm
-
Height of installed product85 mm
-
Width of installed product54 mm
Power
-
Inrush power absorbed62.5 VA
-
Operating consumption5.7 VA
-
Total power loss under IN21.5 W
-
Power loss per contact5 W
-
Power dissipation per coil1.5 W
-
Contact rating with 230 V in AC7 category A11.6 kW
-
Contact rating with 230 V in AC7 category B3.3 kW
-
Contact rating with 400 V in AC7 category A35 kW
-
Contact rating with 400 V in AC7 category B10 kW
Tripping
-
Time of response when opening20 ms
-
Time of response when closing25 ms
Resistance
-
Winding resistance770 Ω
Endurance
-
Electric endurance in number of cycles30000
-
Number of mechanical operations100000
Fluorescent bulbs control
-
Max. power with fluorescent parallel lamps2100 VA
-
Fluorescent lamps in duo circuit4700 VA
-
Max. load fluorescent lamp3000 VA
Incandescent bulbs control
-
Max. power with incandescent lamps6500 W
Installation, mounting
-
Tightening torqueCoil: 2,5Nm ; Power: 3,5Nm
Connection
-
Connection cross-sect. flexible conductor1,5 / 16mm²
-
Connection cross-sect. rigid cable1,5 / 25mm²
-
Number of contacts4
-
Type of contacts4NO
-
Type of connectionwith screw
-
Connection cross-section of the control cable solid1 / 2.5 mm²
Equipment
-
Can be accessorizedYes
Use
-
Local operation/hand operationNo
Safety
-
Protection classisol.class II
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature-10…50 °C
-
Storage/transport temperature-40…80 °C
Downloads
-
Product image
-

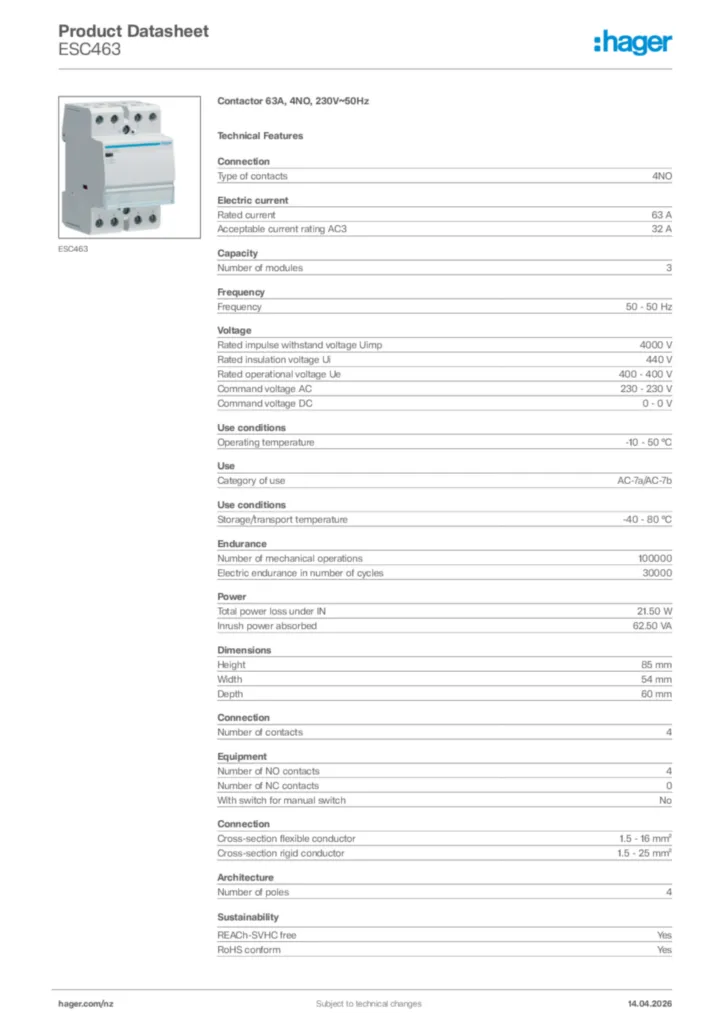

ProductDataSheet
