Humfree Contactor 63A, 2NO, 230V~50/60Hz ESC263S
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available -
Auxiliary device for distribution board devices 1 products available
Technical properties
Connection
-
Type of contacts2NO
-
Number of contacts2
-
Cross-section flexible conductor1.5 - 16 mm²
-
Cross-section rigid conductor1.5 - 25 mm²
Electric current
-
Rated current63 A
Capacity
-
Number of modules3
Frequency
-
Frequency50 - 50 Hz
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated insulation voltage Ui440 V
-
Rated operational voltage Ue400 - 400 V
-
Command voltage AC230 - 230 V
-
Command voltage DC0 - 0 V
Use conditions
-
Operating temperature-10 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Use
-
Category of useAC-7a/AC-7b
Endurance
-
Number of mechanical operations100000
-
Electric endurance in number of cycles30000
Texts
-
Safety hintHumfree contactors are not suitable for intensive use cases (powered 24/7) and in these cases industrial contactors must be used.
Power
-
Total power loss under IN14,50 W
-
Inrush power absorbed5,20 VA
Dimensions
-
Height85 mm
-
Width54 mm
-
Depth60 mm
Equipment
-
Number of NO contacts2
-
Number of NC contacts0
-
With switch for manual switchNo
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

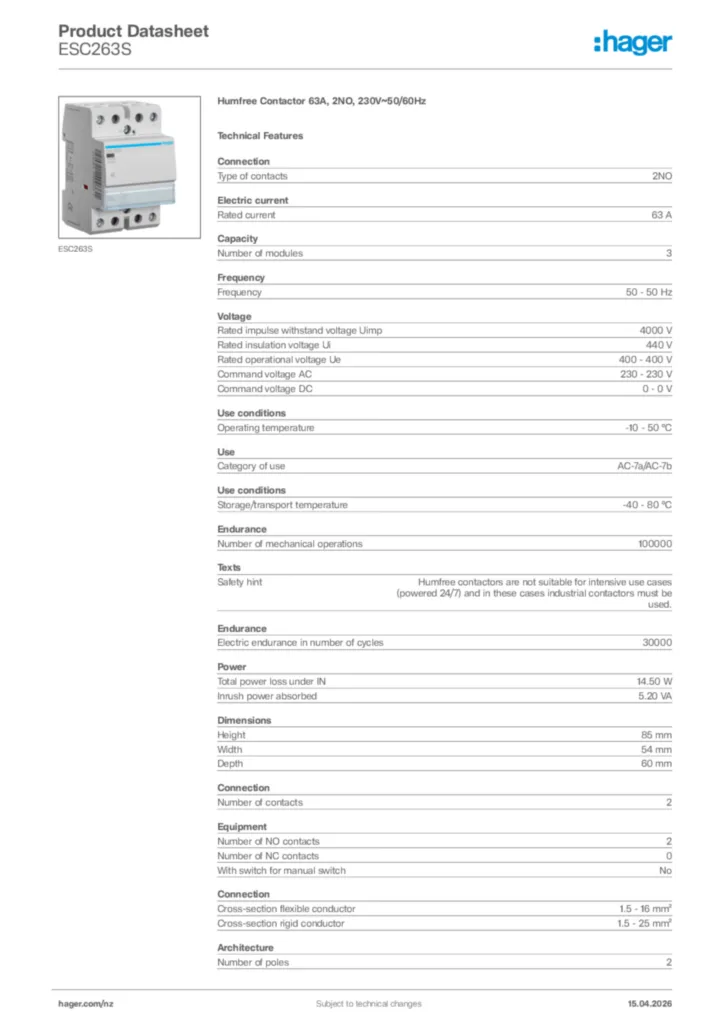

Hager Product data sheet ESC263S
Humfree Contactor 63A, 2NO, 230V~50/60Hz
PDF -
Tools
Contactors Configurator
URL -
Declaration of conformity
Declaration
Declaration of conformity International 2021-09-23
PDF386,51 kB
Declaration
Declaration of conformity International 2021-05-04
PDF224,65 kB
