Override Contactor 25A, 2NO, 24V~50Hz ERD225
EAN
3250612400591
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Type of orderRelay
Configuration
-
Number of modules1
Main electrical features
-
Rated operational voltage Ue230 V
-
Frequency50 Hz
Voltage
-
Rated insulation voltage250 V
-
DC control voltage0 V
-
Command voltage AC24 V
-
Rated impulse withstand voltage4 kV
Electric current
-
Rated current25 A
-
Thermal rated current outside of housings25 A
-
Acceptable current load with AC7 category A25 A
-
Acceptable current load with AC7 category B8.5 A
Dimensions
-
Depth of installed product60 mm
-
Height of installed product83 mm
-
Width of installed product17.85 mm
Power
-
Inrush power absorbed10.7 VA
-
Operating consumption2.9 VA
-
Total power loss under IN4 W
-
Power loss per contact1.5 W
-
Power dissipation per coil1 W
-
Contact rating with 230 V in AC7 category A4.6 kW
-
Contact rating with 230 V in AC7 category B880 W
Tripping
-
Time of response when opening15 ms
-
Time of response when closing25 ms
Endurance
-
Electric endurance in number of cycles30000
-
Number of mechanical operations100000
Fluorescent bulbs control
-
Max. power with fluorescent parallel lamps810 VA
-
Fluorescent lamps in duo circuit1990 VA
-
Max. load fluorescent lamp950 VA
Incandescent bulbs control
-
Max. power with incandescent lamps1900 W
Installation, mounting
-
Tightening torque1,2Nm
Connection
-
Connection cross-sect. flexible conductor1 / 6mm²
-
Connection cross-sect. rigid cable1 / 10mm²
-
Type of contacts2NO
-
Type of connectionwith screw
-
Connection cross-section of the control cable solid1 / 10 mm²
Equipment
-
Can be accessorizedYes
Use
-
Local operation/hand operationYes
Safety
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature-10…50 °C
-
Storage/transport temperature-40…80 °C
Downloads
-
Product image
-

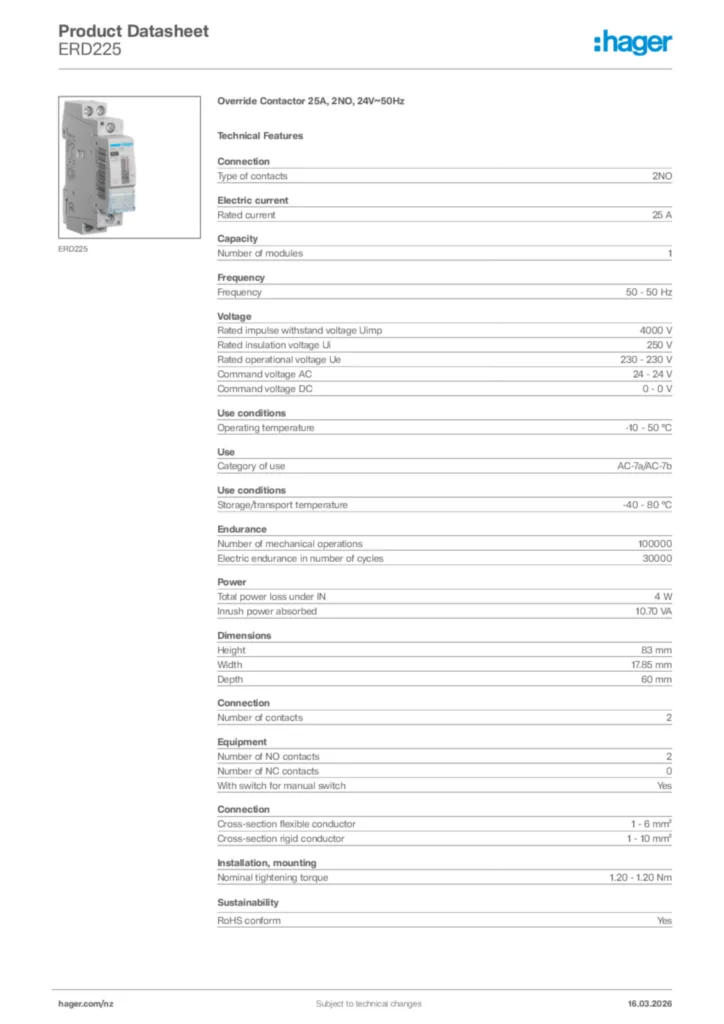

ProductDataSheet
