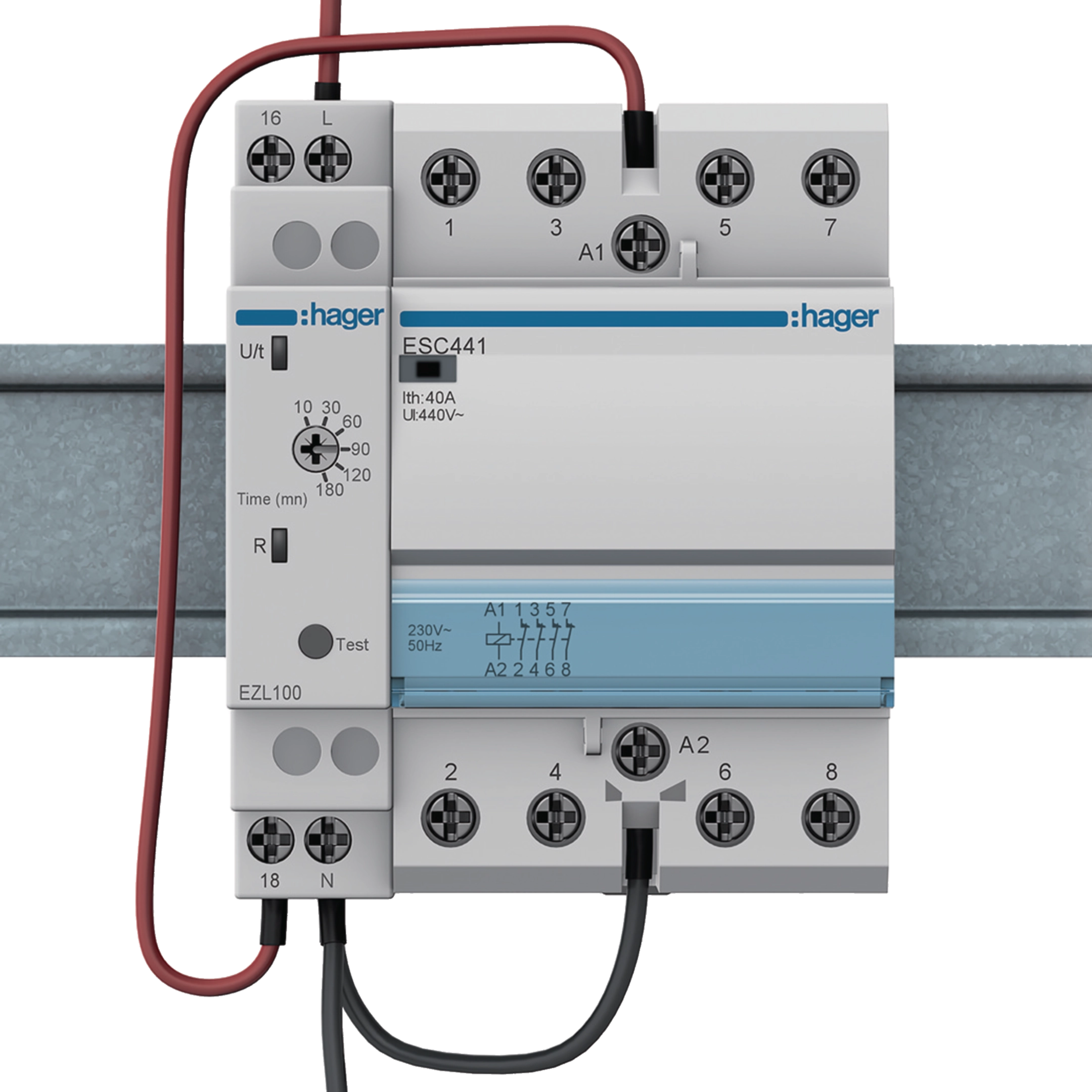

            EMERG3WA - Emerg Test Kit  4 NC Circuit (wired)
            EMERG3WA - Emerg Test Kit  4 NC Circuit (wired)

            Emerg Test Kit 4 NC Circuit (wired)

            EMERG3WA

            EMERG3WA - Emerg Test Kit  4 NC Circuit (wired)
            EMERG3WA - Emerg Test Kit  4 NC Circuit (wired)
            • Enclos­ures

            Emerg Test Kit 4 NC Circuit (wired) EMERG3WA

            EAN
            9329659019852
            Packaging
            1 Piece

            You have to log in with your myHager profile to see prices and to order.

            Add to a list
            Add to a list

            Login to create a product list

            You need to be logged into your myHager account to create product lists

            Create an account Sign in
            • Accessories
            • Technical properties
            • Environmental value
            • Documentations
            • More products
            Download the data sheet

            Complete your system

            Optional accessories

            • Small distri­bu­tion board 1 products available
            • Lock system 1 products available
            • Cover strip 1 products available

            Complete your system

            • Small distri­bu­tion board
            • Lock system
            • Cover strip
            • GD104T

              Mini-enclosure, GD, 4 module wide, protect. class IP30,without door

              0.00 €  / *
              Add to a list
              Add to a list
            • VZ313

              Door key,gamma,for door of the mini-enclosure,GD

              0.00 €  / *
              Add to a list
              Add to a list
            • JP011

              Cover strip,universal, RAL 9010

              0.00 €  / *
              Add to a list
              Add to a list

            Technical properties

            Dimen­sions
            • Height
              80 mm
            • Width
              65 mm
            • Depth
              110 mm
            • Length
              110 mm
            Specific iden­ti­ficaton attrib­utes for Protec­tion
            • Filter Type product
              Contactor relay
            Frequency
            • Frequency
              50 - 50 Hz
            Safety
            • Ingress Protec­tion (IP) class
              IP2X
            Mater­ials
            • Material
              Plastic
            Install­a­tion, mounting
            • Mounting on
              DIN rail
            Connec­tion
            • Number of contacts
              4
            • Type of contacts
              4NC
            Internal use only
            • Number of half modules of 17,5 mm
              8
            Elec­tric current
            • Rated current
              40 A
            Compat­ib­ility
            • Suit­able for DIN Rail
              Yes
            Connectivity
            • Type of connec­tion
              Screw terminal
            Capa­city
            • Number of modules
              4
            Equip­ment
            • With lock
              No
            Settings
            • Time delay
              10 Min - 180 Min
            Voltage
            • Command voltage for 50 Hz
              230 - 230 V

            Environmental value

            We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

            RoHS conform Yes
            REACH conform Yes

            Downloads

            • Product image

              Image EMERG3WA  | Hager New Zealand

              Product Image EMERG3WA

            • ProductMaintenanceManual

              Image User Instructions  | Hager New Zealand

              User Instructions

              EMERGKits

              PDF
              468,57 kB
            More documentation
