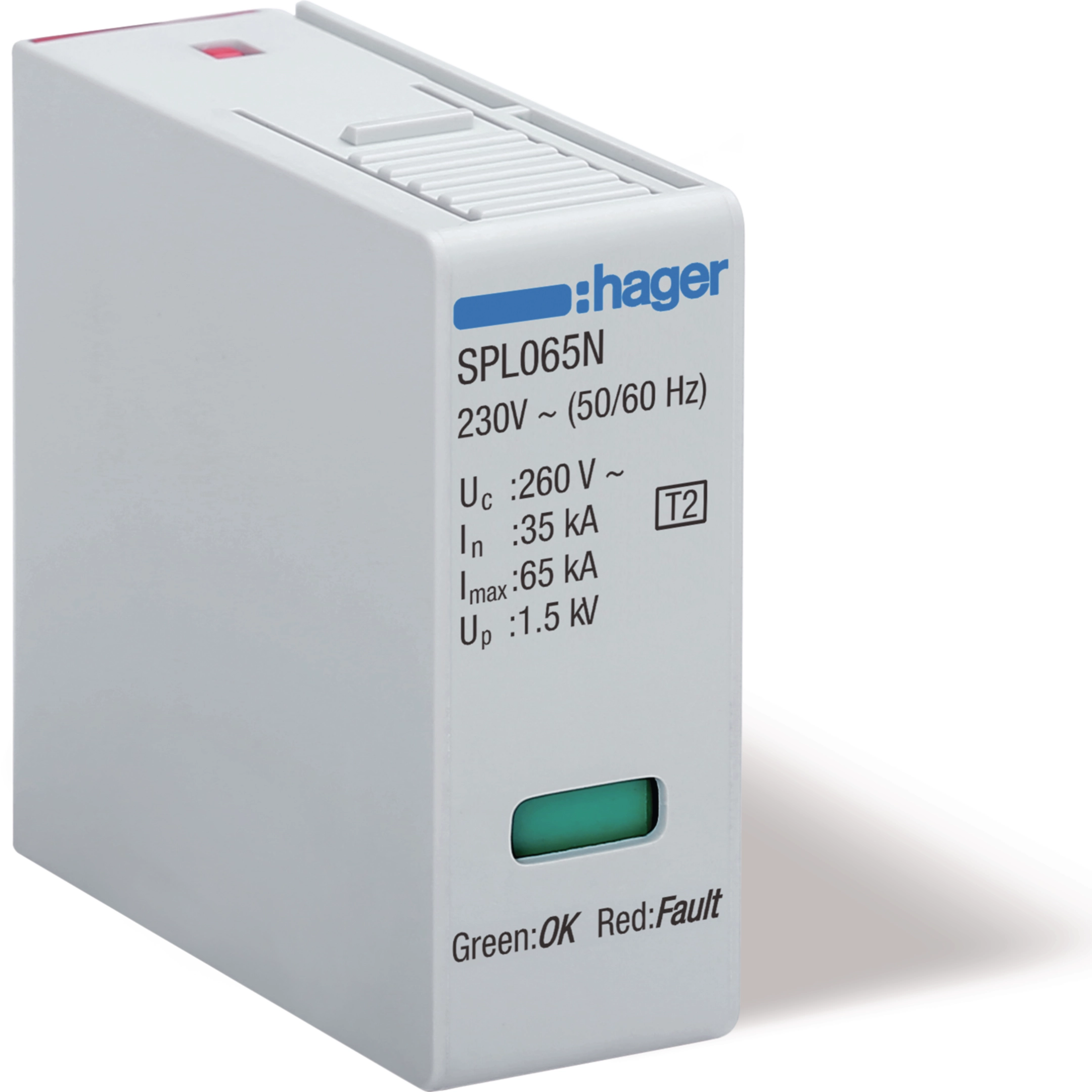

Cartridge N-PE In 35kA Imax 65kA SPL065N
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 4 products available
Technical characteristics
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Continuous operating voltage Uc according to IEC 61643-1260 V
-
Voltage protection level Up according to IEC 61643-11,50 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111,50 kV
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164335 kA
-
Max. discharge (Imax) L-N(PEN)/ N-PE65 kA
Dimensions
-
Height53,5 mm
-
Width18 mm
-
Depth45,5 mm
Use conditions
-
Operating temperature-40 - 80 °C
Network configuration
-
Network typeTN-S, TT
Equipment
-
With remote signalling contactNo
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
More documentation
Discover our other products of this range
-
5
-
1
SPL420SPD 4P T2 TNS/TT Uc 350V In 10kA Imax 20kA -
2
SPL465RSPD 4P T2 TNS/TT Uc 350V In 35kA Imax 65kA remote contact -
3
SPL420RSPD 4P T2 TNS/TT Uc 350V In 10kA Imax 20kA remote contact -
4
SPL440RSPD 4P T2 TNS/TT Uc 350V In 20kA Imax 40kA remote contact -
5
SPL465SPD 4P T2 TNS/TT Uc 350V In 35kA Imax 65kA
