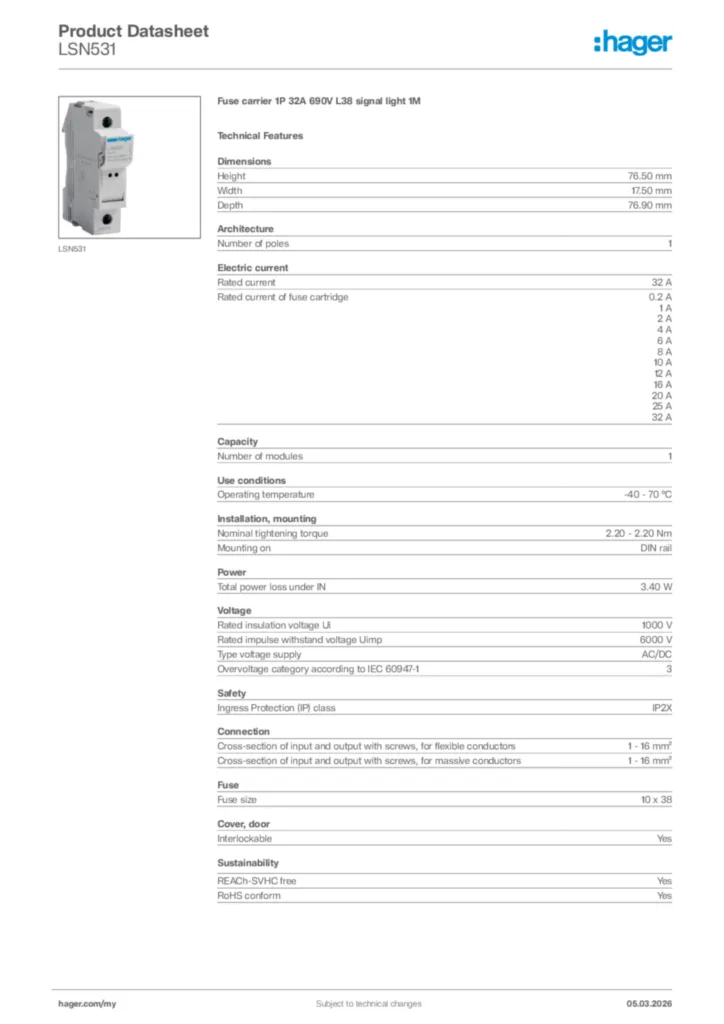

Fuse carrier 1P 32A 690V L38 signal light 1M LSN531
EAN-Nr.
3250614120138
Packaging
12 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Stop delivery w sub Example text: This product is now obsolete. However, you can view the following products as replacements or extensions. As the functions of the replacement product are not absolutely identical, please consult your nearest Hager partner if you have any questions.
Complete your system
Optional accessories
-
Modular phase busbar 1 products available -
Mechanic accessories for low-voltage components 1 products available
Technical characteristics
Dimensions
-
Height76,50 mm
-
Width17,50 mm
-
Depth76,90 mm
Architecture
-
Number of poles1
Electric current
-
Rated current32 A
-
Rated current of fuse cartridge0.2 A, 1 A, 2 A, 4 A, 6 A, 8 A, 10 A, 12 A, 16 A, 20 A, 25 A, 32 A
Capacity
-
Number of modules1
Internal use only
-
Number of half modules of 17,5 mm2
Use conditions
-
Operating temperature-40 - 70 °C
Installation, mounting
-
Nominal tightening torque2,20 - 2,20 Nm
-
Mounting onDIN rail
Power
-
Total power loss under IN3,40 W
Voltage
-
Rated insulation voltage Ui1000 V
-
Rated impulse withstand voltage Uimp6000 V
-
Type voltage supplyAC/DC
-
Overvoltage category according to IEC 60947-13
Safety
-
Ingress Protection (IP) classIP2X
Connection
-
Cross-section of input and output with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input and output with screws, for massive conductors1 - 16 mm²
Fuse
-
Fuse size10 x 38
Cover, door
-
InterlockableYes
