Fuse carrier 2P 50A 690V L51 3M LR602

Technical characteristics
Environmental value
Documentations
More products

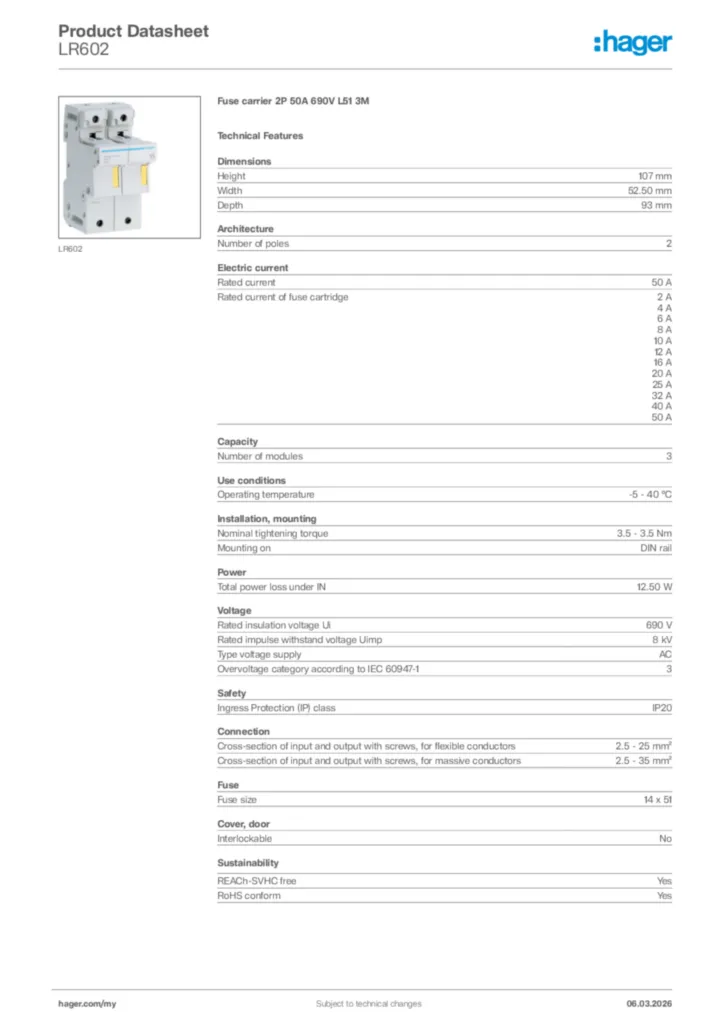

Download the sheet

Technical characteristics

Height

107 mm
Width

52,50 mm
Depth

93 mm

Number of poles

2

Rated current

50 A
Rated current of fuse cartridge

2 A, 4 A, 6 A, 8 A, 10 A, 12 A, 16 A, 20 A, 25 A, 32 A, 40 A, 50 A

Number of modules

3

Number of half modules of 17,5 mm

6

Operating temperature

-5 - 40 °C

Nominal tightening torque

3,5 - 3,5 Nm
Mounting on

DIN rail

Total power loss under IN

12,50 W

Rated insulation voltage Ui

690 V
Rated impulse withstand voltage Uimp

8 kV
Type voltage supply

AC
Overvoltage category according to IEC 60947-1

3

Ingress Protection (IP) class

IP20

Cross-section of input and output with screws, for flexible conductors

2,5 - 25 mm²
Cross-section of input and output with screws, for massive conductors

2,5 - 35 mm²

Fuse size

14 x 51

Interlockable

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
