fuse switch disconnector D02 1P+N 63A LC563
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Fuse
-
Fuse sizeD02
Architecture
-
Number of poles3
Electric current
-
Rated current63 A
-
Rated current of fuse cartridge0.5 A, 1 A, 2 A, 6 A, 10 A, 16 A, 20 A, 25 A, 35 A, 50 A, 63 A
Installation, mounting
-
Mounting onDIN rail
Dimensions
-
Height90 mm
-
Width71 mm
Connection
-
Cross-section flexible conductor35 mm² max.
-
Cross-section rigid conductor35 mm²
Use conditions
-
Operating temperature-25 - 55 °C
Frequency
-
Frequency50 - 50 Hz
Power
-
Total power loss under IN5,50 W
Materials
-
MaterialPlastic
Downloads
-

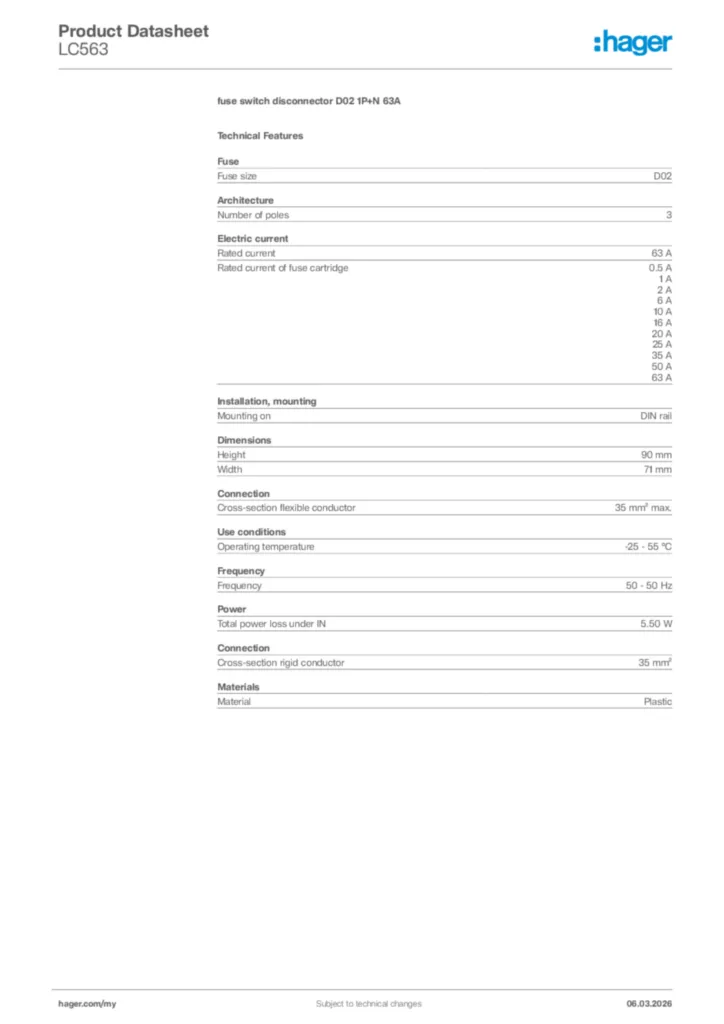

Product datasheet
Hager Product data sheet LC563
fuse switch disconnector D02 1P+N 63A
PDF
