    • JAB402S-IP42
    EAN-Nr.
    3250616617278
    Packaging
    1 piece
    • Load break switches (LBS)

    Enclosed LBS,20A,TPSN,IP42 JAB402S-IP42

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Enclosed LBS,20A,TPSN,IP42

    JAB402S-IP42

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Elec­tric current
    • Rated current
      20 A
    • Rated short-­time with­stand current Icw 1s IEC 60947
      1,26 kA
    Use condi­tions
    • Oper­ating temper­ature
      -5 - +40 °C
    Install­a­tion, mounting
    • Mounting on
      Wall mounting
    Frequency
    • Frequency
      50 - 60 Hz
    Voltage
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated impulse with­stand voltage Uimp
      8 V
    Safety
    • Ingress Protec­tion (IP) class
      IP42
    Dimen­sions
    • Height
      250 mm
    • Width
      180 mm
    • Depth
      105 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration JAB402S-IP42
    PDF

    Downloads

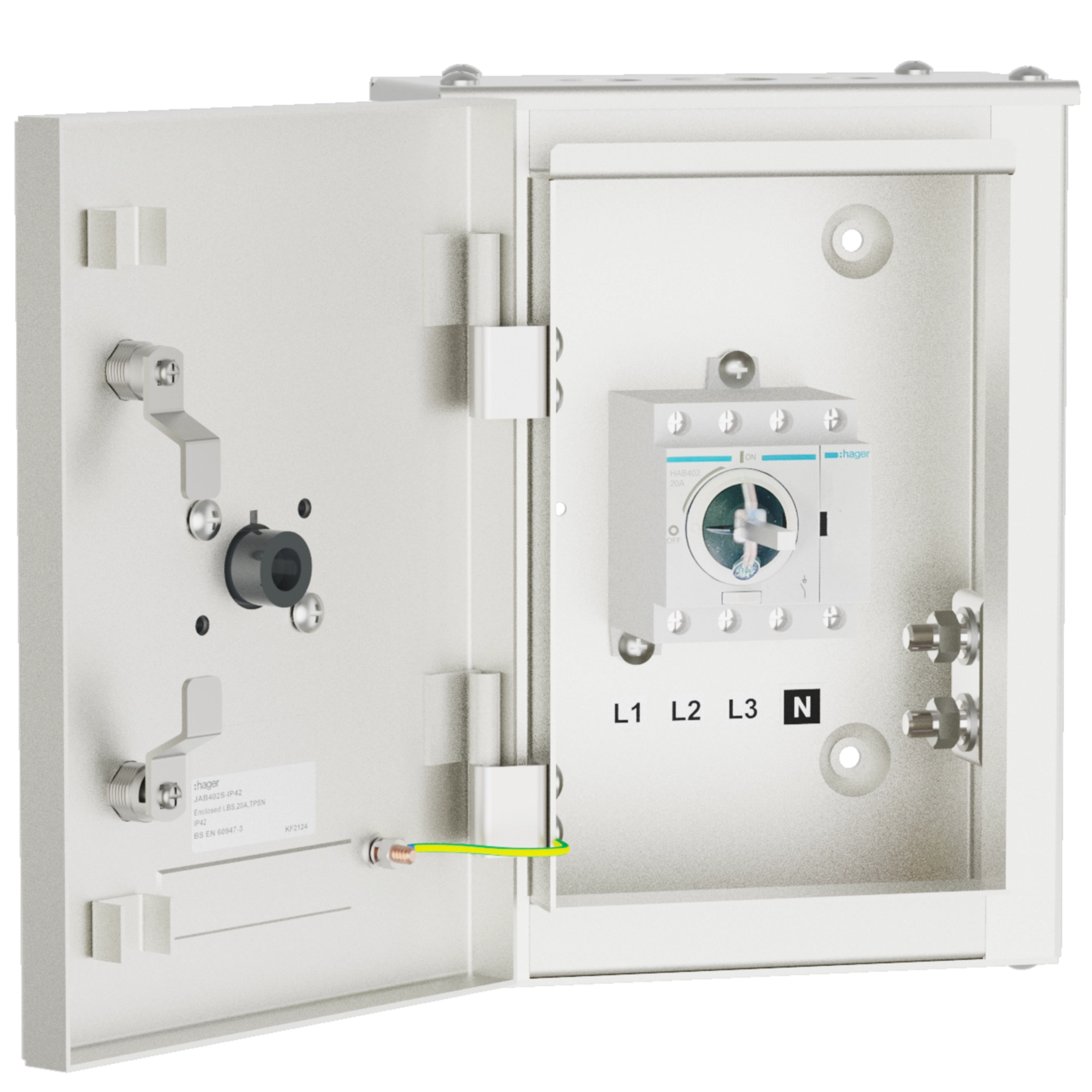

    • Image JAB402S-IP42 | Hager

      Product Image JAB402S-IP42

    • Product datasheet

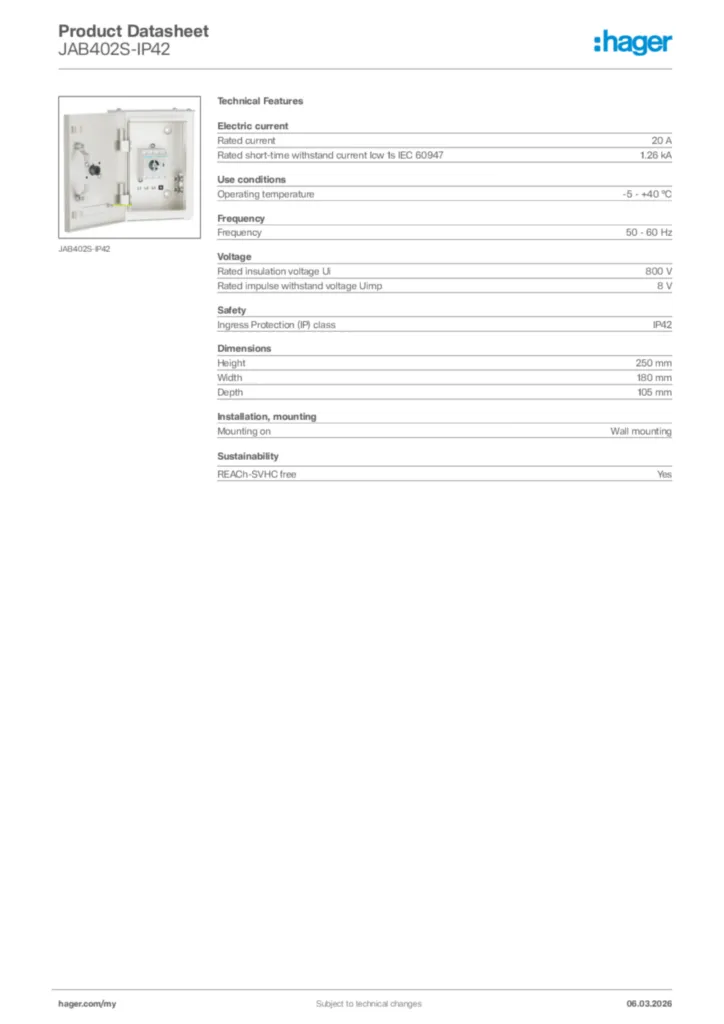

      Image Hager Product data sheet JAB402S-IP42 | Hager

      Hager Product data sheet JAB402S-IP42

      Product data sheet en-GB 2026-03-06

      PDF

    • Instruction manual

      Image Instruction manual en-GB 2024-02-16 | Hager

      Instruction manual en-GB 2024-02-16

      PDF
      8,66 MB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager

      EU Declaration of Conformity

      Declaration of conformity en-GB 2024-05-13

      PDF
      588,39 kB
