Moulded Case Circuit Breaker X250 4P 25kA 125A TM HHB126Z
EAN-Nr.
3250613347598
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Phase separation functions 1 products available -
Handle for power circuit breaker 1 products available -
Shunt release 3 products available -
Connection Functions 2 products available -
Under voltage coil 3 products available -
Auxiliaries contact block 3 products available
Complete your system

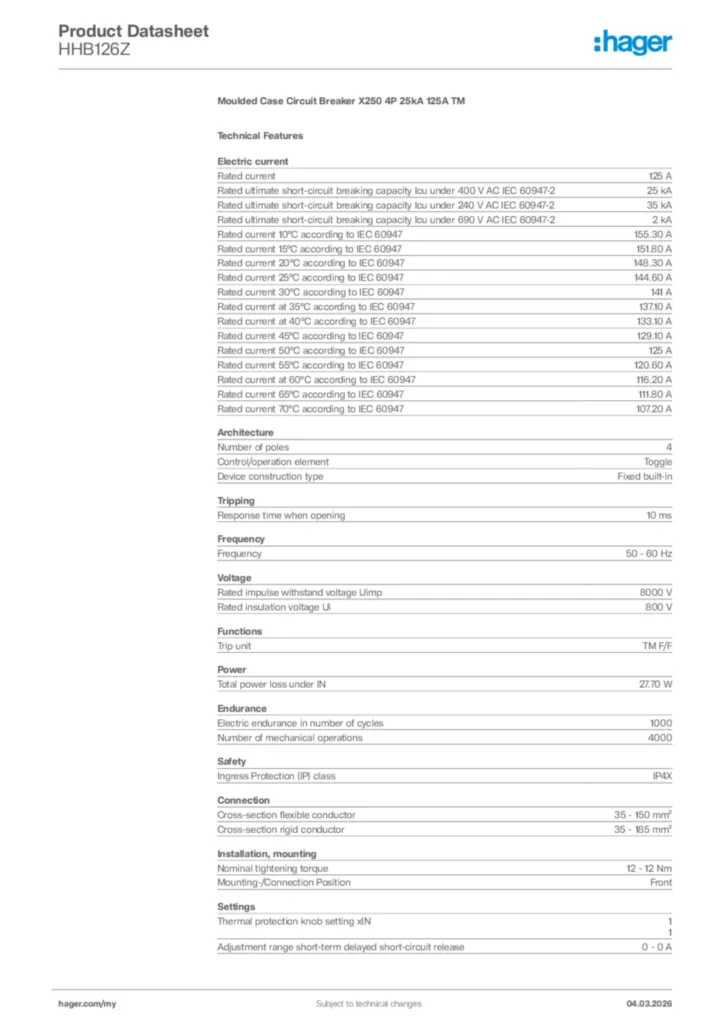

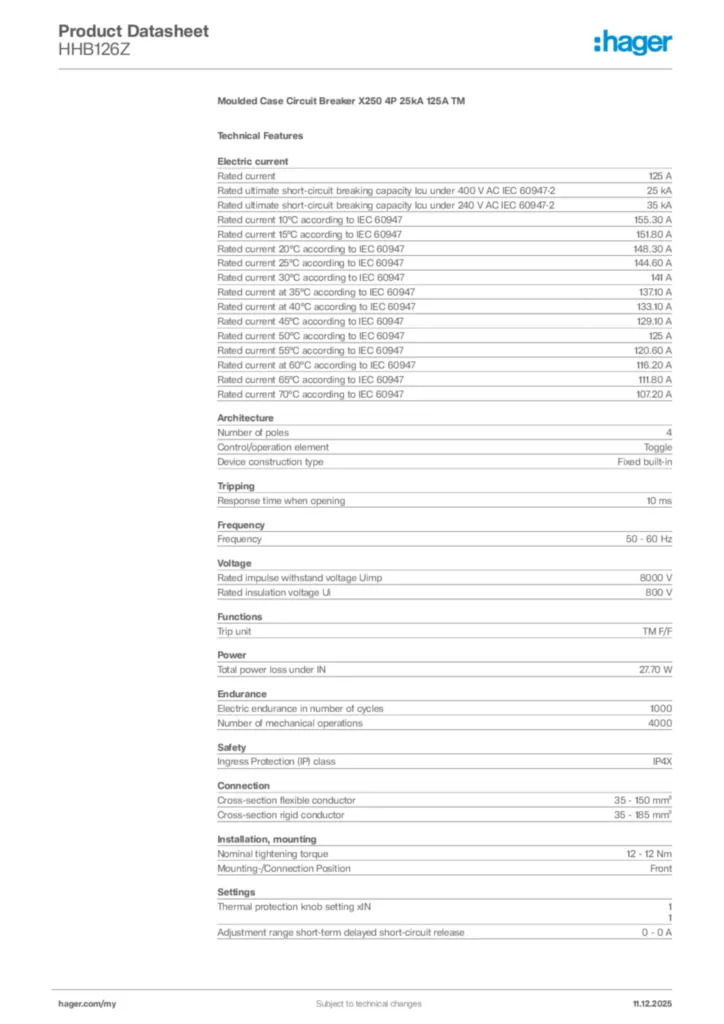

Technical characteristics
Electric current
-
Rated current125 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-225 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-235 kA
-
Rated current 10°C according to IEC 60947155,30 A
-
Rated current 15°C according to IEC 60947151,80 A
-
Rated current 20°C according to IEC 60947148,30 A
-
Rated current 25°C according to IEC 60947144,60 A
-
Rated current 30°C according to IEC 60947141 A
-
Rated current at 35°C according to IEC 60947137,10 A
-
Rated current at 40°C according to IEC 60947133,10 A
-
Rated current 45°C according to IEC 60947129,10 A
-
Rated current 50°C according to IEC 60947125 A
-
Rated current 55°C according to IEC 60947120,60 A
-
Rated current at 60°C according to IEC 60947116,20 A
-
Rated current 65°C according to IEC 60947111,80 A
-
Rated current 70°C according to IEC 60947107,20 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui800 V
Functions
-
Trip unitTM F/F
Power
-
Total power loss under IN27,70 W
Endurance
-
Electric endurance in number of cycles1000
-
Number of mechanical operations4000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor35 - 150 mm²
-
Cross-section rigid conductor35 - 185 mm²
Settings
-
Thermal protection knob setting xIN1, 1
-
Adjustment range short-term delayed short-circuit release0 - 0 A
Compatibility
-
Suitable for DIN RailNo
Installation, mounting
-
Nominal tightening torque12 - 12 Nm
-
Mounting-/Connection PositionFront
Main electrical attributes
-
Magnetic protection trip time0 - 0 ms
