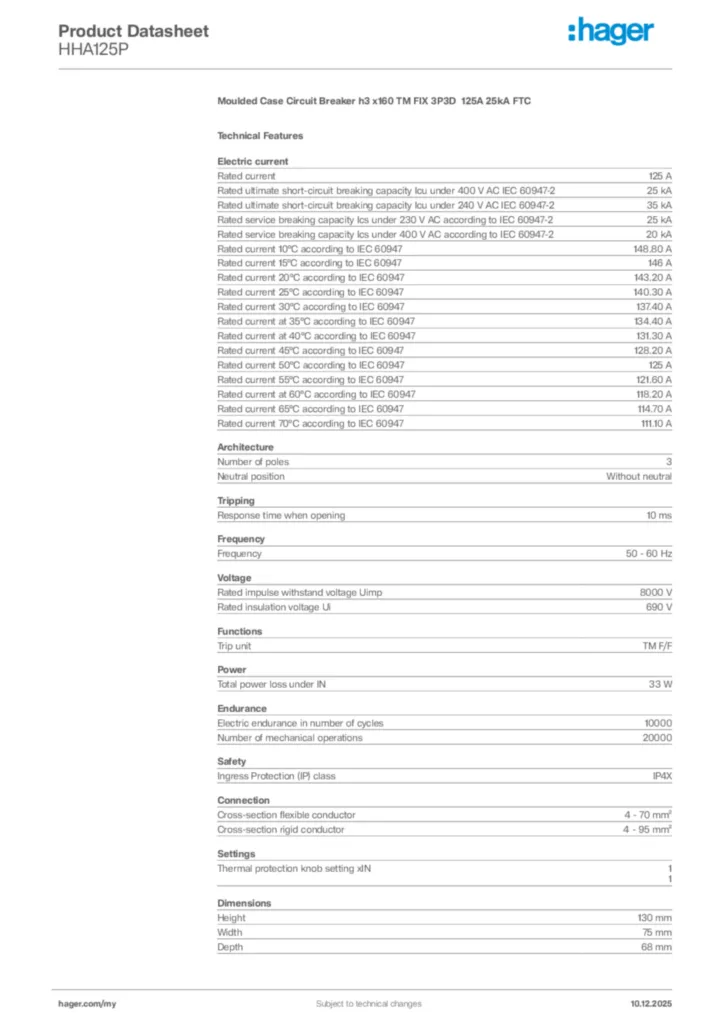

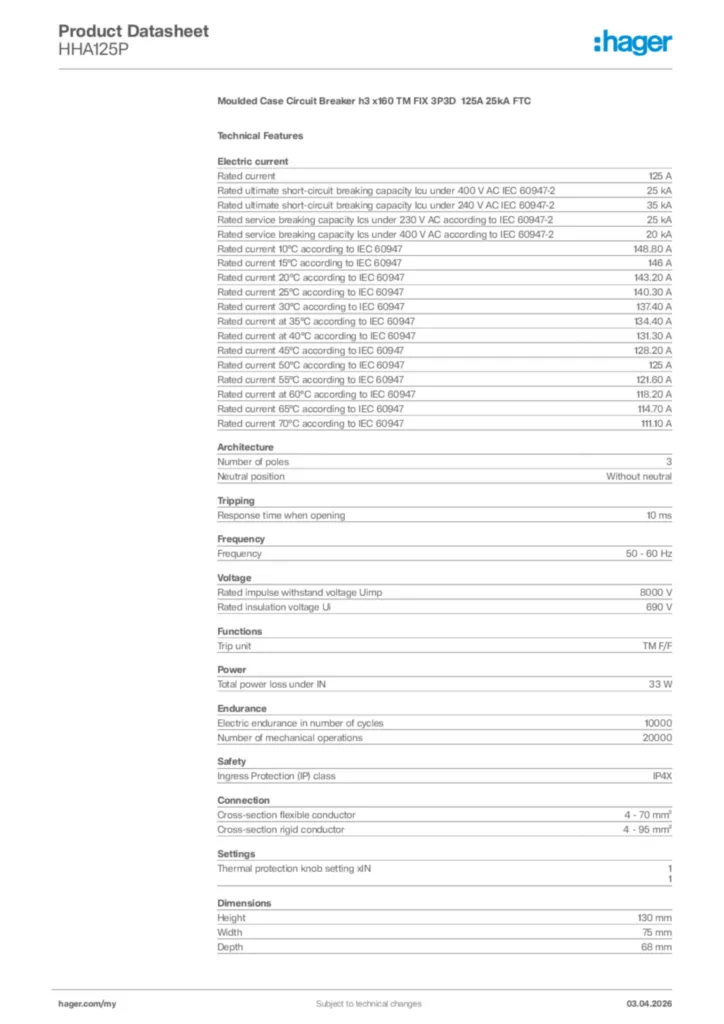

Moulded Case Circuit Breaker h3 x160 TM FIX 3P3D 125A 25kA FTC HHA125P
EAN-Nr.
3250613132668
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Shunt release 3 products available -
Auxiliaries contact block 3 products available -
Under voltage coil 3 products available -
DIN rail adapter 1 products available -
Locking interlocking functions 1 products available -
Connection Functions 2 products available
Complete your system
Technical characteristics
Electric current
-
Rated current125 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-225 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-235 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-225 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-220 kA
-
Rated current 10°C according to IEC 60947148,80 A
-
Rated current 15°C according to IEC 60947146 A
-
Rated current 20°C according to IEC 60947143,20 A
-
Rated current 25°C according to IEC 60947140,30 A
-
Rated current 30°C according to IEC 60947137,40 A
-
Rated current at 35°C according to IEC 60947134,40 A
-
Rated current at 40°C according to IEC 60947131,30 A
-
Rated current 45°C according to IEC 60947128,20 A
-
Rated current 50°C according to IEC 60947125 A
-
Rated current 55°C according to IEC 60947121,60 A
-
Rated current at 60°C according to IEC 60947118,20 A
-
Rated current 65°C according to IEC 60947114,70 A
-
Rated current 70°C according to IEC 60947111,10 A
Architecture
-
Number of poles3
-
Neutral positionWithout neutral
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui690 V
Functions
-
Trip unitTM F/F
Power
-
Total power loss under IN33 W
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations20000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor4 - 70 mm²
-
Cross-section rigid conductor4 - 95 mm²
Settings
-
Thermal protection knob setting xIN1, 1
Dimensions
-
Height130 mm
-
Width75 mm
-
Depth68 mm
Compatibility
-
Suitable for DIN RailNo
Main electrical attributes
-
Magnetic protection trip time0 - 0 ms
