KNX glass sensor 3g thermostat, display, intg bus coupl. ,KNX-TS sensor, p.wh. 75643130

Important information before ordering:
This product requires to be configurated before it can be ordered.
The configuration must be completed using our online configurator, which is accessible directly from this page.

Accessories
Technical characteristics
Environmental value
Documentations
More products

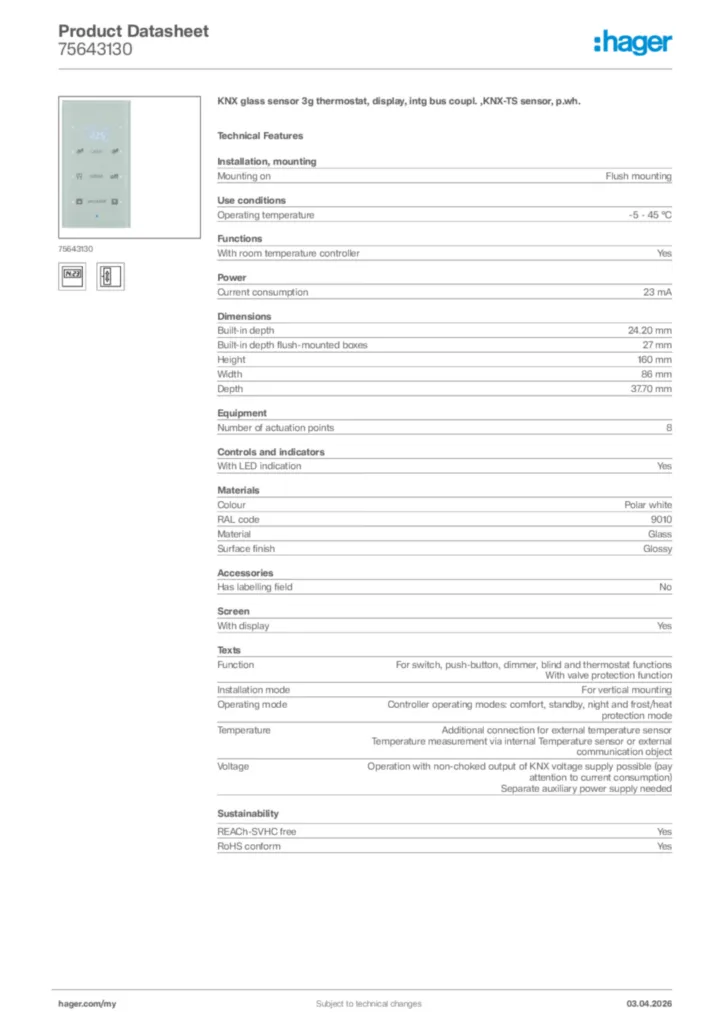

Download the sheet

Complete your system

1871

Wall box 2gang flat, KNX - TS sensor

TGA200

Power supply 24 V DC 1A

Technical characteristics

Mounting on

Flush mounting

Operating temperature

-5 - 45 °C

With room temperature controller

Yes

Current consumption

23 mA

Built-in depth

24,20 mm
Built-in depth flush-mounted boxes

27 mm
Height

160 mm
Width

86 mm
Depth

37,70 mm

Number of actuation points

8

With LED indication

Yes

Colour

Polar white
RAL code

9010
Material

Glass
Surface finish

Glossy

Has labelling field

No

With display

Yes

Function

For switch, push-button, dimmer, blind and thermostat functions, With valve protection function
Installation mode

For vertical mounting
Operating mode

Controller operating modes: comfort, standby, night and frost/heat protection mode
Temperature

Additional connection for external temperature sensor, Temperature measurement via internal Temperature sensor or external communication object
Voltage

Operation with non-choked output of KNX voltage supply possible (pay attention to current consumption), Separate auxiliary power supply needed

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
