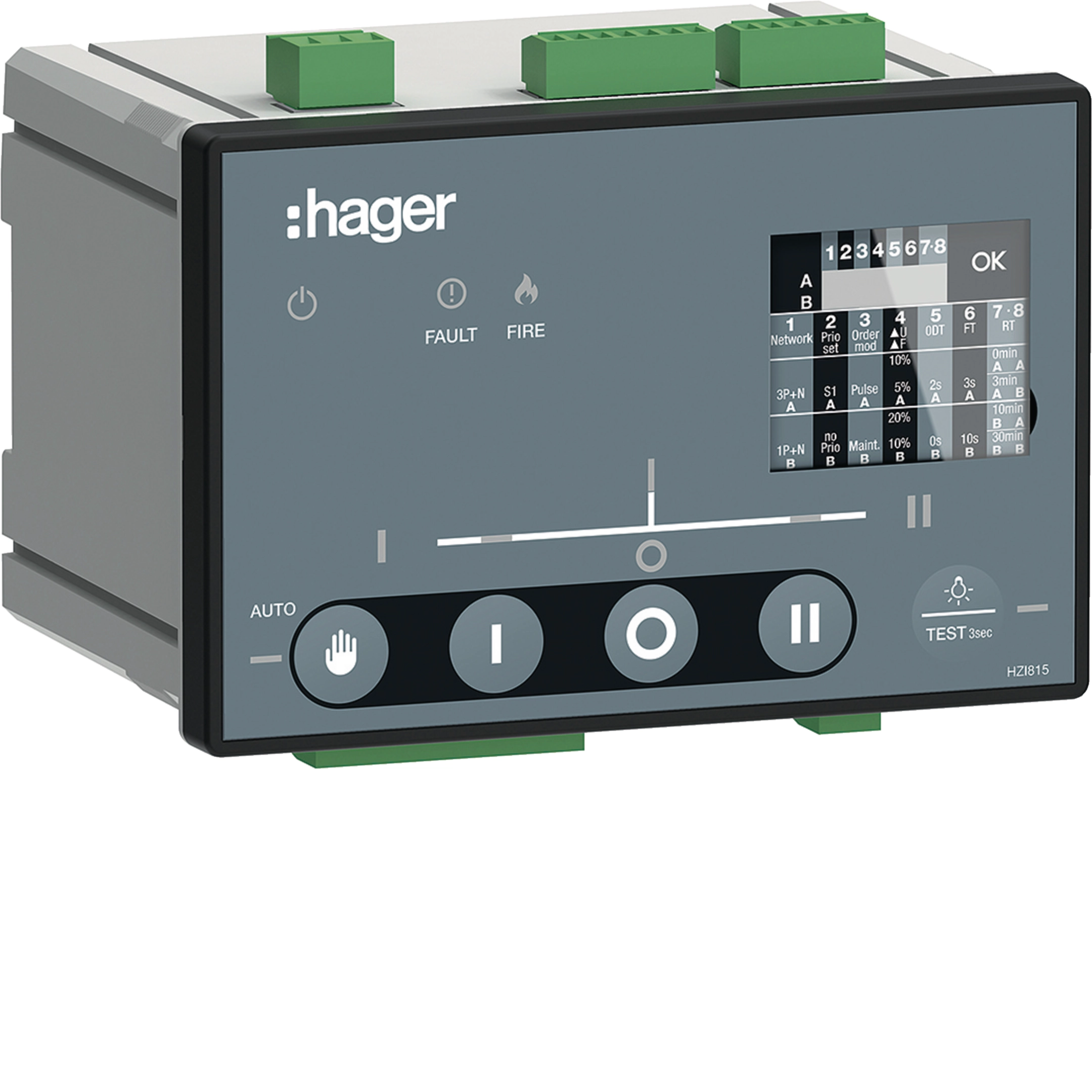

ATS contoller for Remotely operated Transfer Switching Equipment (HIB) only HZI815I
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Automatic transfer switch 6 products available
Complete your system
-
HIB412I
Motorized transfer switch 4P 125A with bridging bars
-
HIB416I
Motorized transfer switch 4P 160A with bridging bars
-
HIB425I
Motorized transfer switch 4P 250A with bridging bars
-
HIB440I
Motorized transfer switch 4P 400A with bridging bars
-
HIB463I
Motorized transfer switch 4P 630A with bridging bars
-
HIB480I
Motorized transfer switch 4P 800A with bridging bars
Technical characteristics
Voltage
-
Rated operational voltage Ue240 - 415 V
Connection
-
Cross-section output with rigid conductor1,5 - 2,5 mm²
-
Cross-section output with flexible conductor1,5 - 2,5 mm²
-
Connection type bus inputScrew terminal
-
Connection type inputScrew terminal
-
Output connection typeScrew terminal
Equipment
-
Number of outputs4
-
Number of inputs5
-
Type of displayLCD
Use conditions
-
Operating temperature-25 - 70 °C
-
Storage/transport temperature-30 - 70 °C
Power
-
Power absorbed10 W
Safety
-
Ingress Protection (IP) classIP4X
Installation, mounting
-
Mounting onDIN rail
-
Nominal tightening torque of the control and auxiliary contact circuit0,58 - 0,58 Nm
Downloads
-
Operating manual
Operating manual International 2021-09-24
PDF5,55 MB -
Installation manual
ID1_HZI815-HZI825_6LE007316Ab_EN_web.pdf
Installation manual International 2021-02-03
PDF1,84 MB
