DIMMER 4 CHANNELS 600W WITH PARALLELIZATION TYA664BN

EAN
3250616057753
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
Phase out product: please contact your electrical wholesaler for availability

DIMMER 4 CHANNELS 600W WITH PARALLELIZATION

TYA664BN

  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Technical properties

Voltage
  • Oper­ating voltage over bus
    21 - 32 V
  • Input voltage
    230 - 230 V
  • System supply voltage
    30 V DC Via bus
  • Auxil­iary tension
    230 - 230 V
Elec­tric current
  • Bus current consump­tion data transfer
    2.40 mA
Frequency
  • Frequency
    50 - 60 Hz
Use condi­tions
  • Oper­ating temper­ature
    -5 - 45 °C
Connec­tion
  • Cross-sec­tion flex­ible conductor
    0.75 - 2.5 mm²
  • Cross-sec­tion rigid conductor
    0.75 - 2.5 mm²
Equip­ment
  • Number of outputs
    4
  • Type of dimmer
    Dimming actu­ator
Lighting
  • LED lamp power
    480 W
  • Dimmable 230 V LED lamp
    120 - 120 W
Capa­city
  • Number of modules
    10
Power
  • 230 V incan­des­cent and halogen lamp
    600 W
  • Power incan­des­cent lamp
    5 - 600 W
  • Power of vari­ator
    5 - 600 W
Connectivity
  • With bus system KNX radio
    No
  • Type of connec­tion
    quickconnect
Settings
  • Supported config­ur­a­tion mode
    ETS
Texts
  • Fuse
    Overheating protec­tion (dis­play using LEDs), Short-­cir­cuit proof and over­load-­proof (dis­play using LEDs)
  • Oper­ating mode
    Load coup­ling of 4 chan­nels to increase output power using parallel connec­tion of the outputs
  • Dimming prin­ciple
    Phase cut-on or cut-off according to load type, self-learning, Minim­um/max­imum dimming values per channel settable on device
  • Func­tion
    Learning func­tion for optim­ised oper­a­tion of compact fluor­es­cent lamps and LED luminaires can be activ­ated via the bus
  • Type of connec­tion
    With quickconnect plug-in terminals
  • Labelling
    Large labelling field
  • Protec­tion
    With overheat­ing, over­load and short-­cir­cuit protec­tion

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

Certifications and documents

PEP document en-GB 2023-11-07
PDF
435,30 kB
Hager REACH declaration TYA664BN
PDF

Downloads

  • Product image

    Image TYA664BN | Hager

    Product Image TYA664BN

  • Product datasheet

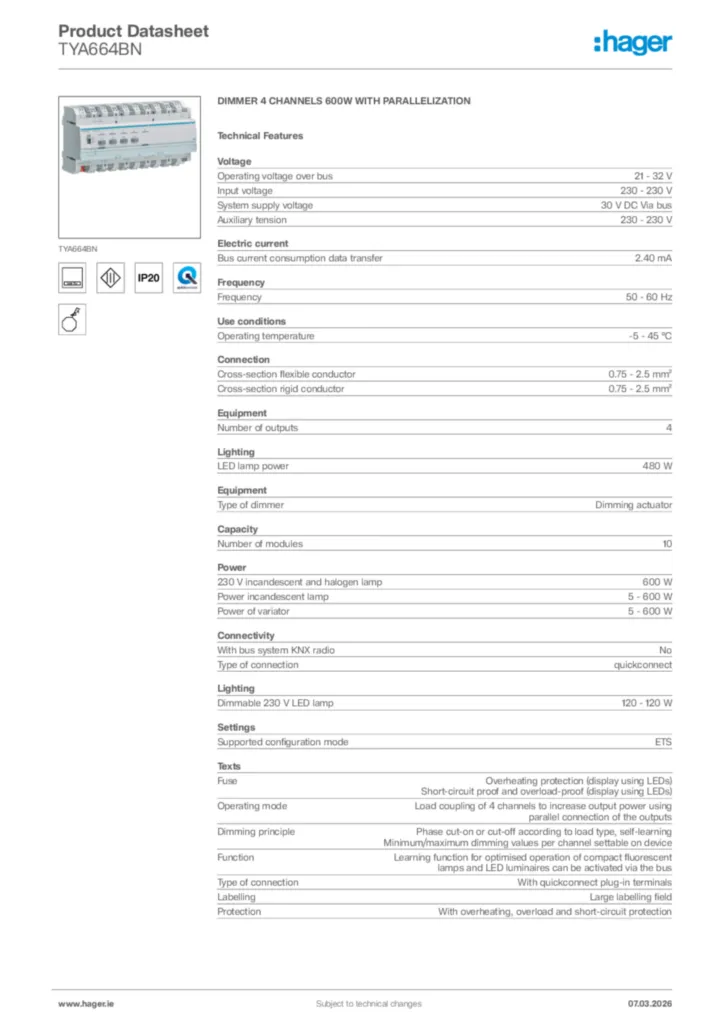

    Image Hager Product data sheet TYA664BN | Hager

    Hager Product data sheet TYA664BN

    DIMMER 4 CHANNELS 600W WITH PARALLELIZATION

    PDF
