Dimmer 1 channel 300W TYA661AN

EAN
3250616059375
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.

Dimmer 1 channel 300W

TYA661AN

  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Technical properties

Voltage
  • Oper­ating voltage over bus
    21 - 32 V
  • Input voltage
    230 - 230 V
  • System supply voltage
    30 V DC Via bus
  • Auxil­iary tension
    230 - 230 V
Elec­tric current
  • Bus current consump­tion data transfer
    2.30 mA
Frequency
  • Frequency
    50 - 60 Hz
Use condi­tions
  • Oper­ating temper­ature
    -5 - 45 °C
Connec­tion
  • Cross-sec­tion flex­ible conductor
    0.75 - 2.5 mm²
  • Cross-sec­tion rigid conductor
    0.75 - 2.5 mm²
Equip­ment
  • Number of outputs
    1
  • Type of dimmer
    Dimming actu­ator
Lighting
  • LED lamp power
    60 W
  • Dimmable 230 V LED lamp
    60 - 60 W
Capa­city
  • Number of modules
    4
Power
  • 230 V incan­des­cent and halogen lamp
    300 W
  • Power incan­des­cent lamp
    300 - 300 W
  • Power of vari­ator
    300 - 300 W
Connectivity
  • With bus system KNX radio
    No
  • Type of connec­tion
    quickconnect
Settings
  • Supported config­ur­a­tion mode
    ETS
Texts
  • Fuse
    Overheating protec­tion (dis­play using LEDs), Short-­cir­cuit proof and over­load-­proof (dis­play using LEDs)
  • Dimming prin­ciple
    Phase cut-on or cut-off according to load type, self-learning, Minim­um/max­imum dimming values per channel settable on device
  • Func­tion
    Learning func­tion for optim­ised oper­a­tion of compact fluor­es­cent lamps and LED luminaires can be activ­ated via the bus
  • Type of connec­tion
    With quickconnect plug-in terminals
  • Labelling
    Large labelling field
  • Protec­tion
    With overheat­ing, over­load and short-­cir­cuit protec­tion

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

REACH declaration TYA661AN
PDF
Hager RoHS report TYA661AN
PDF

Downloads

  • Product image

    Image TYA661AN | Hager

    Product Image TYA661AN

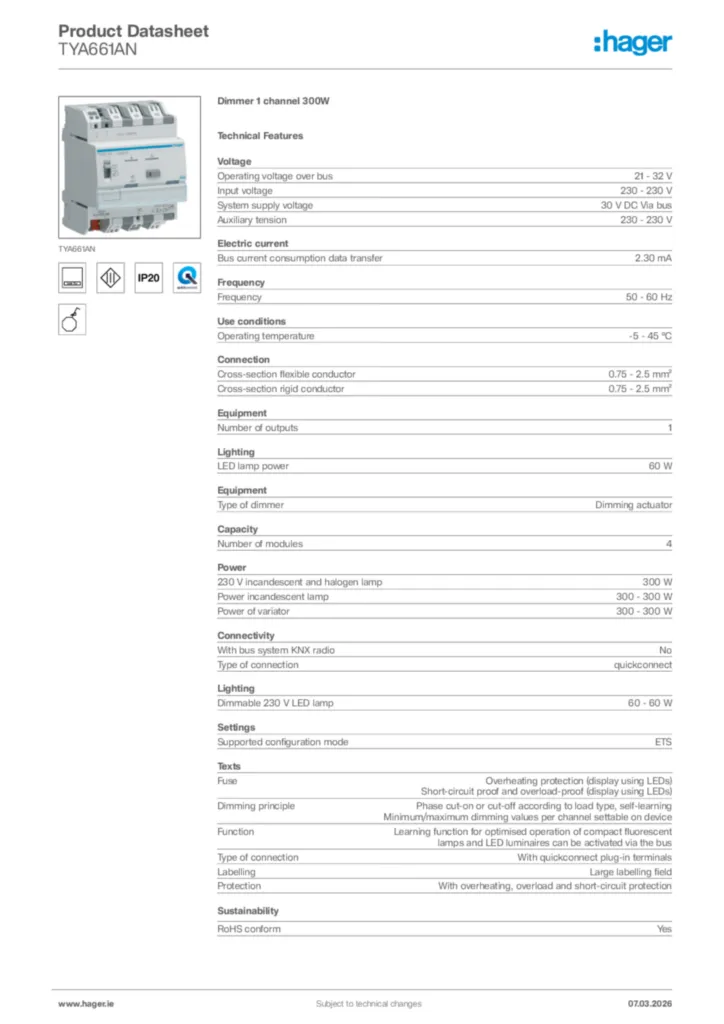

  • Product datasheet

    Image Hager Product data sheet TYA661AN | Hager

    Hager Product data sheet TYA661AN

    Dimmer 1 channel 300W

    PDF

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2021-12-10

    PDF
    138,10 kB
