Output module 10x 16A (C)/230V~, KNX TYA610D
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
catalog.pageproduct.tab_additional_title.link
Connectivity
-
With bus system KNXcatalog.pageproduct.attribute_boolean.yes
-
With bus system KNX radiocatalog.pageproduct.attribute_boolean.no
Settings
-
Supported configuration modeETS
Dimensions
-
Height90 mm
-
Depth65 mm
-
Number of width units6
Installation, mounting
-
Mounting onDIN rail
Materials
-
ColourLight grey
Equipment
-
Radio frequency bidirectionalcatalog.pageproduct.attribute_boolean.no
-
With switch for manual switchcatalog.pageproduct.attribute_boolean.yes
Electric current
-
Max. switching current16 A
-
Rated current IN16 A
-
Bus current consumption while idle8 mA
Frequency
-
Frequency50 - 60 Hz
Power
-
Power incandescent lamp 230 V2,300 - 2,300 W
-
Output power2,300 W
-
230 V incandescent and halogen lamp2,300 W
-
Power incandescent lamp2,300 - 2,300 W
Voltage
-
Rated operational voltage Ue230 - 230 V
-
System supply voltage30 V DC Via bus
-
Operating voltage over bus21 - 32 V
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section rigid conductor0.75 - 2.5 mm²
-
Cross-section flexible conductor0.75 - 2.5 mm²
Texts
-
FunctionWith safety functions e.g. for wind, rain, alarm, With positioning function for blind and lamella position, With sun shade function
-
Type of connectionWith quickconnect plug-in terminals
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link
catalog.pageproduct.sustainability_block.downloads_h3
catalog.pageproduct.title_asset.h2
-
Product image
-
GeneratedProductDatasheet

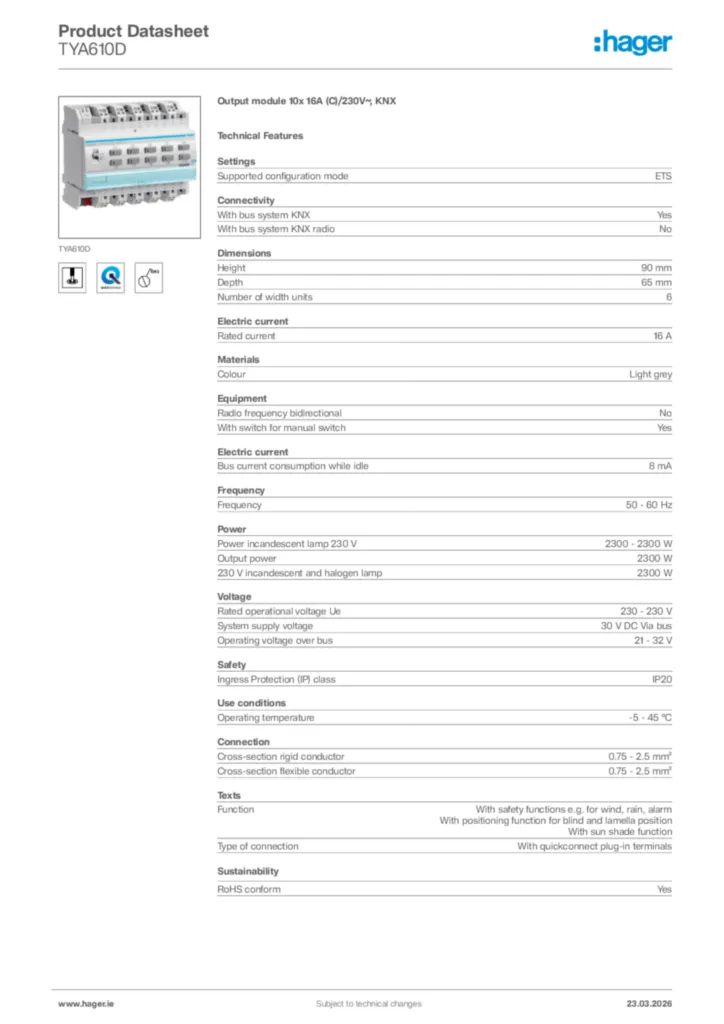

Hager Product data sheet TYA610D
