Output module 10x 10A /230V~, KNX

TXA610B

Output module 10x 10A /230V~, KNX TXA610B

EAN
3250616048812
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.


  • Technical properties
  • Environmental value

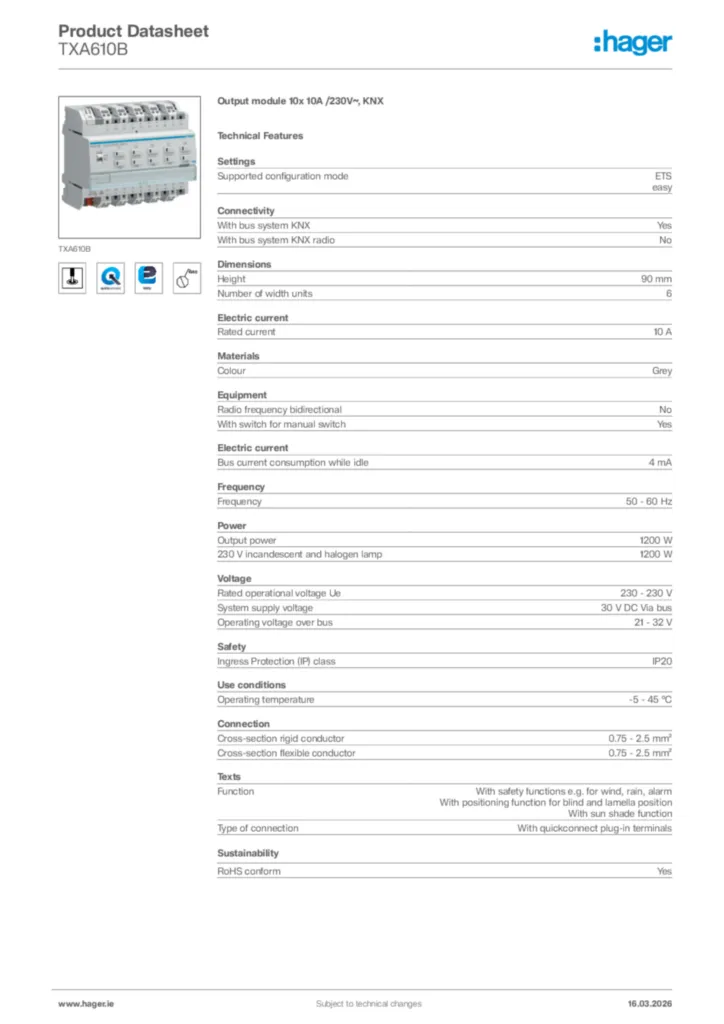

Download the data sheet

Technical properties

Connectivity
  • With bus system KNX
    Yes
  • With bus system KNX radio
    No
Settings
  • Supported config­ur­a­tion mode
    ETS, easy
Dimen­sions
  • Height
    90 mm
  • Number of width units
    6
Mater­ials
  • Colour
    Grey
Equip­ment
  • Radio frequency bidirec­tional
    No
  • With switch for manual switch
    Yes
Elec­tric current
  • Rated current
    10 A
  • Bus current consump­tion while idle
    4 mA
Frequency
  • Frequency
    50 - 60 Hz
Power
  • Output power
    1,200 W
  • 230 V incan­des­cent and halogen lamp
    1,200 W
Voltage
  • Rated oper­a­tional voltage Ue
    230 - 230 V
  • System supply voltage
    30 V DC Via bus
  • Oper­ating voltage over bus
    21 - 32 V
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Oper­ating temper­ature
    -5 - 45 °C
Texts
  • Func­tion
    With safety func­tions e.g. for wind, rain, alarm, With posi­tioning func­tion for blind and lamella posi­tion, With sun shade func­tion
  • Type of connec­tion
    With quickconnect plug-in terminals
Connec­tion
  • Cross-sec­tion rigid conductor
    0.75 - 2.5 mm²
  • Cross-sec­tion flex­ible conductor
    0.75 - 2.5 mm²

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

REACH declaration TXA610B (english)
PDF
103,10 kB
RoHS declaration TXA610B (english)
PDF
103,84 kB
