Module 1 FM output 4A free of potential + 2 inputs mains powered, KNX radio TRM694G

EAN
3250615988812
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.

Module 1 FM output 4A free of potential + 2 inputs mains powered, KNX radio

TRM694G

  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Technical properties

Connectivity
  • Radio protocol
    KNX Radio
  • Receiver category
    2
  • With bus system KNX
    No
  • With bus system KNX radio
    Yes
Settings
  • Supported config­ur­a­tion mode
    ETS, easy, quicklink
Dimen­sions
  • Height
    40 mm
  • Width
    40 mm
  • Depth
    20 mm
  • Built-in depth
    40 mm
Mater­ials
  • Colour
    Light grey
Equip­ment
  • Radio frequency bidirec­tional
    Yes
  • With switch for manual switch
    Yes
Elec­tric current
  • Rated current
    4 A
Frequency
  • Frequency
    50 - 50 Hz
  • Radio recep­tion frequency
    868.30 - 868.30 MHz
Power
  • Output power
    920 W
  • 230 V incan­des­cent and halogen lamp
    600 W
Voltage
  • Oper­ating voltage
    230 - 230 V
  • Rated oper­a­tional voltage Ue
    230 - 230 V
  • System supply voltage
    230 V AC
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Oper­ating temper­ature
    -10 - 50 °C
Connec­tion
  • Cross-sec­tion rigid conductor
    0.5 - 2.5 mm²
  • Cross-sec­tion flex­ible conductor
    0.5 - 1.5 mm²
Texts
  • Func­tion
    Easy addi­tional func­tions: +6 scenes, Repeat func­tion can be activ­ated to increase the radio range, Reset func­tion (to factory setting)
  • Install­a­tion mode
    For install­a­tion behind flush-­mounted inserts
  • Type of connec­tion
    With screw-in lift terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration TRM694G
PDF
Hager RoHS report TRM694G
PDF

Downloads

  • Product image

    Image TRM694G | Hager

    Product Image TRM694G

  • Product datasheet

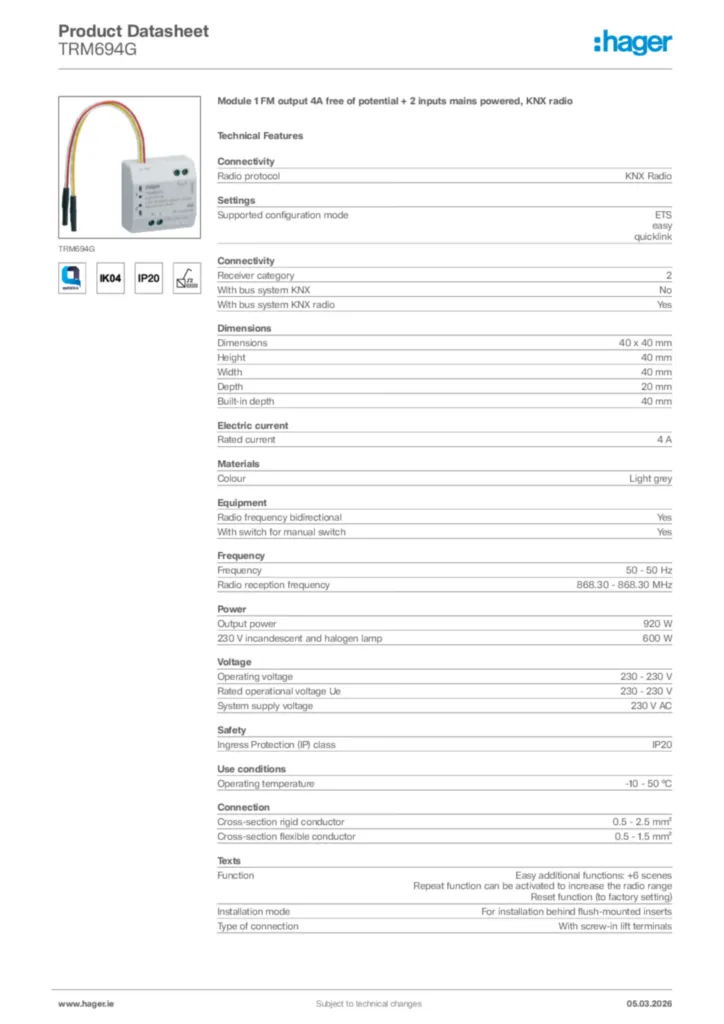

    Image Hager Product data sheet TRM694G | Hager

    Hager Product data sheet TRM694G

    Module 1 FM output 4A free of potential + 2 inputs mains powered, KNX radio

    PDF

  • Instruction manual

    Image Instruction manual fr-FR, de-DE, en-GB, nl-NL, it-IT 2017-03-28 | Hager

    Instruction manual fr-FR, de-DE, en-GB, nl-NL, it-IT 2017-03-28

    PDF
    2,83 MB

  • Declaration of conformity

    Image EU Declaration of Conformity | Hager

    EU Declaration of Conformity

    Declaration of conformity en-GB, fr-FR 2024-11-26

    PDF
    123,52 kB
