Module 1 flush mounted dimmer 200W, 2 wires + 2 inputs, KNX radio TRM691E

EAN
3250615989048
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.

Module 1 flush mounted dimmer 200W, 2 wires + 2 inputs, KNX radio

TRM691E

  • Technical properties
  • Environmental value
  • Documentations

Technical properties

Voltage
  • System supply voltage
    230 V AC
Frequency
  • Frequency
    50 - 50 Hz
Use condi­tions
  • Oper­ating temper­ature
    -15 - 45 °C
Connec­tion
  • Cross-sec­tion flex­ible conductor
    0.5 - 1.5 mm²
  • Cross-sec­tion rigid conductor
    0.5 - 2.5 mm²
Equip­ment
  • Number of outputs
    1
  • Type of dimmer
    Universal
Lighting
  • LED lamp power
    50 W
Capa­city
  • Number of modules
    0
Power
  • Power incan­des­cent lamp
    200 - 200 W
  • Power of vari­ator
    200 - 200 W
Connectivity
  • With bus system KNX radio
    Yes
  • Type of connec­tion
    Screw terminal
Settings
  • Supported config­ur­a­tion mode
    quicklink
Texts
  • Fuse
    Short-­cir­cuit and over­load-­proof (elec­tronic fuse)
  • Dimming prin­ciple
    Phase cut-on or cut-off according to load type, self-learning
  • Func­tion
    Reset func­tion (to factory setting)
  • Type of connec­tion
    With screw-in lift terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration TRM691E
PDF
Hager RoHS report TRM691E
PDF

Downloads

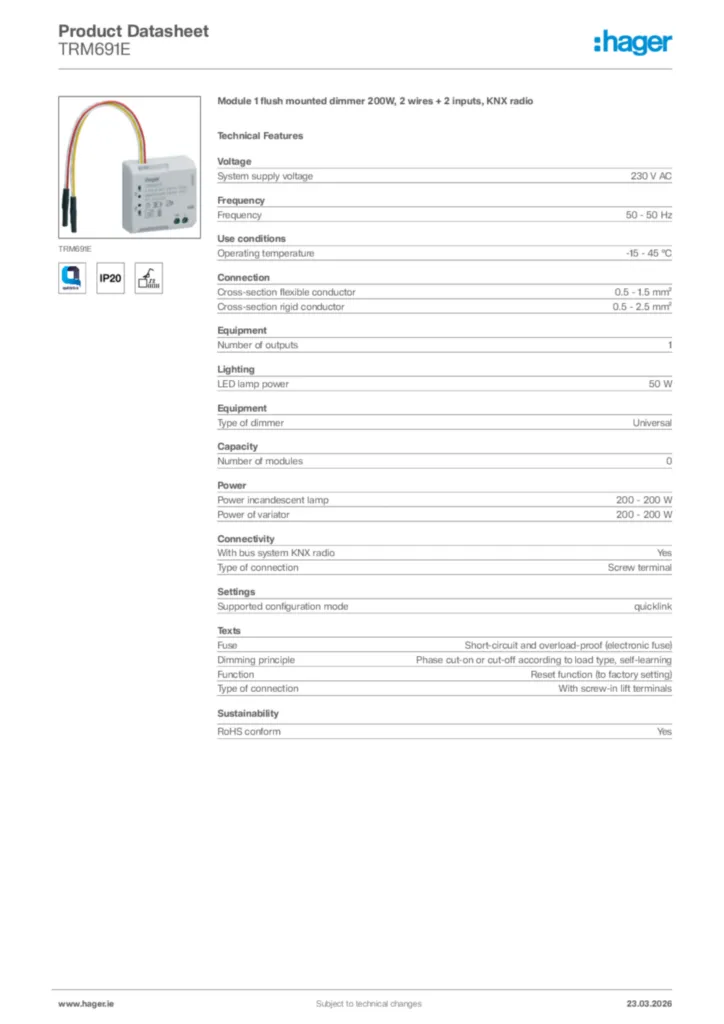

  • Product image

    Image TRM691E | Hager

    Product Image TRM691E

  • Declaration of conformity

    Image Declaration of conformity International 2022-10-04 | Hager

    Declaration of conformity International 2022-10-04

    PDF
    114,06 kB
    Image Declaration of conformity International 2022-10-04 | Hager

    Declaration of conformity International 2022-10-04

    PDF
    146,08 kB
