Module 1 flush mounted output 200W, 2 wires + 2 inputs, KNX radio TRM690G

Phase out product: please contact your electrical wholesaler for availability

Technical properties
Environmental value
Documentations

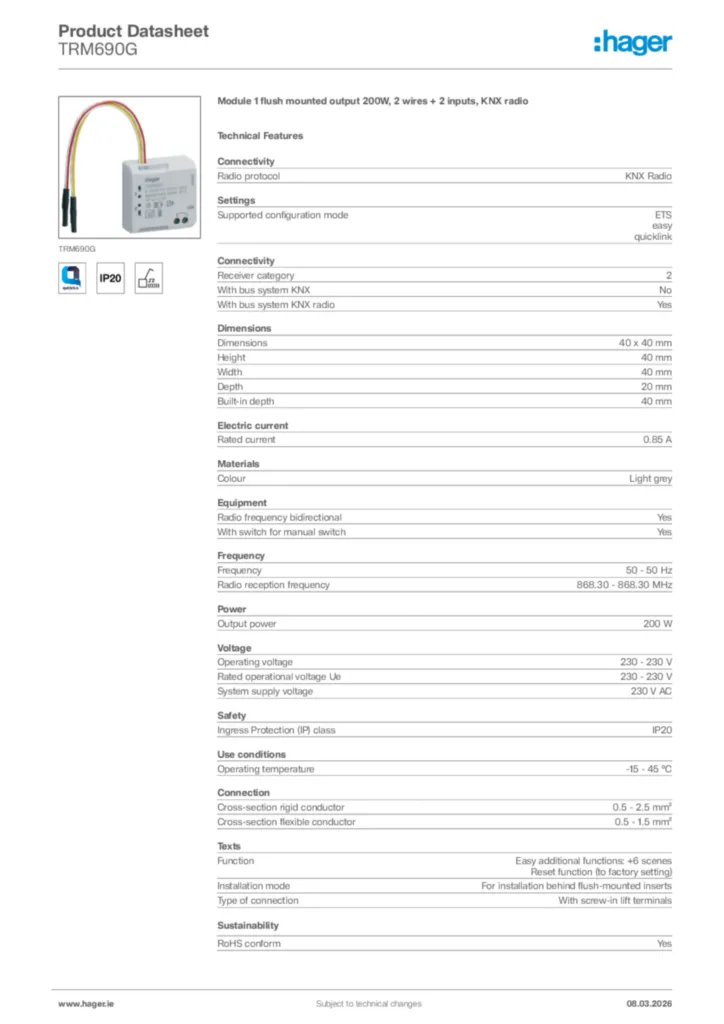

Download the data sheet

Technical properties

Radio protocol

KNX Radio
Receiver category

2
With bus system KNX

No
With bus system KNX radio

Yes

Supported configuration mode

ETS, easy, quicklink

Height

40 mm
Width

40 mm
Depth

20 mm
Built-in depth

40 mm

Colour

Light grey

Radio frequency bidirectional

Yes
With switch for manual switch

Yes

Rated current

0.85 A

Frequency

50 - 50 Hz
Radio reception frequency

868.30 - 868.30 MHz

Output power

200 W

Operating voltage

230 - 230 V
Rated operational voltage Ue

230 - 230 V
System supply voltage

230 V AC

Ingress Protection (IP) class

IP20

Operating temperature

-15 - 45 °C

Cross-section rigid conductor

0.5 - 2.5 mm²
Cross-section flexible conductor

0.5 - 1.5 mm²

Function

Easy additional functions: +6 scenes, Reset function (to factory setting)
Installation mode

For installation behind flush-mounted inserts
Type of connection

With screw-in lift terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
