Control for latching relay, timer KNX radio TRM600

EAN
3250615989086
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Control for latching relay, timer KNX radio

TRM600

  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Technical properties

Connectivity
  • Radio protocol
    KNX Radio
  • Receiver category
    2
  • With bus system KNX
    No
  • With bus system KNX radio
    Yes
Settings
  • Supported config­ur­a­tion mode
    ETS, easy
Dimen­sions
  • Height
    18 mm
  • Width
    40 mm
  • Depth
    18 mm
  • Built-in depth
    20 mm
Mater­ials
  • Colour
    Light grey
Equip­ment
  • Radio frequency bidirec­tional
    Yes
  • With switch for manual switch
    Yes
Elec­tric current
  • Rated current
    0.50 A
Frequency
  • Frequency
    50 - 60 Hz
  • Radio recep­tion frequency
    868.30 - 868.30 MHz
Power
  • Output power
    115 W
Voltage
  • Oper­ating voltage
    230 - 230 V
  • Rated oper­a­tional voltage Ue
    230 - 230 V
  • System supply voltage
    230 V AC
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Oper­ating temper­ature
    -15 - 45 °C
Connec­tion
  • Cross-sec­tion rigid conductor
    0.5 - 2.5 mm²
  • Cross-sec­tion flex­ible conductor
    0.5 - 1.5 mm²
Texts
  • Func­tion
    Pulse func­tion only, Reset func­tion (to factory setting)
  • Install­a­tion mode
    For install­a­tion behind flush-­mounted inserts
  • Type of connec­tion
    With screw-in lift terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration TRM600
PDF
Hager RoHS report TRM600
PDF

Downloads

  • Product image

    Image TRM600 | Hager

    Product Image TRM600

  • Product datasheet

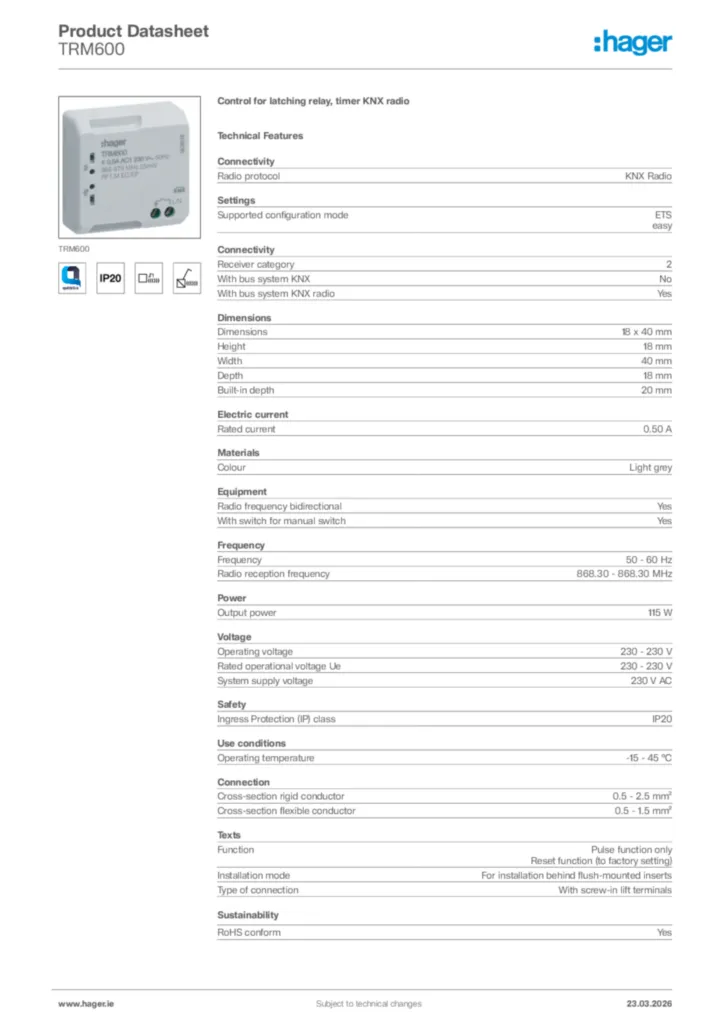

    Image Hager Product data sheet TRM600 | Hager

    Hager Product data sheet TRM600

    Control for latching relay, timer KNX radio

    PDF

  • Declaration of conformity

    Image Eu Declaration of Conformity | Hager

    Eu Declaration of Conformity

    Declaration of conformity en-GB, fr-FR 2024-11-26

    PDF
    119,32 kB
    Image UKCA Declaration of Conformity | Hager

    UKCA Declaration of Conformity

    Declaration of conformity en-GB, fr-FR 2024-12-04

    PDF
    107,08 kB
