Motion detector radio, with battery, IP55, white TRE520
Phase out product: please contact your electrical wholesaler for availability
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Accessories/spare parts for movement sensor 1 product.page.accessories.products-available
catalog.pageproduct.tab_additional_title.link
Dimensions
-
Installation height4 - 4 m
-
Recommended installation height2.50 - 2.50 m
Settings
-
Supported configuration modeETS, easy, quicklink
-
Minimal duty cycle30 s
Functions
-
Maximal duty cycle15 min
Connectivity
-
With bus system KNX radiocatalog.pageproduct.attribute_boolean.yes
Scope of delivery
-
Bus connection includedcatalog.pageproduct.attribute_boolean.yes
Lighting
-
Response brightness adjustable5 - 1,000 lx
Detection
-
Detection angle220 - 220
-
Detection angle horizontal220 - 220
Use conditions
-
Operating temperature-20 - 55 °C
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS), Polycarbonate (PC)
-
ColourWhite
-
RAL code9010
Texts
-
FunctionEasy additional functions: +6 scenes, on/off operating mode, scene call-up upon motion/no motion, Reset function (to factory setting)
-
Installation modeFor wall and ceiling mounting, corner installation with adapter
Reach distance
-
Max. transmission range frontally16 m
-
Max. transmission range sideways10 m
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link
catalog.pageproduct.sustainability_block.downloads_h3
catalog.pageproduct.title_asset.h2
-
Product image
-
GeneratedProductDatasheet

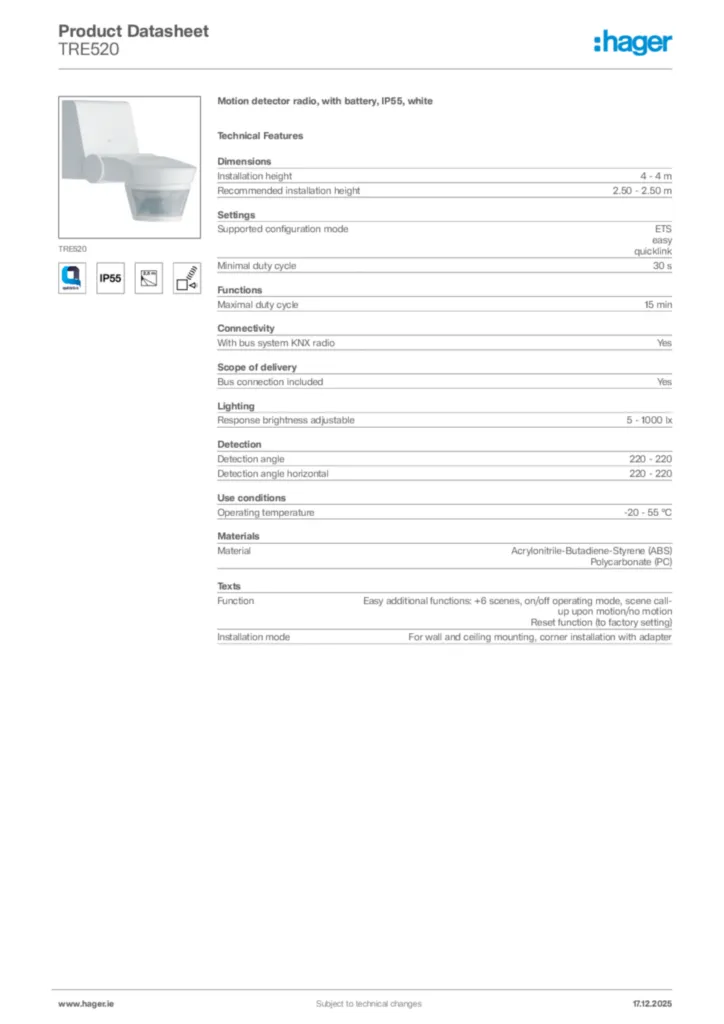

Hager Product data sheet TRE520
Motion detector radio, with battery, IP55, white
PDF -
ProductECDeclaration
EU Declaration of Conformity
Declaration of conformity en-GB 2026-10-23
PDF392,28 kB
