Module 1 input + 1 output, 10A, IP55, KNX radio TRE400
EAN
3250615989253
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Equipment
-
C loadNo
-
Number of channels1
-
Number of outputs1
-
Transmitter duty cycle1 %
-
With switch for manual switchYes
Architecture
-
Number of blinds/shutter outputs0
Connectivity
-
With bus system radio frequentYes
-
Receiver category2
-
Radio protocolKNX Radio
Frequency
-
Radio reception frequency868.30 - 868.30 MHz
Dimensions
-
Height35 mm
-
Length150 mm
-
Width85 mm
Voltage
-
Input voltage5 - 5 V
-
Operating voltage230 - 230 V
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Number of entry circuits1
-
Switching current10 A
-
Rated current10 A
Power
-
Power incandescent lamp1,500 - 1,500 W
Use conditions
-
Operating temperature-10 - 55 °C
Texts
-
Cable clampWith mounting plates and strain reliefs
-
FunctionEasy additional functions: +6 scenes, Repeat function can be activated to increase the radio range, Reset function (to factory setting)
-
Installation modeFor installation behind flush-mounted inserts
-
Type of connectionWith screw-in lift terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

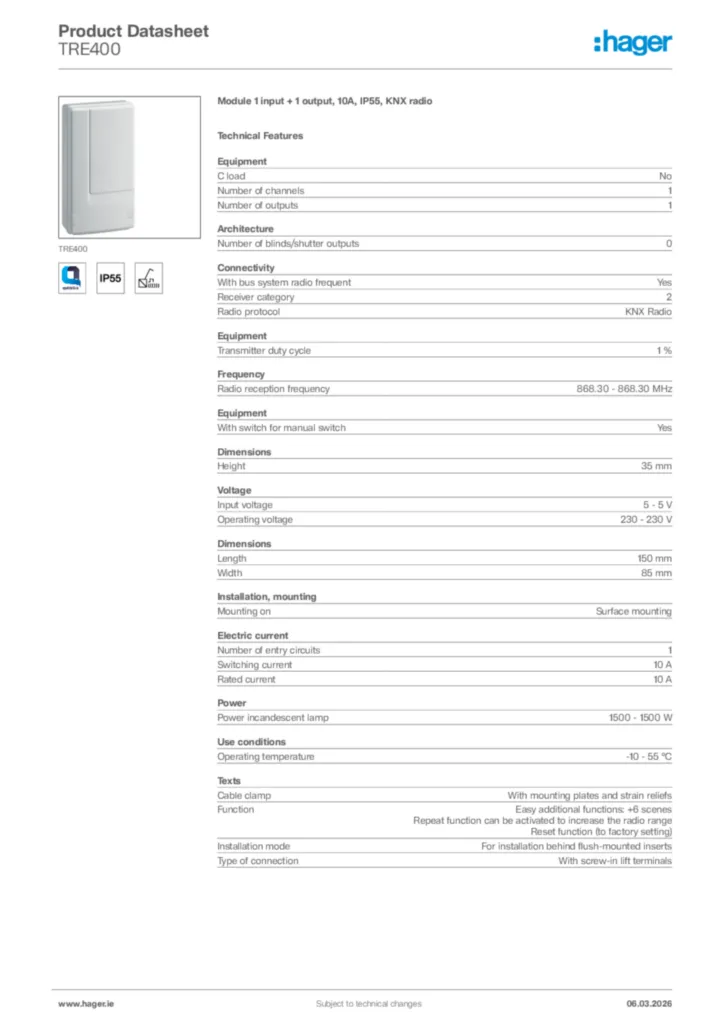

Hager Product data sheet TRE400
Module 1 input + 1 output, 10A, IP55, KNX radio
PDF
