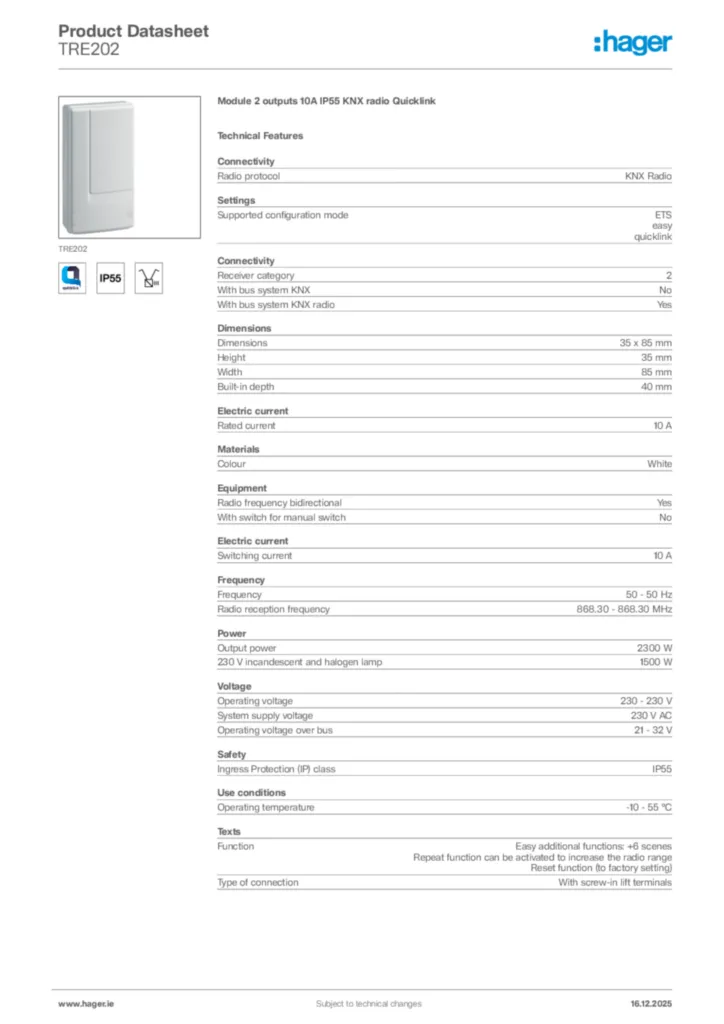

Module 2 outputs 10A IP55 KNX radio Quicklink TRE202
EAN
3250615989338
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.
Technical properties
Connectivity
-
Radio protocolKNX Radio
-
Receiver category2
-
With bus system KNXNo
-
With bus system KNX radioYes
Settings
-
Supported configuration modeETS, easy, quicklink
Dimensions
-
Height35 mm
-
Width85 mm
-
Built-in depth40 mm
Materials
-
ColourWhite
Equipment
-
Radio frequency bidirectionalYes
-
With switch for manual switchNo
Electric current
-
Rated current10 A
-
Switching current10 A
Frequency
-
Frequency50 - 50 Hz
-
Radio reception frequency868.30 - 868.30 MHz
Power
-
Output power2,300 W
-
230 V incandescent and halogen lamp1,500 W
Voltage
-
Operating voltage230 - 230 V
-
System supply voltage230 V AC
-
Operating voltage over bus21 - 32 V
Safety
-
Ingress Protection (IP) classIP55
Use conditions
-
Operating temperature-10 - 55 °C
Texts
-
FunctionEasy additional functions: +6 scenes, Repeat function can be activated to increase the radio range, Reset function (to factory setting)
-
Type of connectionWith screw-in lift terminals
