Module 2 inputs flush mounted 230V KNX QL

TRB302B

Module 2 inputs flush mounted 230V KNX QL TRB302B

EAN
3250615989284
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.


  • Technical properties
  • Environmental value

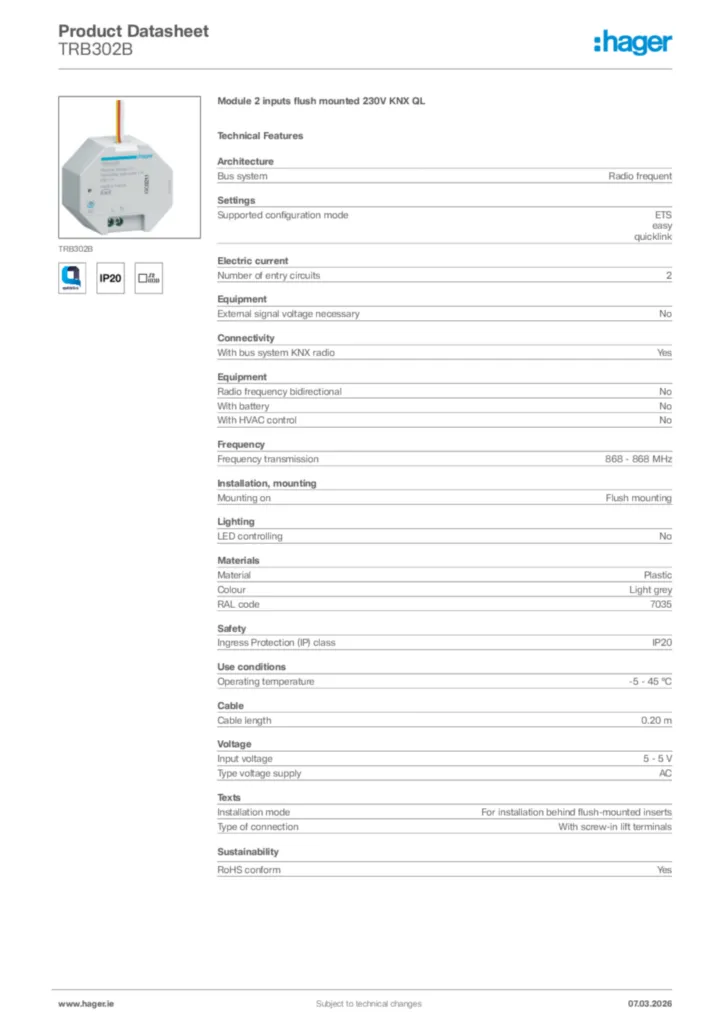

Download the data sheet

Technical properties

Archi­tec­ture
  • Bus system
    Radio frequent
Settings
  • Supported config­ur­a­tion mode
    ETS, easy, quicklink
Elec­tric current
  • Number of entry circuits
    2
Connectivity
  • With bus system KNX radio
    Yes
Equip­ment
  • External signal voltage neces­sary
    No
  • Radio frequency bidirec­tional
    No
  • With battery
    No
  • With HVAC control
    No
Frequency
  • Frequency trans­mis­sion
    868 - 868 MHz
Install­a­tion, mounting
  • Mounting on
    Flush mounting
Internal use only
  • Number of half modules of 17,5 mm
    0
Lighting
  • LED controlling
    No
Mater­ials
  • Material
    Plastic
  • Colour
    Light grey
  • RAL code
    7035
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Oper­ating temper­ature
    -5 - 45 °C
Cable
  • Cable length
    0.20 m
Voltage
  • Input voltage
    5 - 5 V
  • Type voltage supply
    AC
Texts
  • Install­a­tion mode
    For install­a­tion behind flush-­mounted inserts
  • Type of connec­tion
    With screw-in lift terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

REACH declaration TRB302B (english)
PDF
103,10 kB
RoHS declaration TRB302B (english)
PDF
103,84 kB
