Module 1 output 16A flush mounted KNX TRB201

EAN
3250615989314
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.

Module 1 output 16A flush mounted KNX

TRB201

  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Technical properties

Connectivity
  • Radio protocol
    KNX Radio
  • Receiver category
    2
  • With bus system KNX
    No
  • With bus system KNX radio
    Yes
Settings
  • Supported config­ur­a­tion mode
    ETS, easy, quicklink
Dimen­sions
  • Height
    30 mm
  • Built-in depth
    35 mm
Mater­ials
  • Colour
    Light grey
Equip­ment
  • Radio frequency bidirec­tional
    Yes
  • With switch for manual switch
    No
Elec­tric current
  • Rated current
    16 A
  • Switching current
    16 A
Frequency
  • Frequency
    50 - 60 Hz
  • Radio recep­tion frequency
    868.30 - 868.30 MHz
Power
  • Output power
    3,680 W
  • 230 V incan­des­cent and halogen lamp
    2,300 W
Voltage
  • Oper­ating voltage
    230 - 230 V
  • Rated oper­a­tional voltage Ue
    230 - 230 V
  • System supply voltage
    230 V AC
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Oper­ating temper­ature
    0 - 45 °C
Connec­tion
  • Cross-sec­tion rigid conductor
    2.5 mm²
  • Cross-sec­tion flex­ible conductor
    2.5 mm²
Texts
  • Func­tion
    Easy addi­tional func­tions: +6 scenes, repeater func­tion, Reset func­tion (to factory setting)
  • Install­a­tion mode
    For install­a­tion behind flush-­mounted inserts
  • Type of connec­tion
    With screw-in lift terminals

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration TRB201
PDF
Hager RoHS report TRB201
PDF

Downloads

  • Product image

    Image TRB201 | Hager

    Product Image TRB201

  • Product datasheet

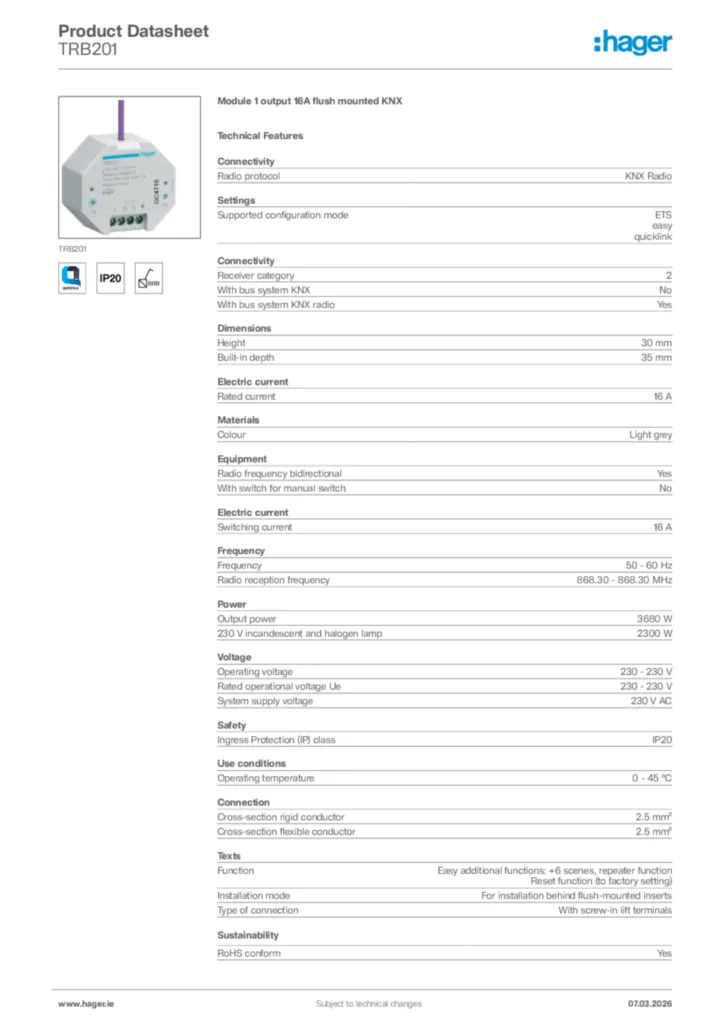

    Image Hager Product data sheet TRB201 | Hager

    Hager Product data sheet TRB201

    Module 1 output 16A flush mounted KNX

    PDF
