Phase out
Domovea basic TJA670
EAN
3250618502237
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.
Complete your system
Optional accessories
-
Signalling and operation panel for bus system 1 products available

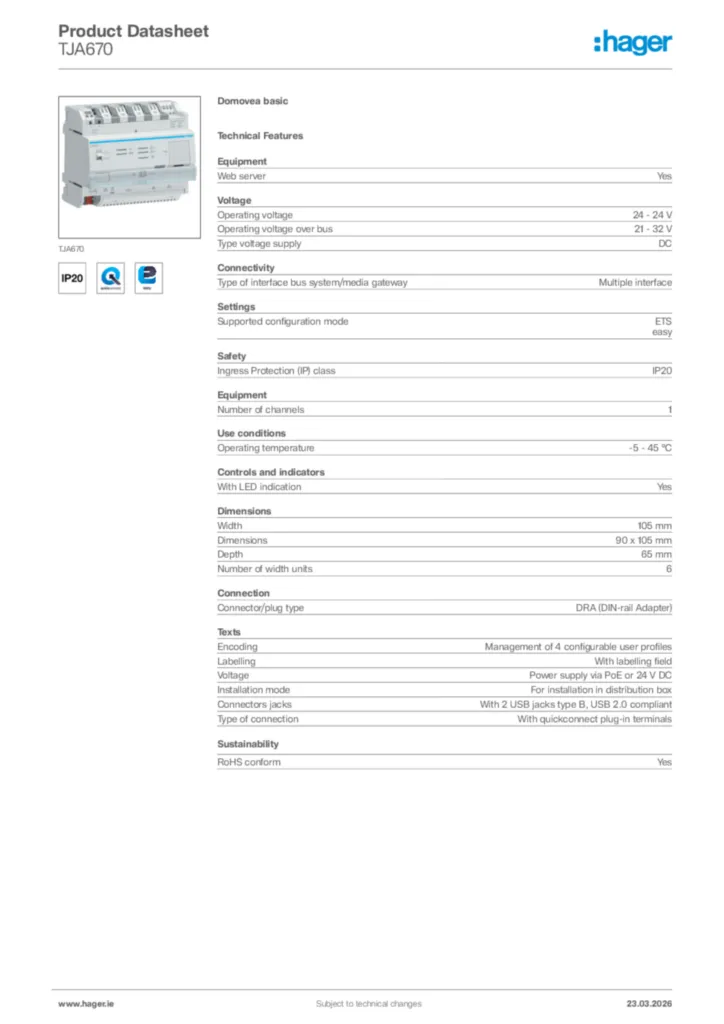

Technical properties
Equipment
-
Web serverYes
-
Number of channels1
Voltage
-
Operating voltage24 - 24 V
-
Operating voltage over bus21 - 32 V
-
Type voltage supplyDC
Connectivity
-
Type of interface bus system/media gatewayMultiple interface
Settings
-
Supported configuration modeETS, easy
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Controls and indicators
-
With LED indicationYes
Dimensions
-
Width105 mm
-
Depth65 mm
-
Number of width units6
Texts
-
EncodingManagement of 4 configurable user profiles
-
Installation modeFor installation in distribution box
-
LabellingWith labelling field
-
Type of connectionWith quickconnect plug-in terminals
-
VoltagePower supply via PoE or 24 V DC
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
Leaflet domovea (EN)
Leaflet TJA470, TJA670 (English, 2023-06-29)
PDF900,23 kB -
Tool
Hager Pilot MacOS
Hager Pilot MacOS 2.1.3
DMG81,72 MB
Hager Pilot Windows
Hager Pilot Windows 2.1.3
EXE132,78 MB
Server Software (TJA470, TJA670, TJA510(N), TJA665)
Server Software 7.1.4
ZIP222,81 MB
domovea Client Android
domovea Client Android 3.11.6
APK85,69 MB
domovea Client MacOS
domovea Client MacOS 3.11.6
DMG174,35 MB
domovea Client Windows
domovea Client Windows 3.11.6
EXE270,17 MB -
KNX product database
ETS product database (Dummy application)
KNX product database International 2024-03-11
KNXPROD90,49 kB
ETS product database for TJA670
KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2024-03-11
KNXPROD83,40 kB -
Handbook
Installation manual domovea (EN)
Installation manual domovea TJA470, TJA670 (English, 2023-11-16)
PDF1,75 MB -
Declaration of conformity
Declaration of conformity International 2022-11-02
PDF144,52 kB
More documentation
