Safety transformer 25VA 230V/12-24V ST312

EAN
3250615703125
Packaging
1 Piece
Phase out product: please contact your electrical wholesaler for availability

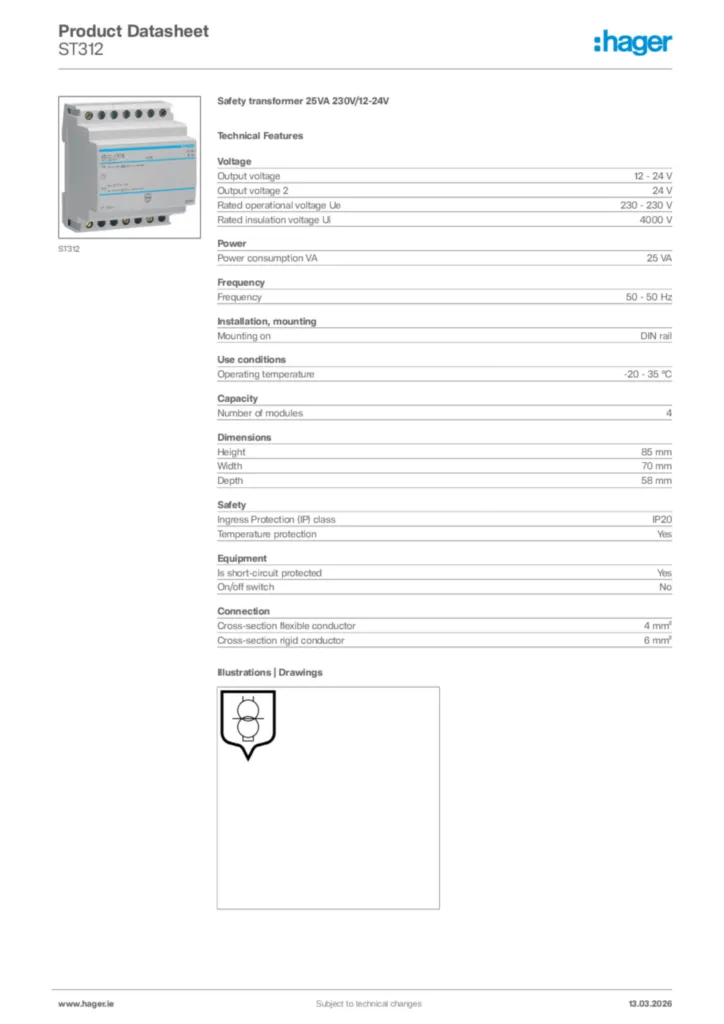

Download the data sheet

Technical properties

Voltage
  • Output voltage
    12 - 24 V
  • Output voltage 2
    24 V
  • Rated oper­a­tional voltage Ue
    230 - 230 V
  • Rated insu­la­tion voltage Ui
    4,000 V
Power
  • Power consump­tion VA
    25 VA
Frequency
  • Frequency
    50 - 50 Hz
Capa­city
  • Number of modules
    4
Dimen­sions
  • Height
    85 mm
  • Width
    70 mm
  • Depth
    58 mm
Safety
  • Ingress Protec­tion (IP) class
    IP20
  • Temper­ature protec­tion
    Yes
Equip­ment
  • Is short-­cir­cuit protected
    Yes
  • On/off switch
    No
Connec­tion
  • Cross-sec­tion flex­ible conductor
    4 mm²
  • Cross-sec­tion rigid conductor
    6 mm²

Downloads

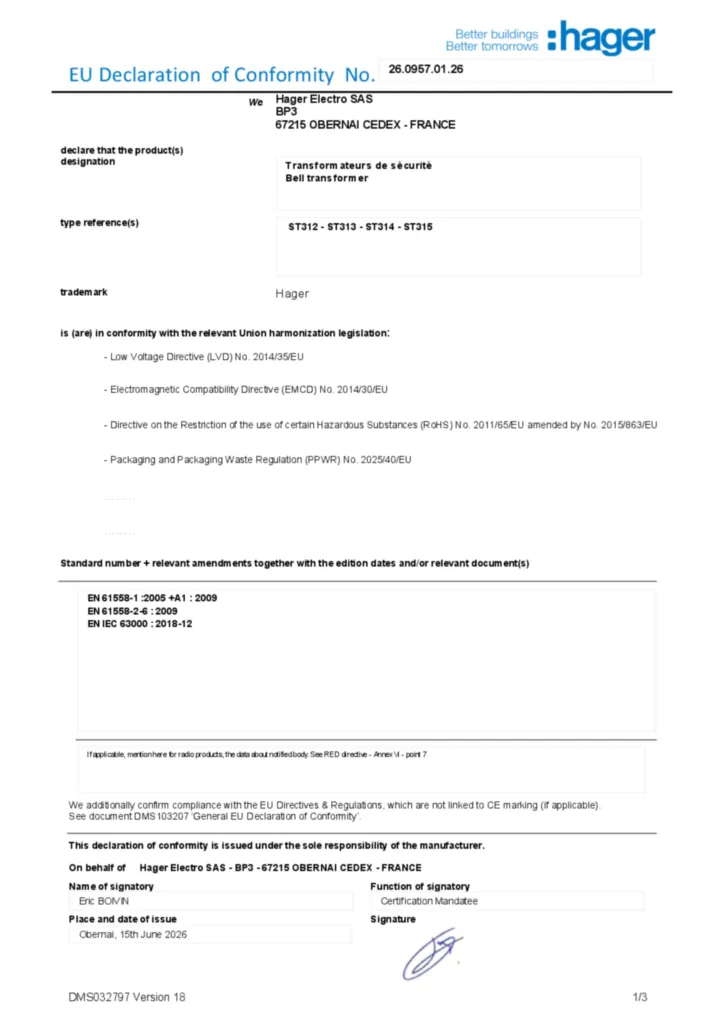

More documentation
