Safety Transformer 20VA 12V ST309

EAN
3250615512239
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Safety Transformer 20VA 12V

ST309

  • Technical properties
  • Documentations
  • More products
Download the data sheet

Technical properties

Voltage
  • Output voltage
    12 - 12 V
  • Output voltage 2
    12 V
  • Rated oper­a­tional voltage Ue
    230 - 230 V
  • Rated insu­la­tion voltage Ui
    4,000 V
Power
  • Power consump­tion VA
    20 VA
Frequency
  • Frequency
    50 - 50 Hz
Capa­city
  • Number of modules
    4
Dimen­sions
  • Height
    85 mm
  • Width
    70 mm
  • Depth
    58 mm
Safety
  • Ingress Protec­tion (IP) class
    IP20
  • Temper­ature protec­tion
    Yes
Equip­ment
  • Is short-­cir­cuit protected
    Yes
  • On/off switch
    No
Connec­tion
  • Cross-sec­tion flex­ible conductor
    4 mm²
  • Cross-sec­tion rigid conductor
    6 mm²

Downloads

  • Product image

    Image ST309 | Hager

    Product Image ST309

  • Product datasheet

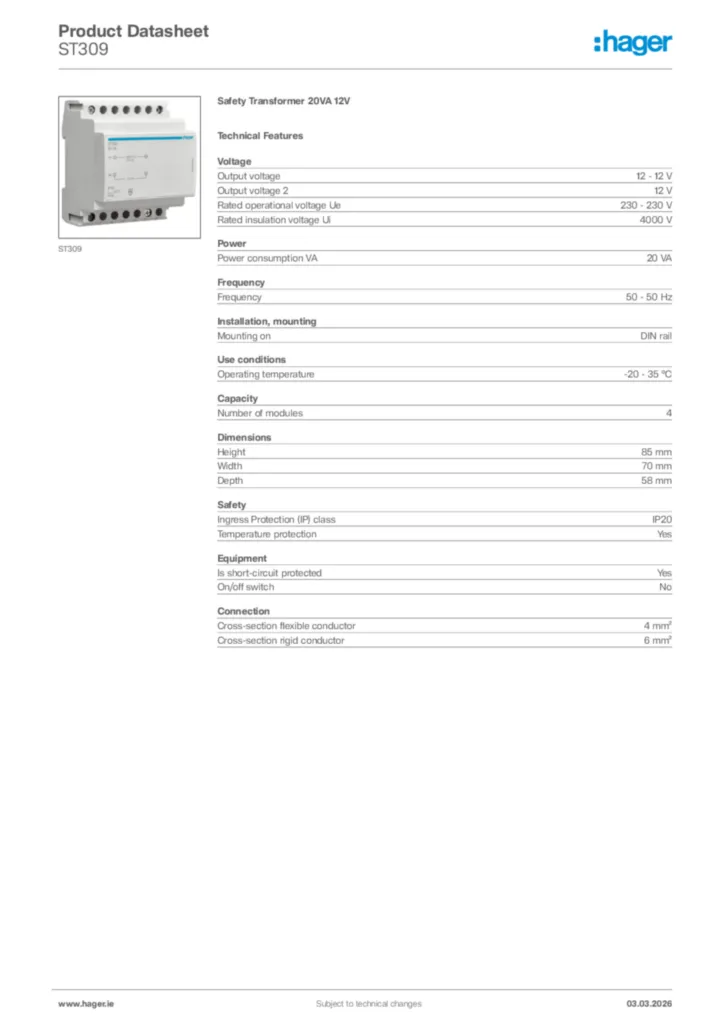

    Image Hager Product data sheet ST309 | Hager

    Hager Product data sheet ST309

    Safety Transformer 20VA 12V

    PDF
