    • SPN715D
    EAN
    3250615662774
    Packaging
    1 Piece

    SPD 2P auto-protected pluggable 15kA class 2 with end of life indicator SPN715D

    No longer available

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    SPD 2P auto-protected pluggable 15kA class 2 with end of life indicator

    SPN715D

    • Technical properties
    • Documentations
    Download the data sheet

    Technical properties

    Capa­city
    • Number of modules
      2
    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 230 V
    • Continuous oper­ating voltage Uc according to IEC 61643-1
      275 V
    • Voltage protec­tion level Up according to IEC 61643-1
      1.5 kV
    • Mode of protec­tion design
      Voltage-switching and voltage-lim­iting compon­ents connected in series
    • Voltage protec­tion level Up N-PE IEC 61643-11
      1,500 V
    • Voltage protec­tion level Up L-N (PEN)
      1 kV
    • Type voltage supply
      AC
    Elec­tric current
    • Max. discharge current (Imax) L-N (PEN)
      15 kA
    • Max. discharge current (Imax) N-PE
      40 kA
    • Nominal discharge current In
      20 kA
    • Follow current inter­rupting rating
      0.1 kA
    • Residual current Ipe
      < 5 μA
    Dimen­sions
    • Height
      82 mm
    • Width
      44 mm
    • Depth
      103 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    • TOV beha­viour at UT (N-PE)
      1200 V AC (200 ms / with­stand mode)
    • Mode of protec­tion
      L-N, N-PE
    • TOV beha­viour at UT (L-N)
      350 V AC (5 s / with­stand mode)
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 55 °C
    • Air humidity protec­tion
      5 - 95%
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Max. alti­tude
      2,000 m
    Mater­ials
    • Product colour
      Light grey
    • RAL code
      7035
    • Material
      Ther­mo­plastic
    Network config­ur­a­tion
    • Network type
      TN, TT
    • Network TN
      Yes
    • Network TN-C
      No
    • Network DC
      No
    • Network IT
      No
    • Network TT
      Yes
    • Network TN-C-S
      No
    • Network TN-S
      No
    Equip­ment
    • With remote signalling contact
      No
    Connec­tion
    • Cross-sec­tion for rigid conductor, for protective conductor
      1.5 - 35 mm²
    • Cross-sec­tion for flex­ible conductor, for protective conductor
      1.5 - 25 mm²
    • Cross-sec­tion flex­ible conductor
      1.5 - 25 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 35 mm²
    • Connect­or/plug type
      Screw terminal
    • Number of connec­tions
      1
    Stand­ards
    • Require­ment class IEC 61643
      T2
    Frequency
    • Frequency
      50 - 60 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque
      3.60 - 3.60 Nm
    • Suit­able for indoor usage
      Yes
    Archi­tec­ture
    • Type of pole
      1P+N
    • Neutral posi­tion
      Left
    Connectivity
    • Mounting type
      DIN rail
    • Type of connec­tion
      Screw connec­tion
    Controls and indic­ators
    • With indic­ator lamp
      Yes
    Func­tions
    • Discon­nector indic­a­tion
      Optical
    Internal use only
    • Number of half modules of 17,5 mm
      4
    Specific iden­ti­ficaton attrib­utes for Protec­tion
    • Filter Type product
      SPD

    Downloads

    • Product image

      Image SPN715D | Hager

      Product Image SPN715D

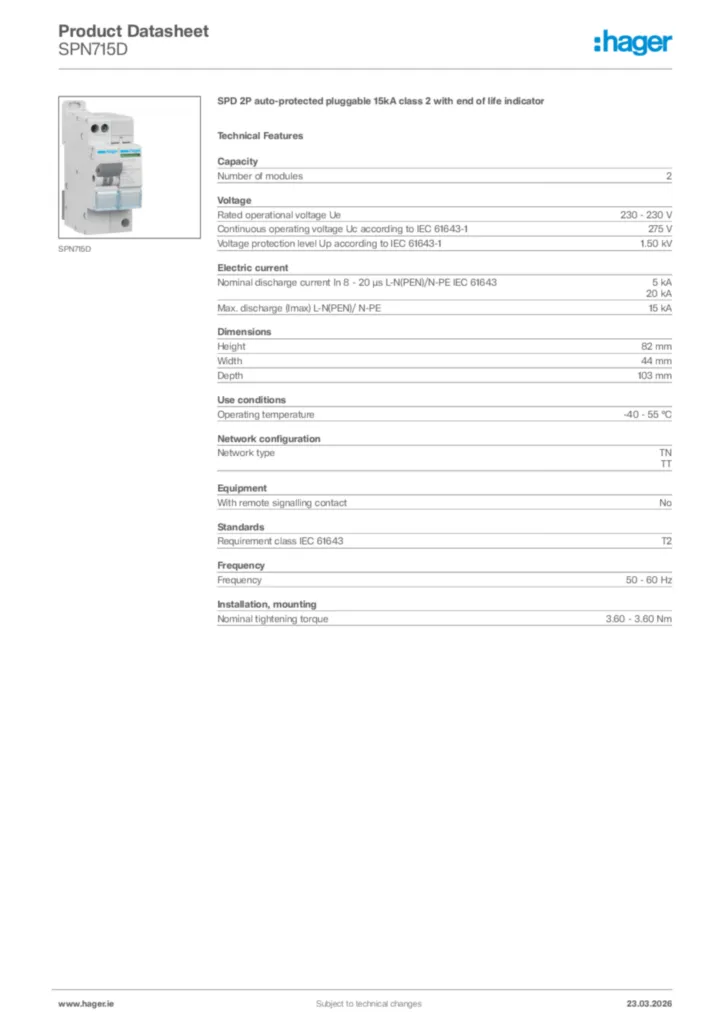

    • Product datasheet

      Image Hager Product data sheet SPN715D | Hager

      Hager Product data sheet SPN715D

      SPD 2P auto-protected pluggable 15kA class 2 with end of life indicator

      PDF

    • Declaration of conformity

      Image Parafoudres | Hager

      Parafoudres

      PDF
      158,38 kB
