Surge protection for VDSL DIN-Rail SPK603
EAN
3250615515087
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.
Technical properties
Installation, mounting
-
Mounting onDIN rail
-
Nominal tightening torque0.22 - 0.22 Nm
Standards
-
Requirement class IEC 61643C1, C2, C3, D1, B2
Voltage
-
Continuous operating voltage Uc according to IEC 61643-1130 V
-
Voltage protection level Up according to IEC 61643-10.25 kV
Electric current
-
Nominal discharge current In 8 - 20 µs C2 IEC 616435 kA
-
Max. discharge (Imax) L-N(PEN)/ N-PE10 kA
Dimensions
-
Height102 mm
-
Width25 mm
-
Depth63.5 mm
Use conditions
-
Operating temperature-40 - 85 °C
Equipment
-
With remote signalling contactNo
Connection
-
Cross-section of input and output with screws, for flexible conductors0.14 - 1.5 mm²
-
Cross-section of input and output with screws, for massive conductors0.14 - 1.5 mm²
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

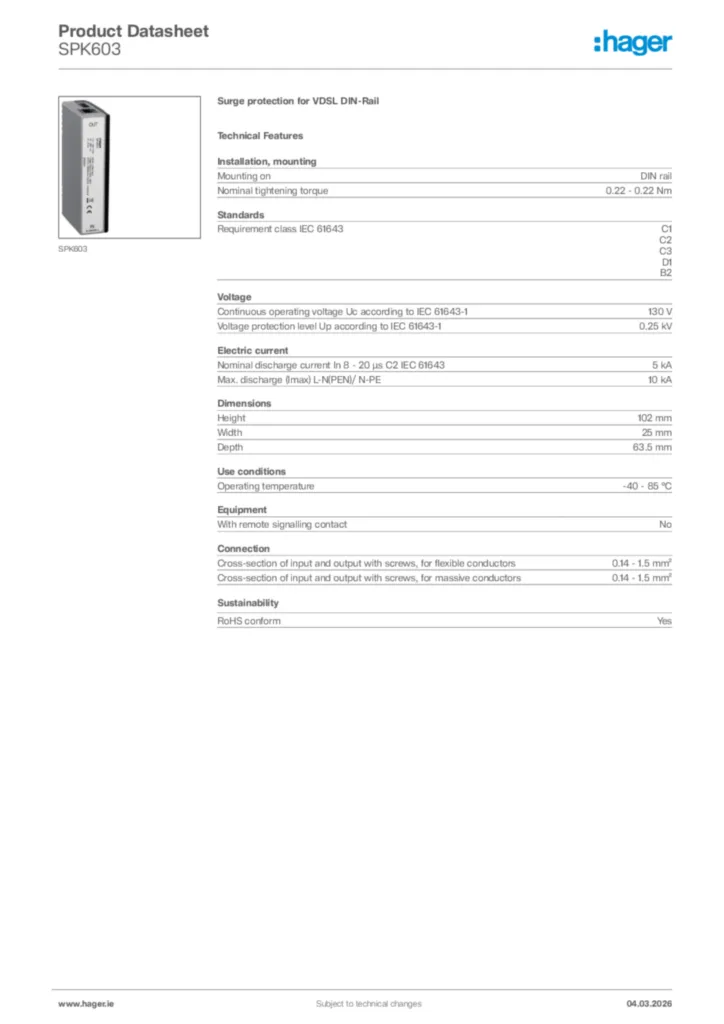

Hager Product data sheet SPK603
Surge protection for VDSL DIN-Rail
PDF
More documentation
