Surge protection for ADSL DIN-Rail SPK602
EAN
3250615515070
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical properties
Installation, mounting
-
Mounting onDIN rail
-
Nominal tightening torque0.5 - 0.5 Nm
Standards
-
Requirement class IEC 61643C1, C2, C3, D1, B2
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue130 - 130 V
-
Continuous operating voltage Uc according to IEC 61643-1185 V
-
Voltage protection level Up according to IEC 61643-10.30 kV
Electric current
-
Nominal discharge current In 8 - 20 µs C2 IEC 6164310 kA
-
Lightning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE1 kA
-
Max. discharge (Imax) L-N(PEN)/ N-PE10 kA
Dimensions
-
Height90 mm
-
Width17.70 mm
-
Depth65.5 mm
Use conditions
-
Operating temperature-40 - 85 °C
Equipment
-
With remote signalling contactYes
Connection
-
Cross-section of input and output with screws, for flexible conductors0.2 - 2.5 mm²
-
Cross-section of input and output with screws, for massive conductors0.2 - 4 mm²
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

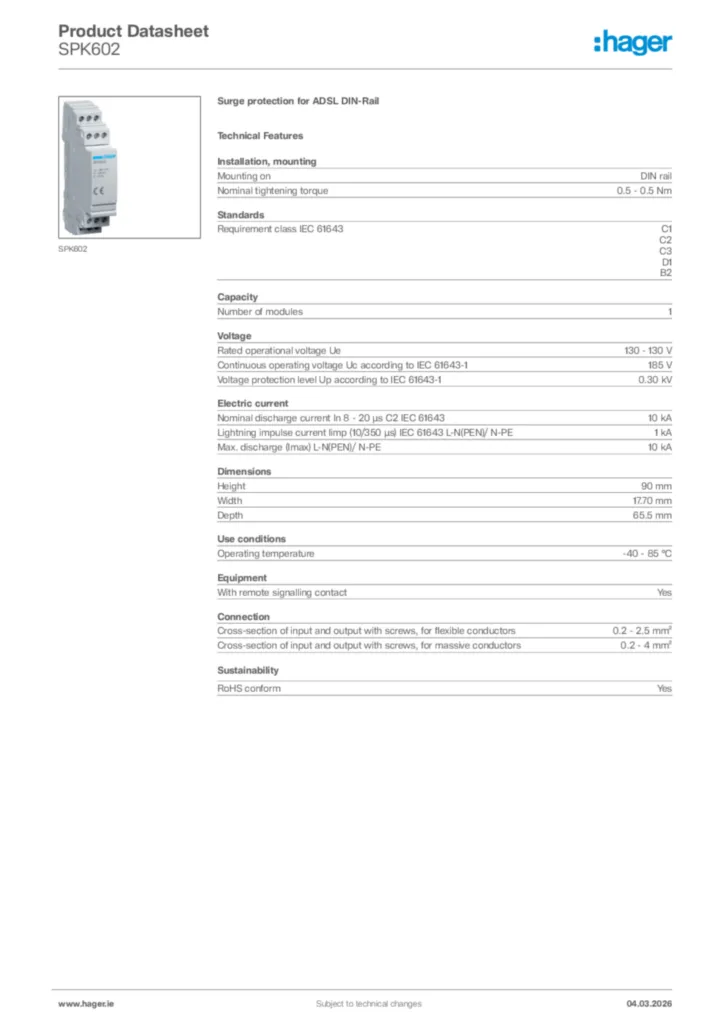

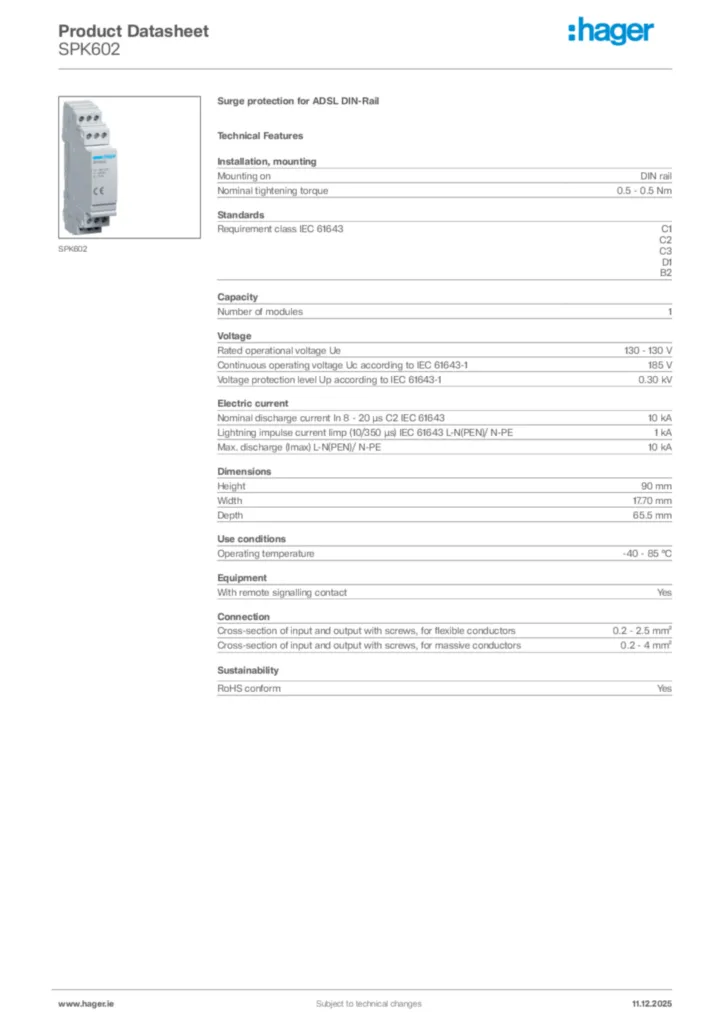

Hager Product data sheet SPK602
