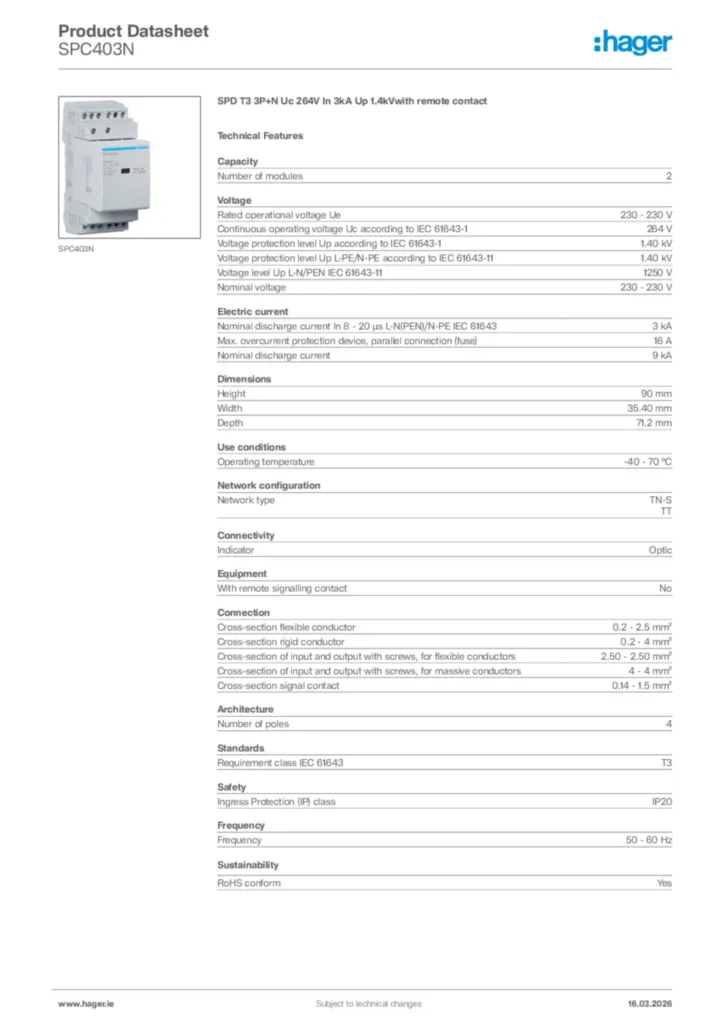

SPD T3 3P+N Uc 264V In 3kA Up 1.4kVwith remote contact SPC403N
EAN
3250615514943
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Capacity
-
Number of modules2
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Continuous operating voltage Uc according to IEC 61643-1264 V
-
Voltage protection level Up according to IEC 61643-11.40 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111.40 kV
-
Voltage level Up L-N/PEN IEC 61643-111,250 V
-
Nominal voltage230 - 230 V
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 616433 kA
-
Max. overcurrent protection device, parallel connection (fuse)16 A
-
Nominal discharge current9 kA
Dimensions
-
Height90 mm
-
Width35.40 mm
-
Depth71.2 mm
Use conditions
-
Operating temperature-40 - 70 °C
Network configuration
-
Network typeTN-S, TT
Connectivity
-
IndicatorOptic
Equipment
-
With remote signalling contactNo
Connection
-
Cross-section flexible conductor0.2 - 2.5 mm²
-
Cross-section rigid conductor0.2 - 4 mm²
-
Cross-section of input and output with screws, for flexible conductors2.50 - 2.50 mm²
-
Cross-section of input and output with screws, for massive conductors4 - 4 mm²
-
Cross-section signal contact0.14 - 1.5 mm²
Architecture
-
Number of poles4
Standards
-
Requirement class IEC 61643T3
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 60 Hz
