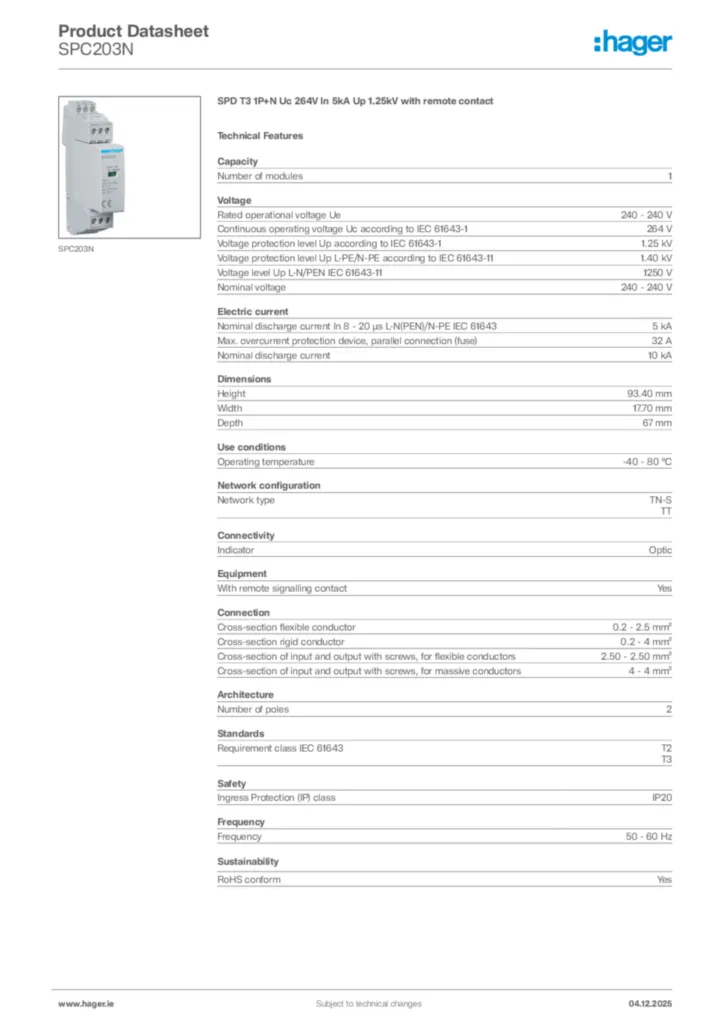

SPD T3 1P+N Uc 264V In 5kA Up 1.25kV with remote contact SPC203N
EAN
3250615514936
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Capacity
-
Number of modules1
Voltage
-
Rated operational voltage Ue240 - 240 V
-
Continuous operating voltage Uc according to IEC 61643-1264 V
-
Voltage protection level Up according to IEC 61643-11.25 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111.40 kV
-
Voltage level Up L-N/PEN IEC 61643-111,250 V
-
Nominal voltage240 - 240 V
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 616435 kA
-
Max. overcurrent protection device, parallel connection (fuse)32 A
-
Nominal discharge current10 kA
Dimensions
-
Height93.40 mm
-
Width17.70 mm
-
Depth67 mm
Use conditions
-
Operating temperature-40 - 80 °C
Network configuration
-
Network typeTN-S, TT
Connectivity
-
IndicatorOptic
Equipment
-
With remote signalling contactYes
Connection
-
Cross-section flexible conductor0.2 - 2.5 mm²
-
Cross-section rigid conductor0.2 - 4 mm²
-
Cross-section of input and output with screws, for flexible conductors2.50 - 2.50 mm²
-
Cross-section of input and output with screws, for massive conductors4 - 4 mm²
Architecture
-
Number of poles2
Standards
-
Requirement class IEC 61643T2, T3
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 60 Hz
