    • SPA401
    EAN
    3250615662040
    Packaging
    1 Piece

    SPD 4P monobloc 12.5kA class 1 with light indicator TT + TNS SPA401

    Phase out product: please contact your electrical wholesaler for availability

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    SPD 4P monobloc 12.5kA class 1 with light indicator TT + TNS

    SPA401

    • Technical properties
    • Documentations
    Download the data sheet

    Technical properties

    Capa­city
    • Number of modules
      4
    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 400 V
    • Continuous oper­ating voltage Uc according to IEC 61643-1
      255 V
    • Voltage protec­tion level Up according to IEC 61643-1
      1.50 kV
    • Voltage protec­tion level Up N-PE IEC 61643-11
      1,500 V
    • Voltage protec­tion level Up L-N (PEN)
      1.5 kV
    • Voltage level Up L-N/PEN IEC 61643-11
      1.5 kV
    • Type voltage supply
      AC
    Elec­tric current
    • Max. over­cur­rent protec­tion device, parallel connec­tion (fuse)
      160 A
    • Nominal discharge current In 8 - 20 µs L-N (PEN)
      12.5 kA
    • Nominal discharge current In 8 - 20 µs N-PE
      50 kA
    • Follow current inter­rupting rating
      0.1 kA
    Dimen­sions
    • Height
      90 mm
    • Width
      144 mm
    • Depth
      68 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    • Protec­tion class
      Isol­a­tion class II
    • TOV beha­viour at UT (N-PE)
      1200 V AC (200 ms / with­stand mode)
    • Mode of protec­tion
      L-N, N-PE
    • TOV beha­viour at UT (L-N)
      460 V AC (120 min / safe failure mode)
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 80 °C
    • Air humidity protec­tion
      5 - 95%
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Max. alti­tude
      2,000 m
    Mater­ials
    • Product colour
      Light grey
    • RAL code
      7035
    • Material
      Ther­mo­plastic
    Network config­ur­a­tion
    • Network type
      TN-S, TT
    • Network TN
      No
    • Network TN-C
      No
    • Network DC
      No
    • Network IT
      No
    • Network TT
      Yes
    • Network TN-C-S
      No
    • Network TN-S
      Yes
    Equip­ment
    • With remote signalling contact
      No
    Connec­tion
    • Cross-sec­tion for rigid conductor, for protective conductor
      1.5 - 35.0 mm²
    • Cross-sec­tion for flex­ible conductor, for protective conductor
      1.5 - 25.0 mm²
    • Cross-sec­tion flex­ible conductor
      1.5 - 25 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 35 mm²
    • Number of connec­tions
      1
    Stand­ards
    • Require­ment class IEC 61643
      T1
    Frequency
    • Frequency
      50 - 60 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque
      4 - 4 Nm
    • Suit­able for indoor usage
      Yes
    Archi­tec­ture
    • Type of pole
      3P+N
    • Neutral posi­tion
      Right
    Connectivity
    • Mounting type
      DIN rail
    • Type of connec­tion
      Screw connec­tion
    Controls and indic­ators
    • With indic­ator lamp
      Yes
    Func­tions
    • Discon­nector indic­a­tion
      Optical
    Fuse
    • Fuse char­ac­ter­istics
      gG
    Internal use only
    • Number of half modules of 17,5 mm
      8
    Specific iden­ti­ficaton attrib­utes for Protec­tion
    • Filter Type product
      SPD

    Downloads

    • Product image

      Image SPA401 | Hager

      Product Image SPA401

    • Product datasheet

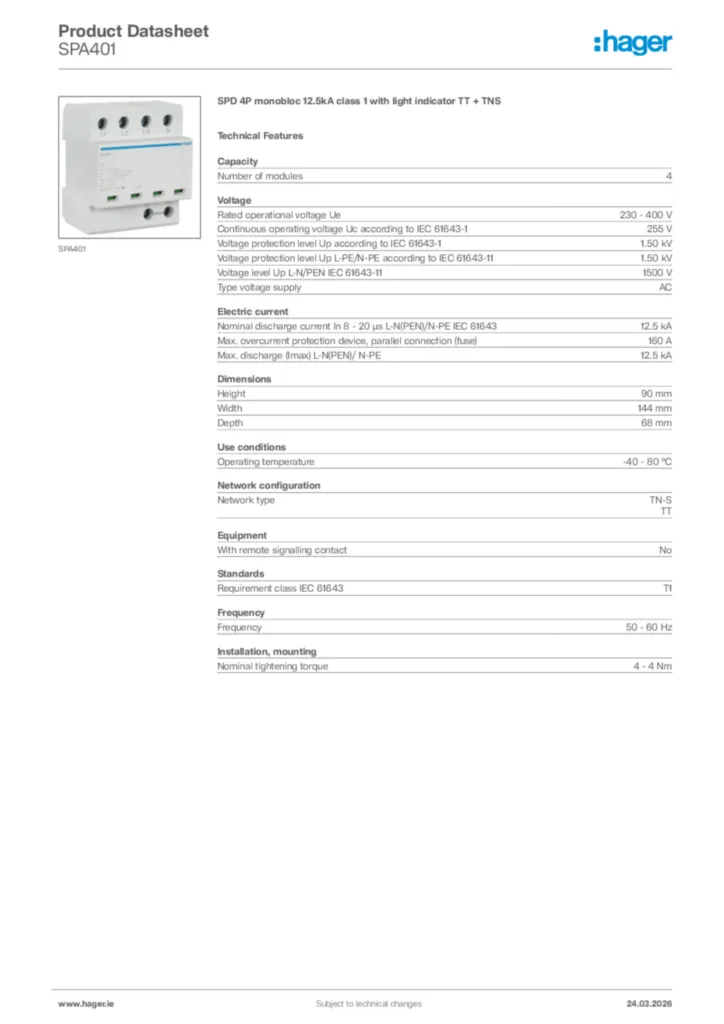

      Image Hager Product data sheet SPA401 | Hager

      Hager Product data sheet SPA401

      SPD 4P monobloc 12.5kA class 1 with light indicator TT + TNS

      PDF

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-03-22

      PDF
      914,98 kB
