Switch DC 4P 1000V 32A

SB432PV

  • Modular devices
  • Switching and protective devices

Switch DC 4P 1000V 32A SB432PV

EAN
3250615521392
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Technical properties
  • Environmental value
  • Documentations
  • More products

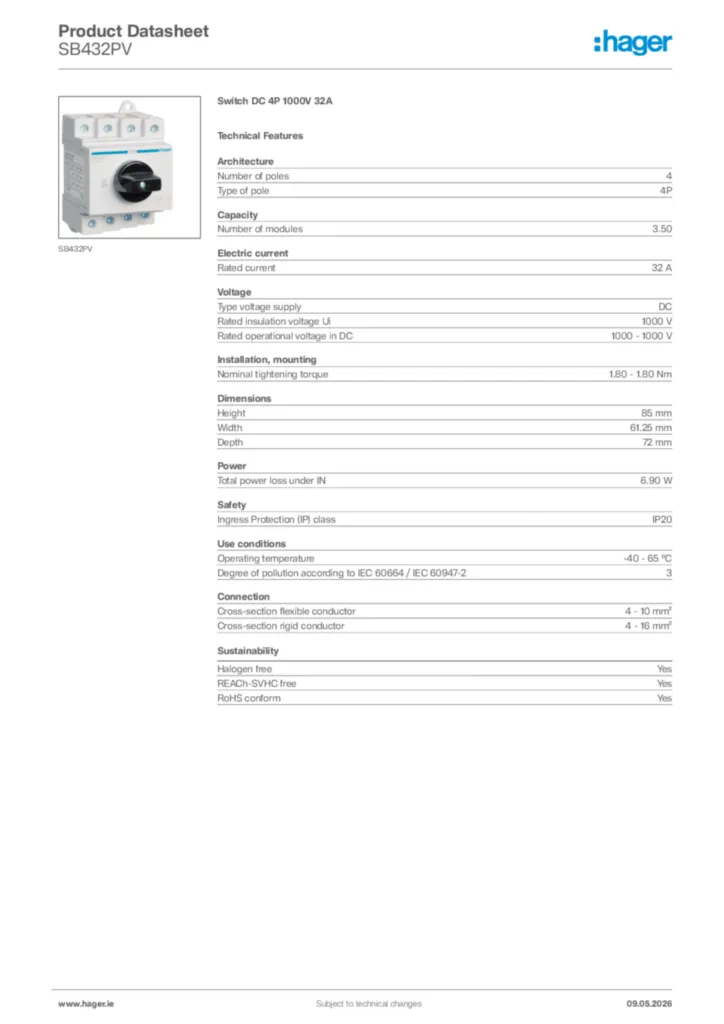

Download the data sheet

Technical properties

Elec­tric current
  • Rated current
    32 A
Archi­tec­ture
  • Type of pole
    4P
  • Control/­op­er­a­tion element
    Short rotary handle
  • Neutral posi­tion
    Without neutral
  • Number of poles
    4
Connec­tion
  • Cross-sec­tion rigid conductor
    4 - 16 mm²
Voltage
  • Rated insu­la­tion voltage Ui
    1,000 V
  • Rated impulse with­stand voltage Uimp
    8,000 V
  • Rated oper­a­tional voltage Ue
    600 - 600 V
  • Type voltage supply
    DC
Power
  • Power loss per pole at In
    1.70 W
  • Total power loss under IN
    6.90 W
Install­a­tion, mounting
  • Nominal tight­ening torque
    1.80 - 1.80 Nm
Equip­ment
  • Motor drive optional
    No
  • Number of auxil­iary contacts as change-over contact
    0
  • Number of auxil­iary contacts as normally closed contact
    0
  • Number of auxil­iary contacts as normally open contact
    0
  • Seal­able
    Yes
Use condi­tions
  • Oper­ating temper­ature
    -40 - 65 °C
  • Stor­age/trans­port temper­ature
    -50 - 90 °C
Cover, door
  • Inter­lock­able
    No
Safety
  • Ingress Protec­tion (IP) class
    IP20
Connectivity
  • Type of connec­tion
    Screw terminal
Func­tions
  • Is reversing switch
    No
  • Version as emer­gency stop install­a­tion
    No
  • Version as main switch
    No
  • Version as main­ten­ance/ser­vice switch
    Yes
  • Version as safety switch
    No
  • Version as switch discon­nector compact
    Yes
Capa­city
  • Number of modules
    3.50

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

Certifications and documents

REACH declaration SB432PV (english)
PDF
103,10 kB
RoHS declaration SB432PV (english)
PDF
103,59 kB

Downloads

  • Product image

    Image SB432PV | Hager

    Product Image SB432PV

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2021-10-04

    PDF
    910,04 kB
    Image Declaration of conformity for Switch DC 2P & 4P | Hager

    Declaration of conformity for Switch DC 2P & 4P

    Declaration of conformity International 2021-09-17

    PDF
    598,74 kB
