Fuse switch disconnector LT size 1 250A for mounting plate, terminal M10 LT150
EAN
3250614201509
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 1 products available
Technical properties
Electric current
-
Rated current250 A
-
Rated short-time withstand current Icw 1s IEC 609478.60 kA
-
Acceptable current rating AC22 category B250 A
Fuse
-
Fuse sizeNH1
Connection
-
Cross-section flexible conductor6 - 150 mm²
-
Cross-section rigid conductor6 - 150 mm²
Use conditions
-
Operating temperature-25 - 55 °C
Installation, mounting
-
Nominal tightening torque20 - 20 Nm
-
Mounting onMounting plate
Frequency
-
Frequency50 - 60 Hz
Power
-
Total power loss under IN18 W
Endurance
-
Number of mechanical operations1,400
-
Electric endurance in number of cycles200
-
Total service life (mechanical and electrical endurance) IEC 60947-3 Table 41,600
Voltage
-
Rated insulation voltage Ui1,000 V
-
Rated impulse withstand voltage Uimp8,000 V
Safety
-
Ingress Protection (IP) classIP3X
Dimensions
-
Height304 mm
-
Width184 mm
-
Depth110 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

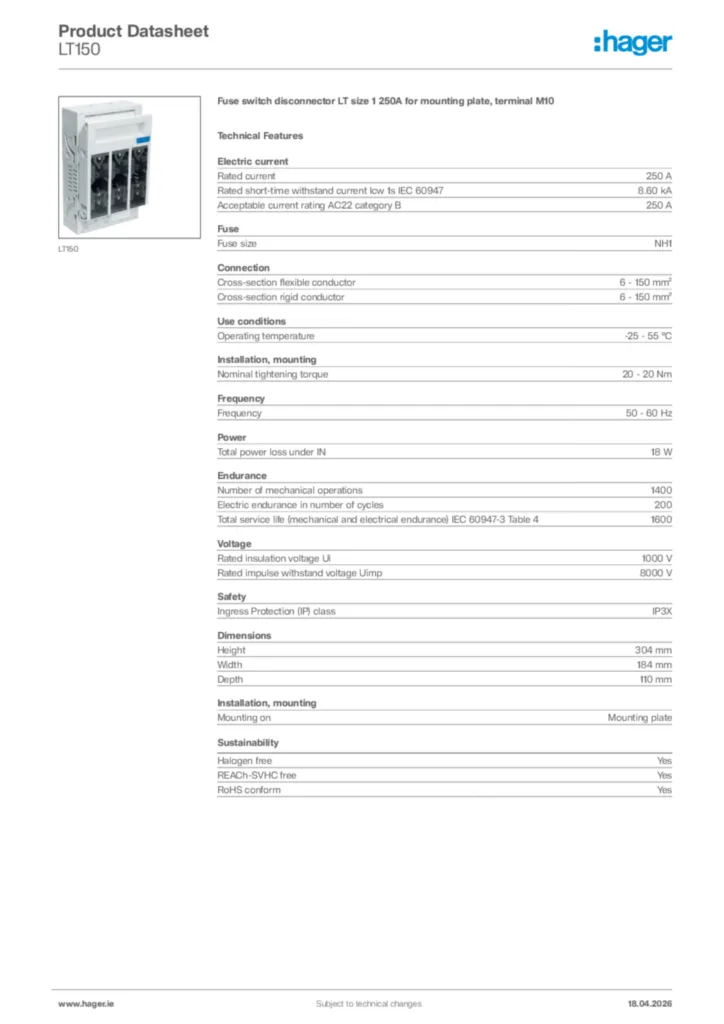

Hager Product data sheet LT150
