Earth terminal, 70mm², screw connection KXB70E
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Labelling material 1 products available
Technical properties
Electric current
-
Rated current0
Power
-
Total power loss under IN1 W
Dimensions
-
Height81.20 mm
-
Width75.20 mm
-
Depth24 mm
Connectivity
-
Type of connectionScrew terminal
Materials
-
MaterialPolyamide (PA)
Installation, mounting
-
Mounting onDIN rail
Connection
-
Cross-section flexible conductor16 - 70 mm²
-
Cross-section rigid conductor16 - 70 mm²
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

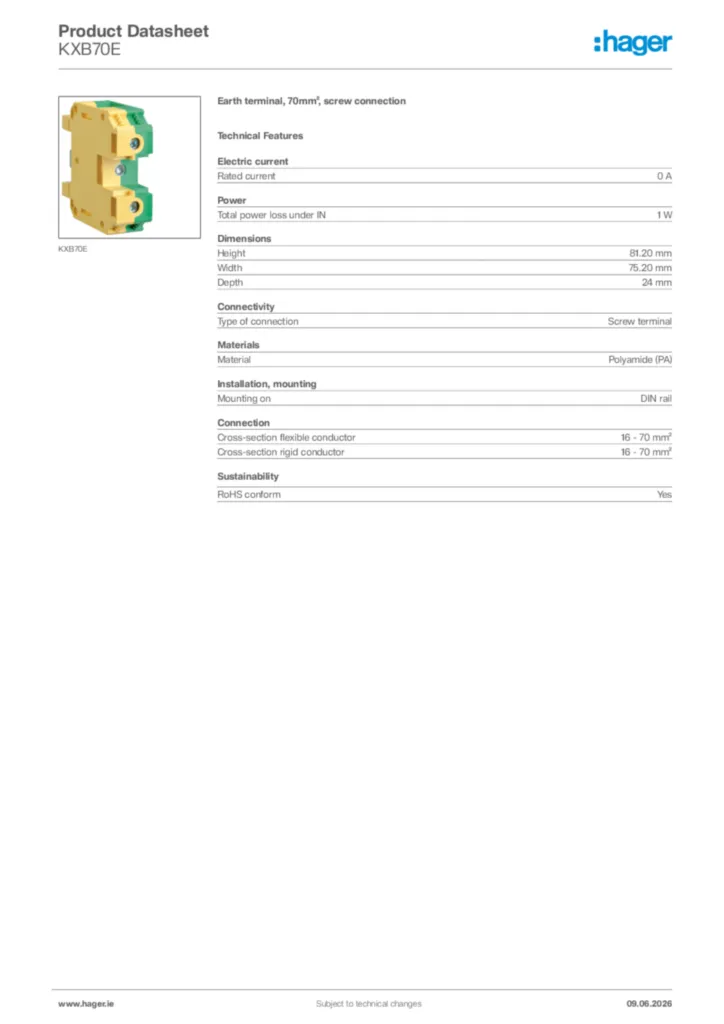

Hager Product data sheet KXB70E
Earth terminal, 70mm², screw connection
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-29
PDF194,57 kB
Declaration
Declaration of conformity International 2022-11-16
PDF265,19 kB
