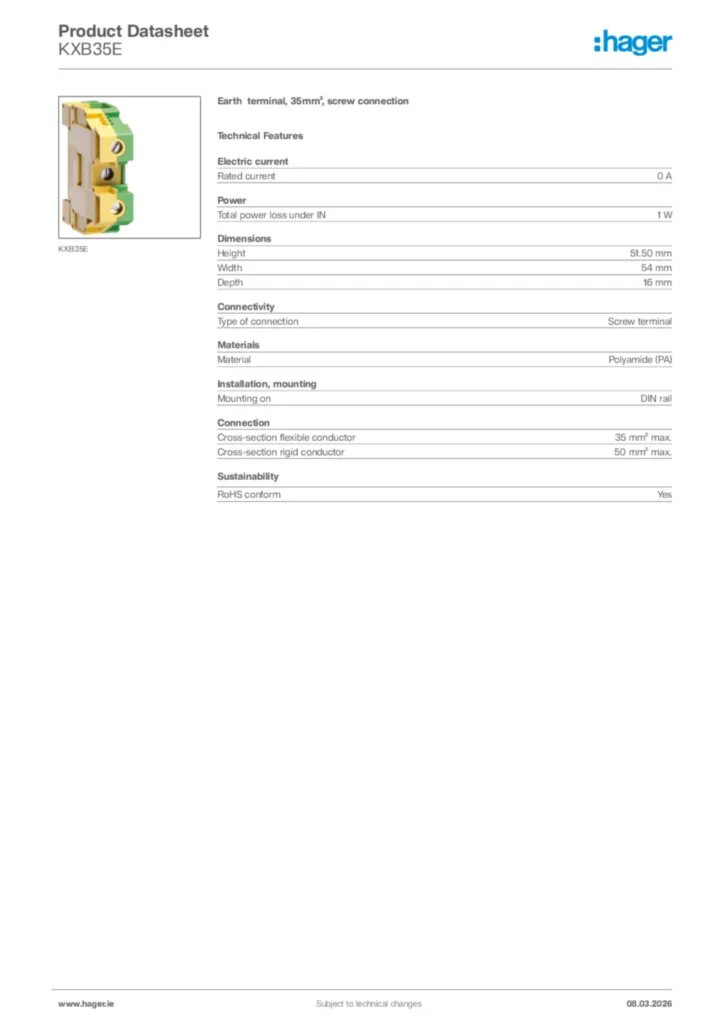

Earth terminal, 35mm², screw connection KXB35E
EAN
3250613941963
Packaging
20 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Component terminal block 1 products available -
Labelling material 1 products available
Technical properties
Electric current
-
Rated current0
Power
-
Total power loss under IN1 W
Dimensions
-
Height51.50 mm
-
Width54 mm
-
Depth16 mm
Connectivity
-
Type of connectionScrew terminal
Materials
-
MaterialPolyamide (PA)
Installation, mounting
-
Mounting onDIN rail
Connection
-
Cross-section flexible conductor35 mm² max.
-
Cross-section rigid conductor50 mm² max.
